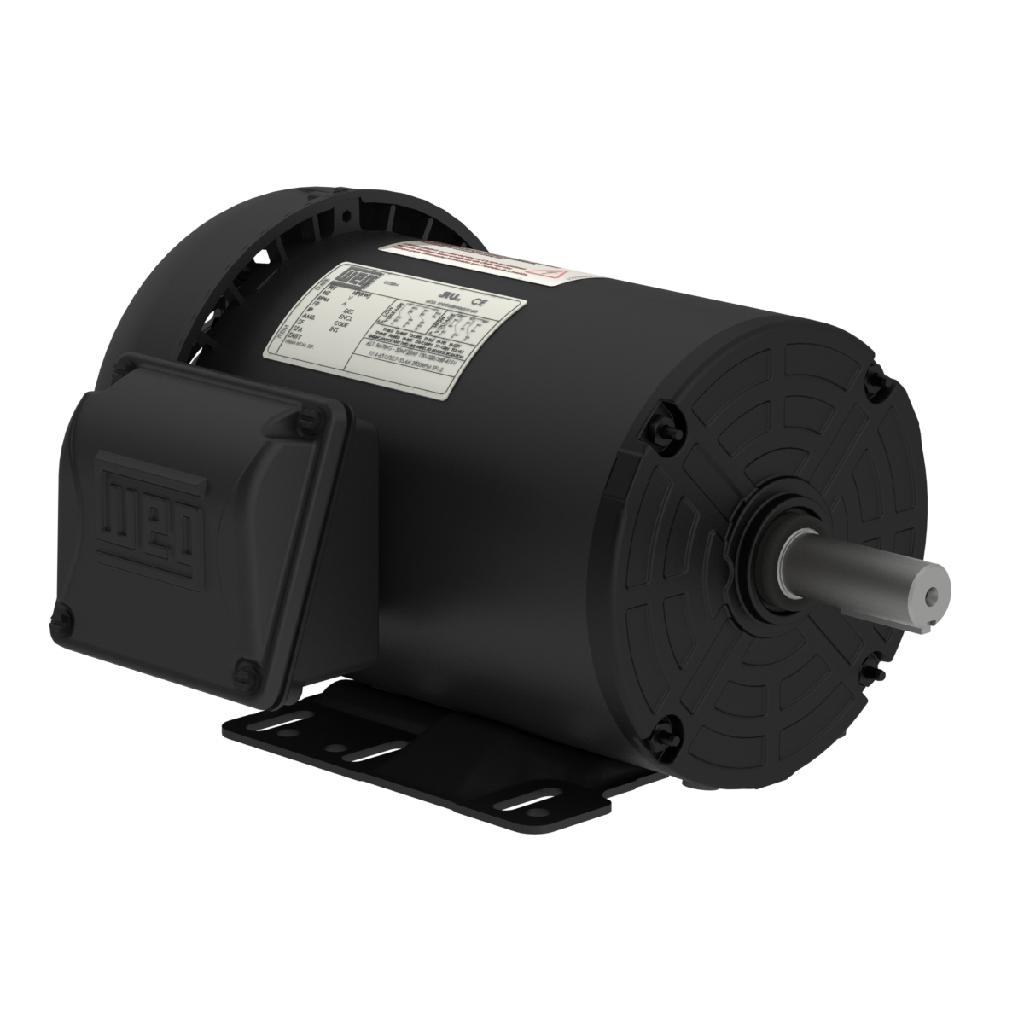

WEG 00136ET3H143T-SG 14480919 Pump Motor, 1 HP, 3600 RPM, 575V, TEFC, 143T, Footed
Get it by Tuesday, Feb 24
€668.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 39 sec. |
| Composition | Steel |
| Connection Cables Quantity | 3 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 83% |
| Efficiency At 50 % | 65% |
| Efficiency At 75 % | 76% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 22 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 8.99A |
| Locked Rotor Torque | 200% |
| Lrc | 7.8X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.0643 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3510 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 0.56A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 78.5 |
| Power Factor At 50 % | 72 |
| Power Factor At 75 % | 77 |
| Rated Current | 1.15A |
| Rated Torque | 1.5 lbs.-ft. |
| Rated Voltage | 575V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Service Factor | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 380-415/460V | 1.25 | 25 hp | 50 Hz | Totally Enclosed Fan Cooled | 29.9A | 3550 RPM | - | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 380-415/460V | 1.25 | 50 hp | 60 Hz | Totally Enclosed Fan Cooled | 59.8A | 3570 RPM | - | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 1.25 | 75 hp | 50/60 Hz | Totally Enclosed Fan Cooled | 80.3A | 3600 RPM | - | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 1.25 | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 1.57A | 3480 RPM | Three Phase | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 1.25 | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.05A | 3475 RPM | Three Phase | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 1 | 3 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.9A | 3515 RPM | Three Phase | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 1.25 | 5 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.72A | 3485 RPM | Three Phase | €1,251.50 |
