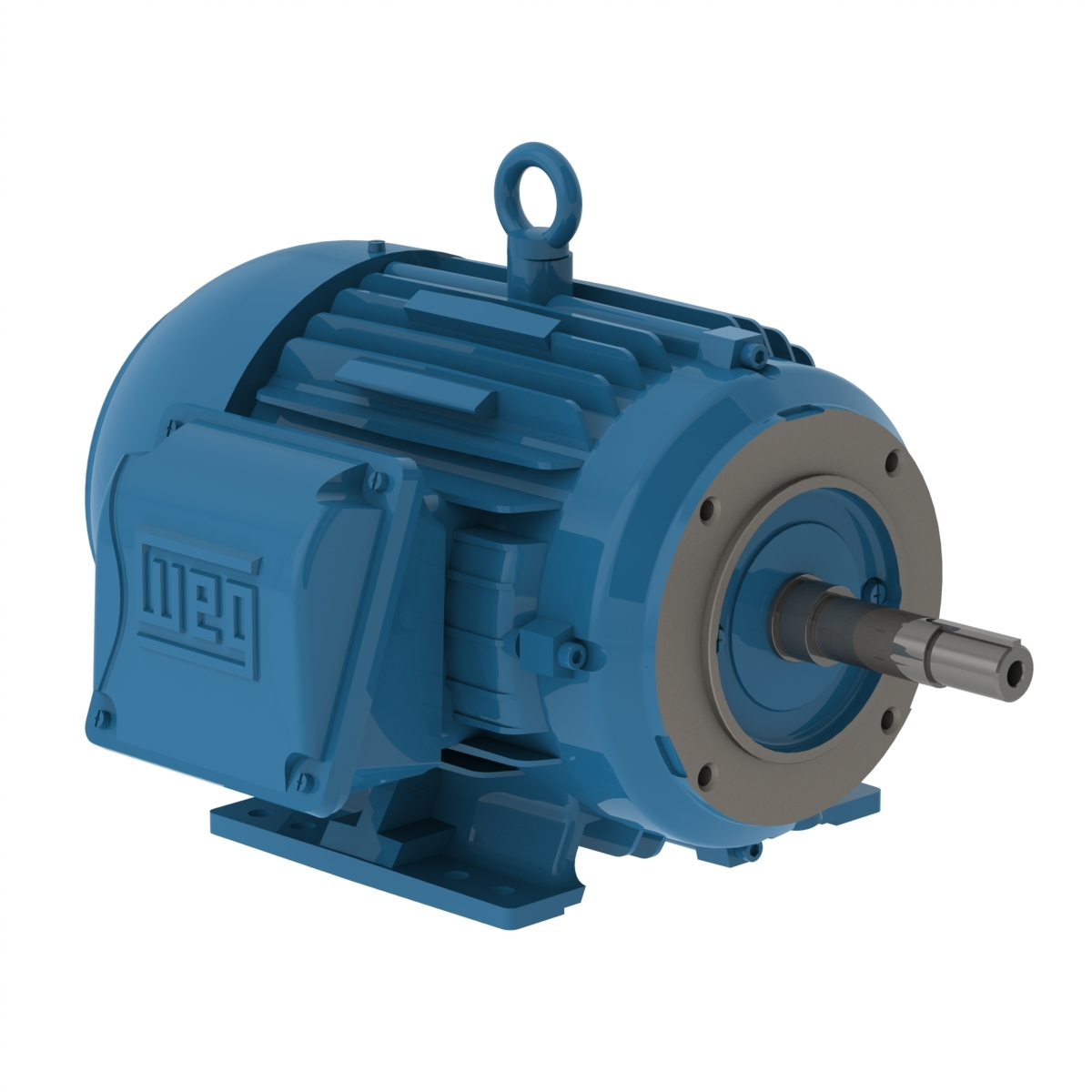

WEG 01018ET3P215JM-W22 14218334 Pump Motor, 10 HP, 1800 RPM, 200V, TEFC, 215JM, Footed, Close CoupLED Pump
1800 rpm
10 hp
215JM
Get it by Thursday, Aug 27
€2,071.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 29.1A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 295% |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 91% |
| Efficiency 75% | 91.7% |
| Efficiency @ 100% | 91.7% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 215JM |
| Frame Material | Cast Iron |
| Frame Size | 213/5JM |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 187A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.4x(Code H) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 1.51 lbs.-sq. ft. |
| Mounting | F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 13A |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output Rating | 10 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.65 |
| Power Factor 75% | 0.76 |
| Product Datasheet | weg-01018et3p215jm-w22.pdf |
| Pump Seal | Mechanical Seal |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Slip | 1.94% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 29.8 lbs.-ft. |
| Tropicalized Painting | Without |
Shipping Info:
| Ship weight (kg) | 89.1 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
