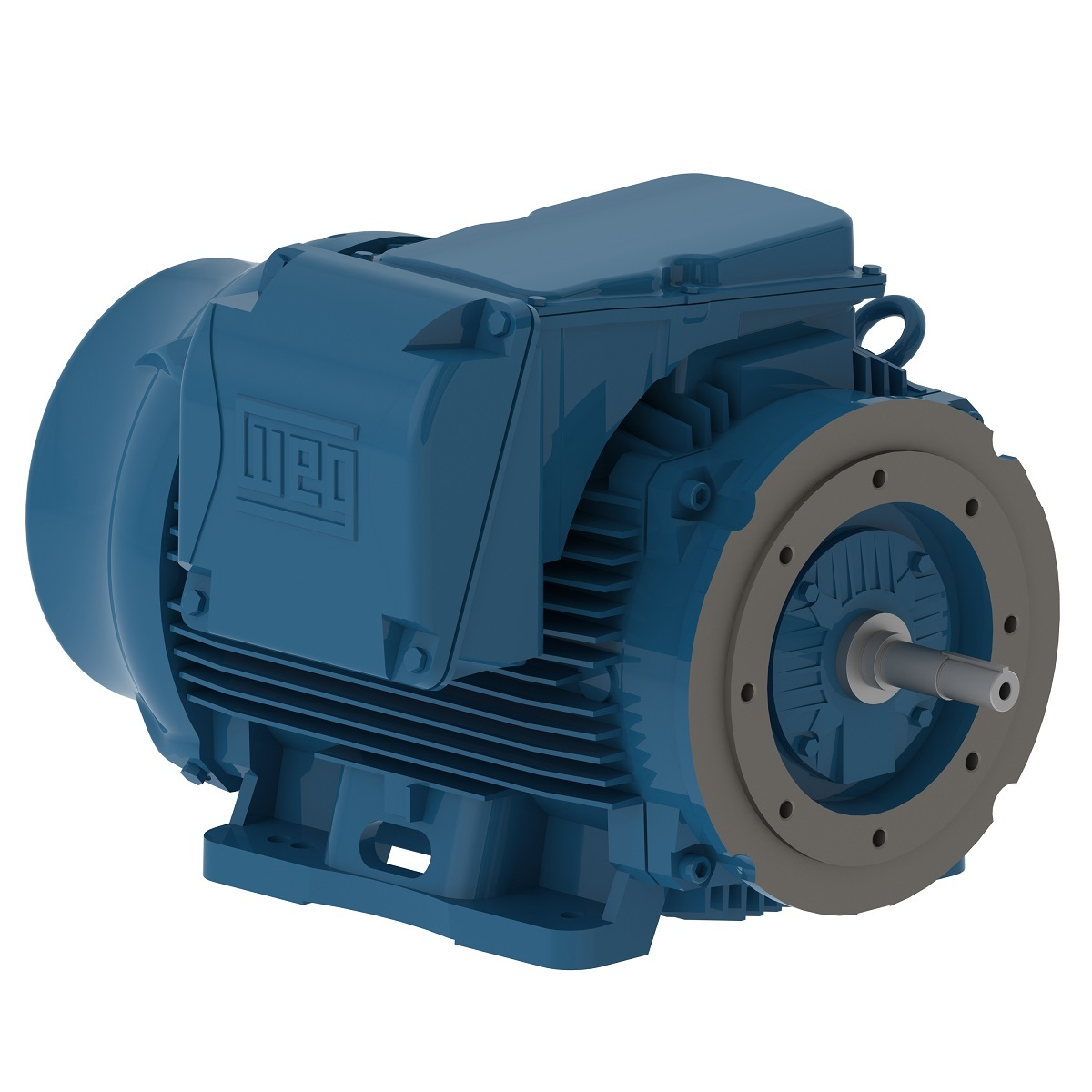

WEG 25018ET3Q447TSC-W22 13062201 General Purpose Motor, TEFC Cast Iron 447/9TSC Frame, 250 HP, 1480 RPM, 415 V
1800 rpm
250 hp
447TSC
Get it by Tuesday, Aug 25
€31,299.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 281A |
| Bearing Cap | Yes |
| Break Down Torque | 229% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 18 sec. , 27 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 75% , 95.8% |
| Efficiency 75% | 96.2% |
| Efficiency @ 1 % | 86% |
| Efficiency @ 100% | 96.2% |
| Efficiency @ 75 % | 83% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 447/9TSC |
| Frame Material | Cast Iron |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 250 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 1827A , 1915A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 10 sec. , 15 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 6.1x(Code F) , 6.5X(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 89.6 lbs.-sq. ft. |
| Moment Of Inertia (j) | 89.6 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1780 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 85A |
| No. Of Holes | 2 |
| No. Of Poles | 4 |
| Noise Level | 75 dBA |
| Output | 250 hp |
| Output Rating | 250 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.86 |
| Power Factor 50% | 0.75 |
| Power Factor 75% | 0.83 |
| Power Factor @ 1 % | 96.2 |
| Power Factor @ 50 % | 95.8 |
| Power Factor @ 75 % | 96.2 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.11% |
| Speed | 1700-1800 RPM , 1780 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 738 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 1278.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
