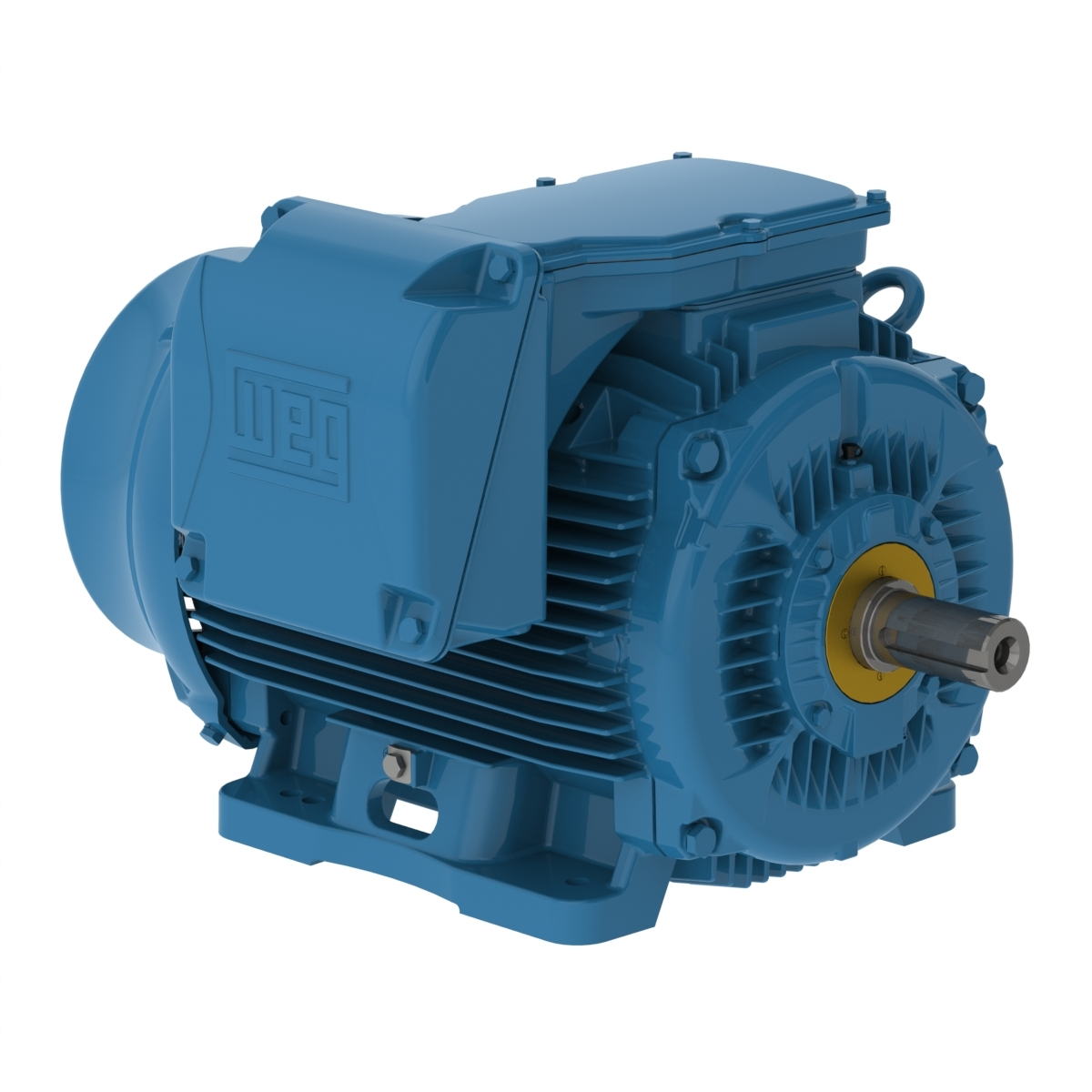

WEG 45012ET3GRB586/7-W22 14335121 General Purpose Motor, TEFC Cast Iron 586/7T Frame, 400 HP, 993 RPM, 415 V With Shaft Locking Device
1200 rpm
450 hp
587
Get it by Thursday, Apr 9
€71,312.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 210% |
| Breakdown Torque | 210% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 45 sec. |
| Connection Cables Quantity | 12 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 96.2% |
| Efficiency @ 50% | 95.8% |
| Efficiency @ 75% | 96.2% |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 67% |
| Efficiency At 75 % | 77% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 586/7T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 532A |
| Grounding Lugs | Double |
| Horsepower | 450 hp |
| Hot Locked Rotor Time | 25 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 3245A |
| L.r. Amperes | 3245A |
| Locked Rotor Time (cold) | 45 sec. |
| Locked Rotor Time (hot) | 25 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.1X(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 368 lbs.-sq. ft. |
| Moment Of Inertia (j) | 368 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1193 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 220A |
| No. Of Holes | 2 |
| No. Of Poles | 6 |
| Noise | 77 dBA |
| Noise Level | 77 dBA |
| Output | 450 hp |
| Output Rating | 450 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.67 |
| Power Factor 75% | 0.77 |
| Power Factor At 1 % | 96.2 |
| Power Factor At 50 % | 95.8 |
| Power Factor At 75 % | 96.2 |
| Power Factor_100% | 0.81 |
| Rated Current | 532A |
| Rated Speed | 1193 RPM |
| Rated Torque | 1980 lbs.-ft. |
| Rated Voltage | 460V |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.58% |
| Space Heater Voltage | 200-240V , 200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 1959 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 2130.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
