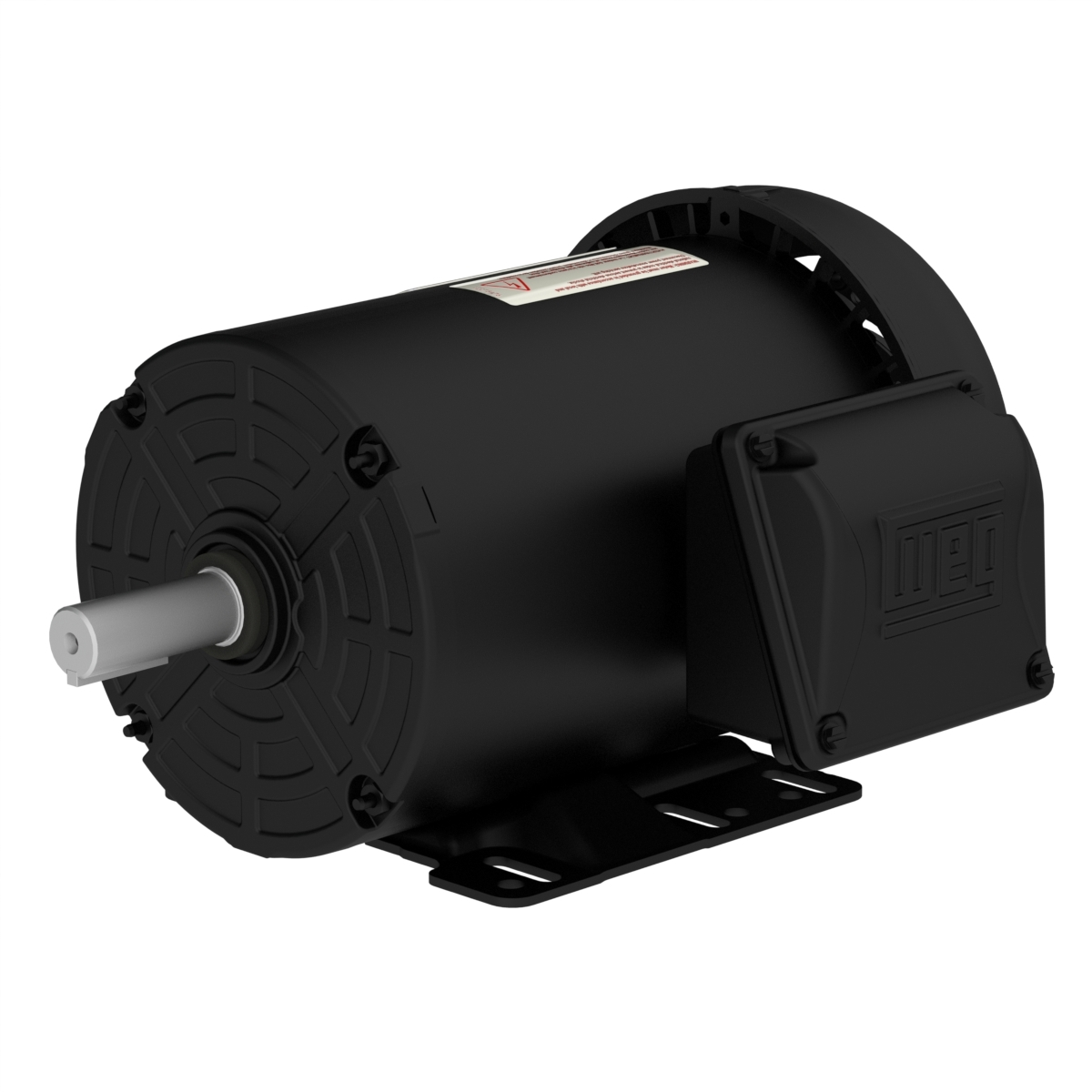

WEG 00218ET3E145TF2-S 14802524 General Purpose Motor, 2 HP, 4 Poles, 143/5T Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC411-TEFC, Foot Mounted
1800 rpm
2 hp
145TF2
Get it by Monday, Apr 6
€635.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Breakdown Torque | 300% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 50% | 85.5% |
| Efficiency @ 75% | 87.5% |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 60% |
| Efficiency At 75 % | 73% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 44.6/22.3A |
| L.r. Amperes | 22.3/44.6A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 8.2X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1296 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1296 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1745 RPM |
| Mounting | F-2 , Foot Mounted |
| No Load Amps | 1.4/2.8A , 2.8/1.4A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 87.5 |
| Power Factor_100% | 0.8 |
| Product Datasheet | weg-00218et3e145tf2-s.pdf |
| Rated Current | 2.72/5.44A , 5.44/2.72A |
| Rated Speed | 1745 RPM |
| Rated Torque | 6.02 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 25 hp | 30.6A | 1775 RPM | - | Face/Base | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 30 hp | 36A | 1775 RPM | - | Face/Base | €5,926.53 |
