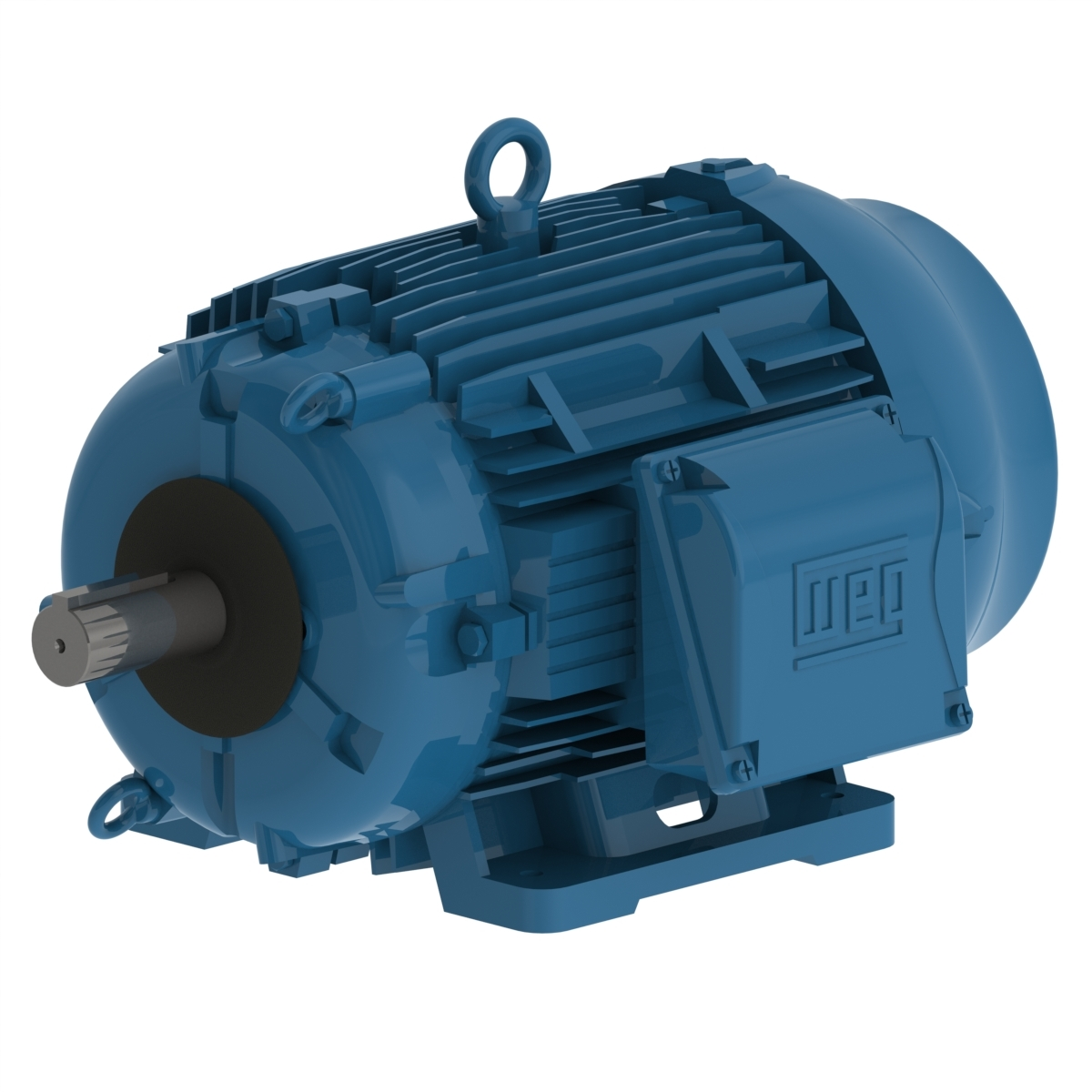

WEG 05018ET3HCT326T-W22 Electric Motor, 50Hp, 60Hz, 1800 Rpm | BC2ADE

WEG 05018ET3HCT326T-W22 14424767 Cooling Tower Motor, 50 HP, 1800 RPM, 575 V, 3 Phase, TEFC, 326T Frame, Footed, Premium

Item: BC2ADEModel: 05018ET3HCT326T-W22Cross Ref: 14424767
Check Availability
In Stock

Get it by Thursday, Apr 9

€6,718.77 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cooling Tower Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Breakdown Torque 270%
Composition Cast Iron
Connection Cables Quantity 6
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 94.5%
Efficiency @ 50% 93%
Efficiency @ 75% 94.1%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Frame 324/6T , 326T
Frame Material Cast Iron
Grounding Lugs Single
Hp 50 hp
Hz 60 Hz
Impregnation Method Double Impregnation Polyester
Insulation Class Class F
Joints Seal Permatex
L.r. Amperes 294A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 229%
Main Terminal Box Hole 2"
Main Terminal Box Type NPT
Moment Of Inertia (j) 9.16 lbs.-sq. ft.
Mounting F-2
No Load Amps 18.8A
Noise Level 70 dBA
Number Of Poles 4
Output Rating 50 hp
Overload Protection No
Phase 3
Power Factor 50% 0.66
Power Factor 75% 0.77
Power Factor_100% 0.83
Rated Current 47.4A
Rated Speed 1775 RPM
Rated Torque 148 lbs.-ft.
Rated Voltage 575V
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.39%
Space Heater Voltage 110-127/200-240V
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Right Position
Voltage 575V AC

Shipping Info:

Ship weight (kg) 289.8
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelService FactorFrequencyMotor Enclosure DesignHpFull Load AmpsNameplate RpmMotor TypeMounting TypePrice
WEG 00158ET3W90L-W22 Metric Motor, Shielded 460v 60 Hz Cw / Ccw | AA2GCZ 10G858 00158ET3W90L-W22150 HzTotally Enclosed Fan Cooled2 hp2.8A1755 RPM-Rigid Base€914.46
WEG 00218ET3W100L-W22 Metric Motor, 460v 60 Hz Shielded Cw / Ccw | AA2GDF 10G864 00218ET3W100L-W22160 HzTotally Enclosed Fan Cooled3 hp4.1A1750 RPM-Rigid Base€1,095.12
WEG 00418ET3Y112M-W22 Metric Motor, 5-1/2Hp, 230/460v Cw / Ccw | AA2GDP 10G872 00418ET3Y112M-W22150 HzTotally Enclosed Fan Cooled5 1/2 hp7.3A1755 RPM-Rigid Base€1,177.86
WEG 00518ET3Y132S-W22 Metric Motor, 7-1/2Hp, 230/460v Cw / Ccw | AA2GDU 10G876 00518ET3Y132S-W22160 HzTotally Enclosed Fan Cooled7 1/2 hp9.1A1775 RPM-Rigid Base€1,613.01
WEG 00718ET3Y132M-W22 Metric Motor, 10Hp, 230/460v Cw / Ccw | AA2GEA 10G882 00718ET3Y132M-W22150 HzTotally Enclosed Fan Cooled10 hp12.2A1770 RPM-Rigid Base€1,918.09
WEG 01818ET3Y180MFF-W22 Metric Motor, 25Hp, 230/460V, Cw / Ccw | AA2GEM 10G893 01818ET3Y180MFF-W221.2550/60 HzTotally Enclosed Fan Cooled25 hp30.6A1775 RPM-Face/Base€4,486.20
WEG 02218ET3Y180LFF-W22 Metric Motor, 30Hp, 230/460v Cw / Ccw | AA2GET 10G898 02218ET3Y180LFF-W221.2550/60 HzTotally Enclosed Fan Cooled30 hp36A1775 RPM-Face/Base€5,926.53
