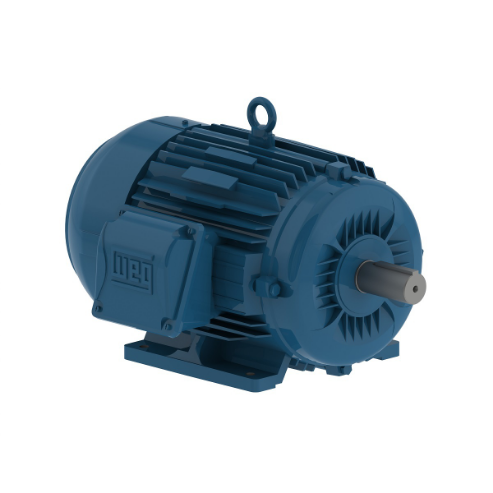

WEG 00318ET3V182T-W22 12595836 General Purpose Motor, TEFC Cast Iron 182/4T Frame, 3 HP, 1760 RPM, 200/400 V
1800 rpm
3 hp
182T
Get it by Tuesday, Aug 25
€791.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 8.99/4.5A |
| Bearing Cap | No |
| Break Down Torque | 340% |
| Cold Locked Rotor Time | 41 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 61% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 75 % | 73% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Cast Iron |
| Frame Size | 182T |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 23 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 72.8/36.4A |
| Locked Rotor Time(hot) | 23 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 8.1X(Code K) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.3401 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 4.6/2.3A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 88.5 |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 8.95 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 200/400V , 200/400V AC |
Shipping Info:
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
