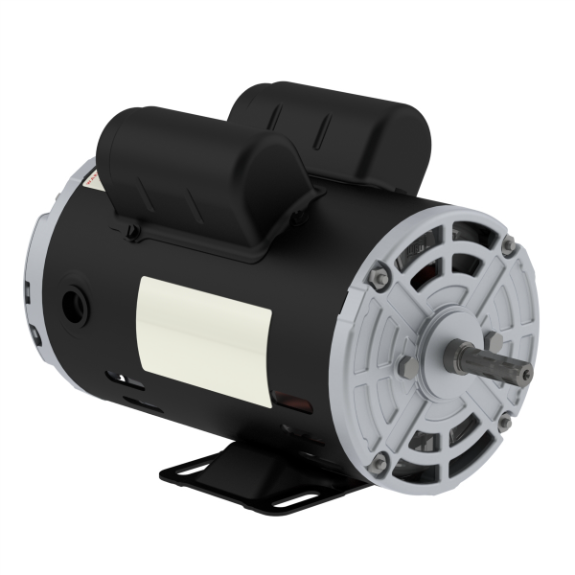

WEG .3318OT1B48-S 13039446 General Purpose Motor, ODP RolLED Steel 48 Frame, 0.33 HP, 1745 RPM, 115/208-230 V Without Bearing Cap
1800 rpm
0.33 hp
48
115/208-230V
Get it by Tuesday, Aug 18
€328.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4.12/2.32-2.06A |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 30 sec. |
| Composition | Steel |
| De Bearing Seal | No |
| Design | No |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 53% |
| Efficiency @ 1 % | 73% |
| Efficiency @ 75 % | 67% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 17 sec. |
| Hp | 1/3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 30.1/16.9-15A |
| Locked Rotor Time(hot) | 17 sec. |
| Locked Rotor Torque | 320% |
| Lrc | 7.3X(Code M) |
| Moment Of Inertia | 0.0439 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1745 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 3.1/1.34-1.55A |
| No. Of Poles | 4 |
| Noise Level | 50 dBA |
| Output | 1/3 hp |
| Output Rating | 0.25 kW , 1/3 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor @ 1 % | 72.4 |
| Power Factor @ 50 % | 61 |
| Power Factor @ 75 % | 68 |
| Rated Amps | 4.12/2.32-26A |
| Rated Speed | 1745 RPM |
| Rated Voltage | 115/208-230V |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.35 , 1.35 (1 @ 208V) |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.06% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 0.993 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 9.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 25.11 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT1B56-S | 115/208-230V AC | 1.15 | - | - | 56H | S1 | 4 | 1800 RPM | €746.87 | |
 |
00718OS1F215T | 230/460V | 1.15 | 7 1/2 hp | - | 213/5T | Continuous | 4 | 1800 RPM | €1,146.55 | |
|
00236OT1B56-S | 115/208-230V AC | 1.15 | 2 hp | - | 56H | S1 | 2 | 3600 RPM | €578.65 | |
 |
00536OS1E184T | 208-230/460V | - | 5 hp | - | 184T | - | - | - | €961.68 | |
 |
.7518OT1B56-S | 115/208-230V AC | 1.25 | - | - | 56 | S1 | 4 | 1800 RPM | €461.73 | |
 |
.5018OT1B48-S | 115/208-230V AC | 1.25 | 1/2 hp | 4.86/34-2.43A | 48 | S1 | 4 | 1800 RPM | €422.40 | |
 |
.5018OT1BW56C-S | 115/208-230V AC | 1.25 | 1/2 hp | - | W56C | S1 | 4 | 1800 RPM | €399.67 |
