WEG .1218OS1B48CH-S Electric Motor, 1/8Hp, 60Hz, 1800 Rpm | BB9TUY

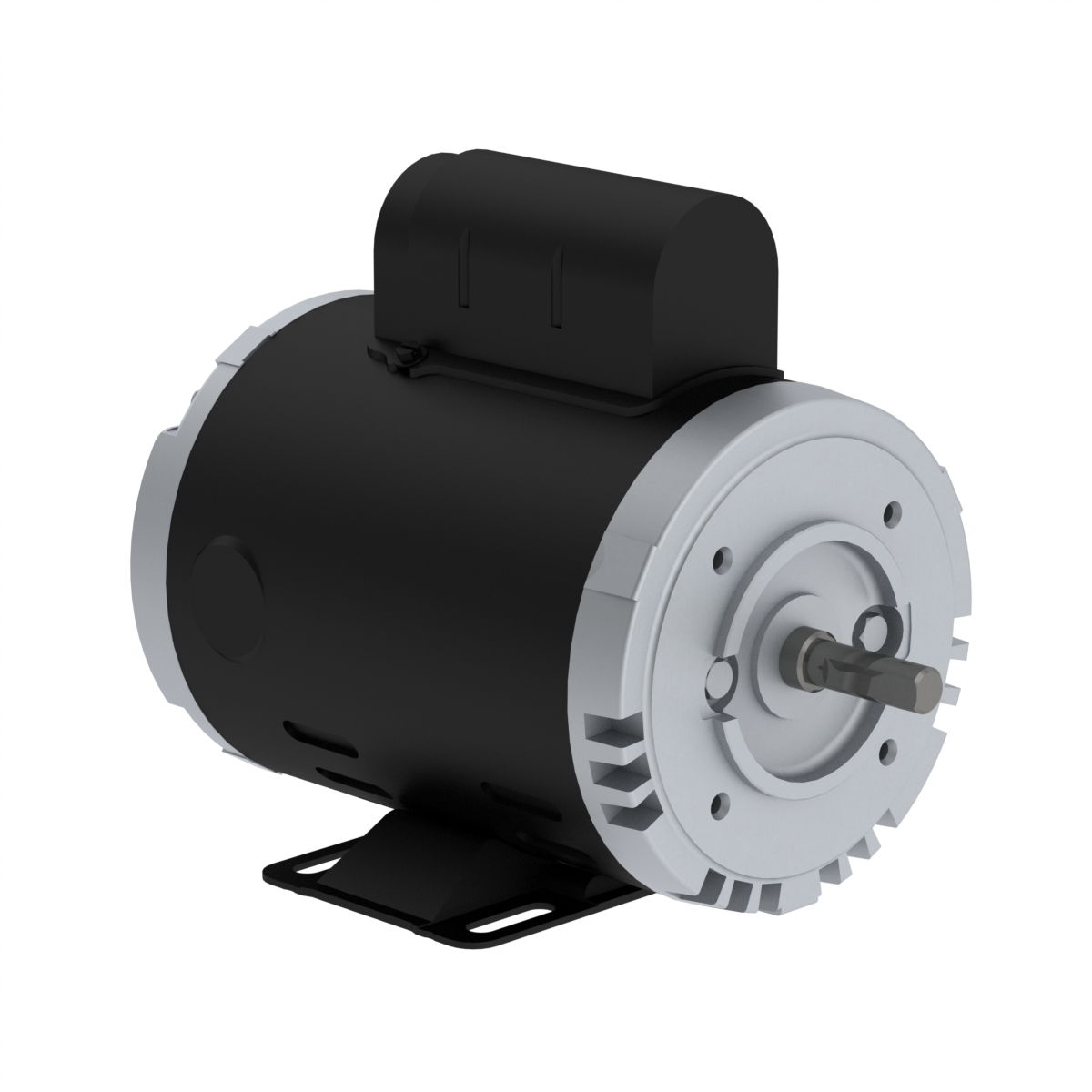

WEG .1218OS1B48CH-S 14419167 General Purpose Motor, ODP RolLED Steel 48 Frame, 0.12 HP, 1740 RPM, 115/208-230 V With Bearing Cap

Item: BB9TUYModel: .1218OS1B48CH-SCross Ref: 14419167
Check Availability
In Stock

Get it by Tuesday, Apr 7

€264.93 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 310%
Breakdown Torque 310%
Cable Press Material Sem
Cold Locked Rotor Time 46 sec.
Composition Steel
Design N
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 50%
Efficiency @ 50% 37%
Efficiency @ 75% 45%
Efficiency At 1 % 55%
Efficiency At 50 % 41%
Efficiency At 75 % 48%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C Superior Size
Flange Type C
Frame 48
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 26 sec.
Hp 1/2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 13.6/7.54-6.82A
L.r. Amperes 6.82-7.54/13.6A
Locked Rotor Time (cold) 46 sec.
Locked Rotor Time (hot) 26 sec.
Locked Rotor Torque 330%
Lrc 4.8X(Code P)
Moment Of Inertia 0.024 lbs.-sq. ft.
Moment Of Inertia (j) 0.024 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1740 RPM
Mounting F-1 , Foot Mounted
No Load Amps 1.12-1.3/2.6A , 2.6/1.12-1.3A
No. Of Poles 4
Noise Level 50 dBA
Output 3/25 hp
Output Rating 0.12 hp , 3/25 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 1
Power Factor 50% 0.41
Power Factor 75% 0.48
Power Factor At 1 % 50
Power Factor At 50 % 37
Power Factor At 75 % 45
Power Factor_100% 0.55
Rated Current 1.42-1.57/2.84A , 2.84/1.57-1.42A
Rated Speed 1740 RPM
Rated Torque 0.362 lbs.-ft.
Rated Voltage 115/208-230V , 115/208-230V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.4
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 8.1
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
