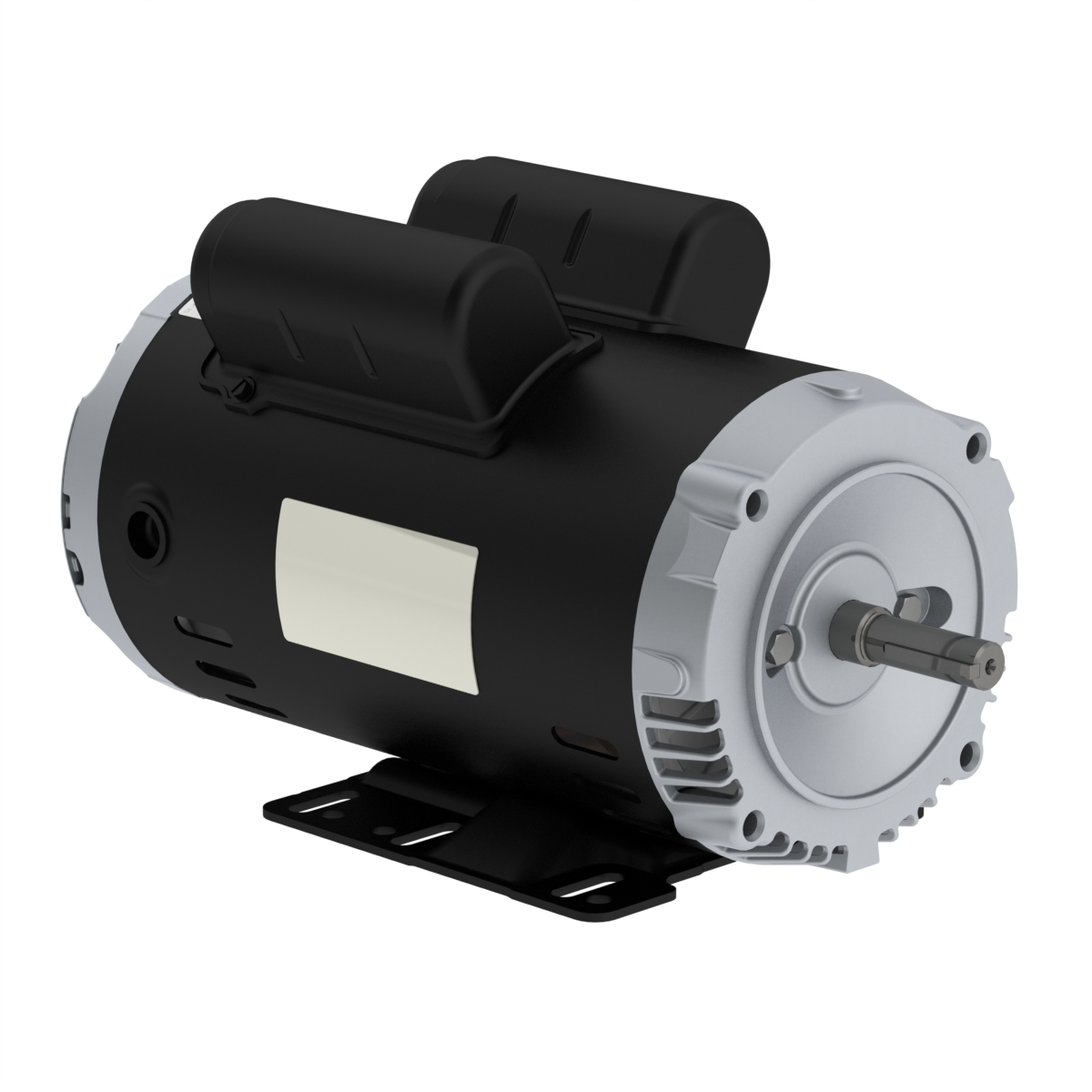

WEG 00336OT1B56C-S 13107363 General Purpose Motor, ODP RolLED Steel 56HC Frame, 3 HP, 3500 RPM, 115/208-230 V
3600 rpm
3 hp
56C
115/208-230V
Get it by Monday, Jul 6
€711.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 12.2-13.5/24.4A , 24.4/13.5-12.2A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 76% , 87% |
| Efficiency 75% | 81% |
| Efficiency @ 1 % | 93% |
| Efficiency @ 100% | 84.1% |
| Efficiency @ 75 % | 92% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 100-111/200A , 200/111-100A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.2X(Code J) |
| Moment Of Inertia | 0.0944 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0944 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3500 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 3.36-3.9/7.8A , 7.8/3.36-3.9A |
| No. Of Poles | 2 |
| Noise Level | 58 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.93 |
| Power Factor 50% | 0.87 |
| Power Factor 75% | 0.92 |
| Power Factor @ 1 % | 84.1 |
| Power Factor @ 50 % | 76 |
| Power Factor @ 75 % | 81 |
| Product Datasheet | weg-00336ot1b56c-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.78% |
| Speed | 3400-3600 RPM , 3500 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 4.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Design | Hp | Duty Cycle | Overall Length | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT1B56-S | 115/208-230V AC | 56H | 1.15 | A | - | S1 | - | - | €746.87 | |
 |
00718OS1F215T | 230/460V | 213/5T | 1.15 | - | 7 1/2 hp | Continuous | 17.165" | - | €1,146.55 | |
|
00236OT1B56-S | 115/208-230V AC | 56H | 1.15 | A | 2 hp | S1 | - | - | €578.65 | |
 |
00536OS1E184T | 208-230/460V | 184T | - | - | 5 hp | - | - | - | €961.68 | |
 |
.7518OT1B56-S | 115/208-230V AC | 56 | 1.25 | A | - | S1 | - | - | €461.73 | |
 |
.5018OT1B48-S | 115/208-230V AC | 48 | 1.25 | No | 1/2 hp | S1 | 10 1/4" | 1 1/2" | €422.40 | |
 |
.5018OT1BW56C-S | 115/208-230V AC | W56C | 1.25 | No | 1/2 hp | S1 | - | - | €399.67 |
