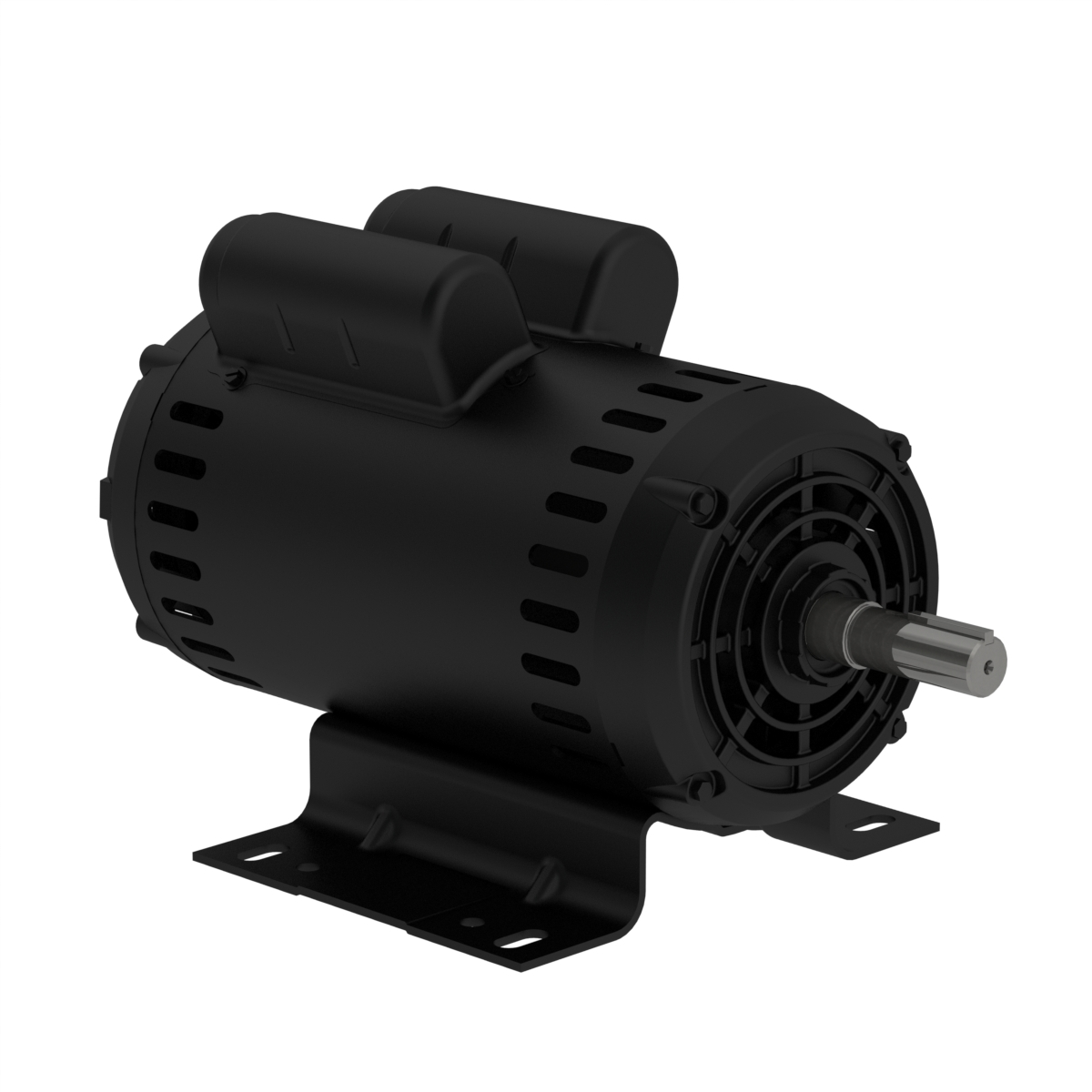

WEG 00536OS1CCD182/4Y 13516819 Compressor Duty Motor, 5 HP, 3600 RPM, 208-230 V, 1 Phase, ODP, 182/4Y Frame, Footed
3600 rpm
5 hp
184Y
208-230V
Get it by Friday, Apr 3
€627.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Break-down Torque | 200% |
| Breakdown Torque | 200% |
| Cold Locked Rotor Time | 10 sec. |
| Drip Cover | Without |
| Duty Cycle | Compressor Duty |
| Duty Type | Compressor Duty |
| Efficiency @ 100% | 85% |
| Efficiency @ 50% | 83% |
| Efficiency @ 75% | 85% |
| Efficiency At 1 % | 99% |
| Efficiency At 50 % | 99% |
| Efficiency At 75 % | 99% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4Y |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Insulation Class | Class F |
| L. R. Amps | 137-124A |
| L.r. Amperes | 124-137A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6.5X(Code G) |
| Moment Of Inertia | 0.0712 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0712 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3455 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 0-3.7A |
| No. Of Poles | 2 |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | Manual |
| Overload Protector | Manual |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 50% | 0.99 |
| Power Factor 75% | 0.99 |
| Power Factor At 1 % | 85 |
| Power Factor At 50 % | 83 |
| Power Factor At 75 % | 85 |
| Power Factor_100% | 0.99 |
| Rated Current | 19.1-21A , 21-19.1A |
| Rated Speed | 3455 RPM |
| Rated Torque | 7.6 lbs.-ft. |
| Rated Voltage | 208-230V , 208-230V AC |
| Resilient Base | Without |
| Rotation | CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 4.03% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Nameplate Rpm | Full Load Amps | Frame | Rpm | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT1B56-S | 115/208-230V AC | 1.15 | - | - | - | 56H | 1700-1800 RPM | 1800 RPM | €746.87 | |
 |
00718OS1F215T | 230/460V | 1.15 | 7 1/2 hp | - | - | 213/5T | 1700-1800 RPM | 1800 RPM | €1,146.55 | |
|
00236OT1B56-S | 115/208-230V AC | 1.15 | 2 hp | - | - | 56H | 3400-3600 RPM | 3600 RPM | €578.65 | |
 |
00536OS1E184T | 208-230/460V | - | 5 hp | - | - | 184T | 3400-3600 RPM | - | €961.68 | |
 |
.7518OT1B56-S | 115/208-230V AC | 1.25 | - | - | - | 56 | 1700-1800 RPM | 1800 RPM | €461.73 | |
 |
.5018OT1B48-S | 115/208-230V AC | 1.25 | 1/2 hp | 1730 RPM | 4.86/34-2.43A | 48 | 1700-1800 RPM | 1800 RPM | €422.40 | |
 |
.5018OT1BW56C-S | 115/208-230V AC | 1.25 | 1/2 hp | - | - | W56C | 1700-1800 RPM | 1800 RPM | €399.67 |
