WEG .2518OT1B48CH-S Electric Motor, 1/4Hp, 60Hz, 1800 Rpm | BC2FGN

WEG .2518OT1B48CH-S 14419273 Electric Motor, 1/4Hp, 60Hz, 1800 Rpm

Item: BC2FGNModel: .2518OT1B48CH-SCross Ref: 14419273
Check Availability
In Stock

Get it by Tuesday, Dec 23

€320.93 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 36 sec.
Composition Steel
Design N
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 78%
Efficiency At 50 % 56%
Efficiency At 75 % 65%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type C
Frame 48
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 20 sec.
Hp 1/4 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 15.5/9.38-7.74A
Locked Rotor Torque 290%
Lrc 5.3X(Code J)
Moment Of Inertia 0.0358 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1740 RPM
Mounting Foot Mounted
No Load Amps 2/0.862-1A
No. Of Poles 4
Noise Level 50 dBA
Output 1/4 hp
Output Rating 1/4 hp
Overload Protector Without Overload Protector
Painting Only Primer
Phase 1
Power Factor At 1 % 68.5
Power Factor At 50 % 56
Power Factor At 75 % 64
Rated Current 2.92/1.77-1.46A
Rated Torque 0.754 lbs.-ft.
Rated Voltage 115/208-230V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.35
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Ships Factory Direct No
Slip 3.33%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 9.45
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageService FactorHpFrameDuty CycleNo. Of PolesSynchronous SpeedNo Load AmpsPrice

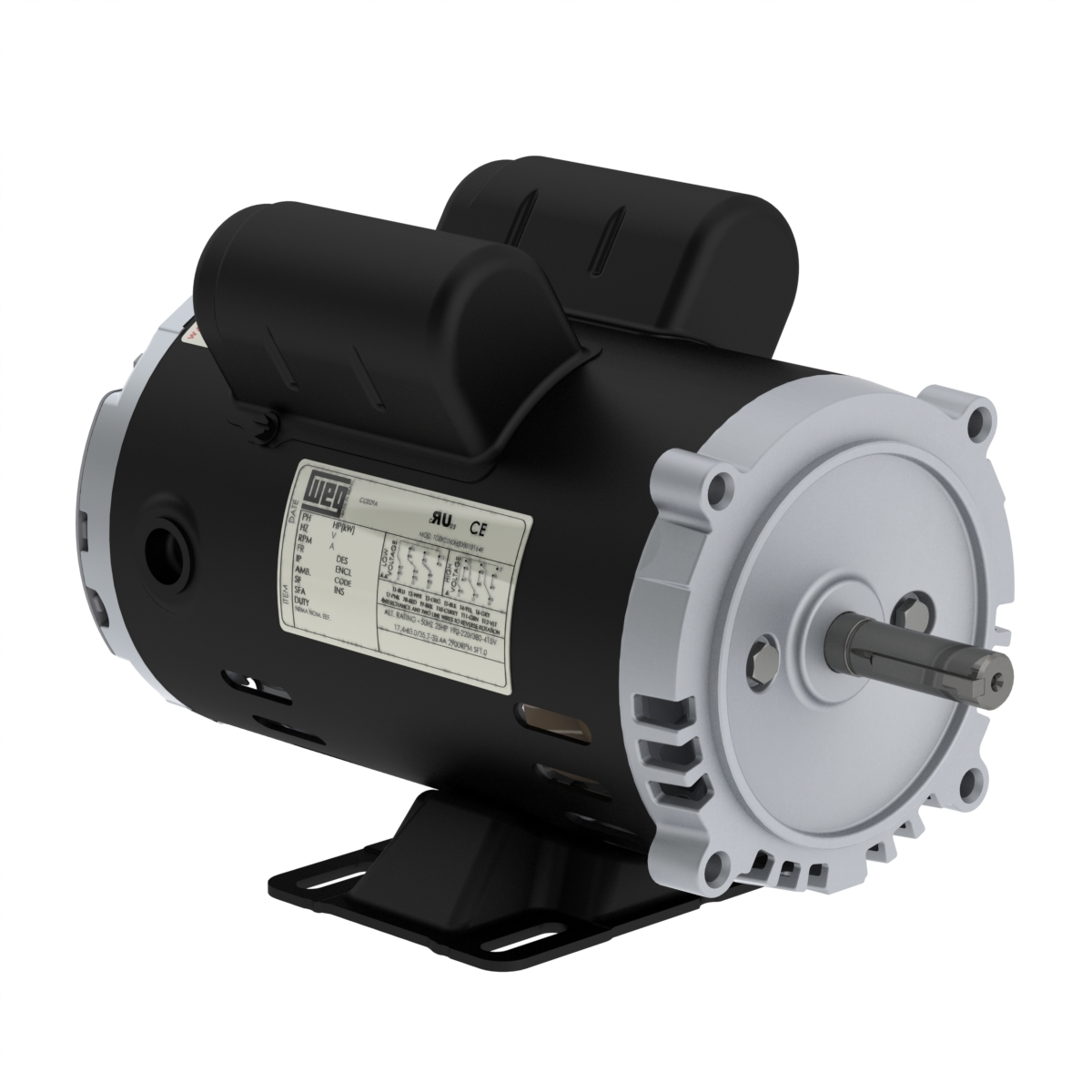

WEG .5018OT1BW56C-S Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BB8WAJ .5018OT1BW56C-S115/208-230V AC1.251/2 hpW56CS141800 RPM2.7/1.16-1.35A€399.67
WEG .1636OS1B48CH-S Electric Motor, 1/6Hp, 60Hz, 3600 Rpm | BB9GPJ .1636OS1B48CH-S115/208-230V1.351/6 hp48Continuous23600 RPM2.4/1.03-1.2A€275.29

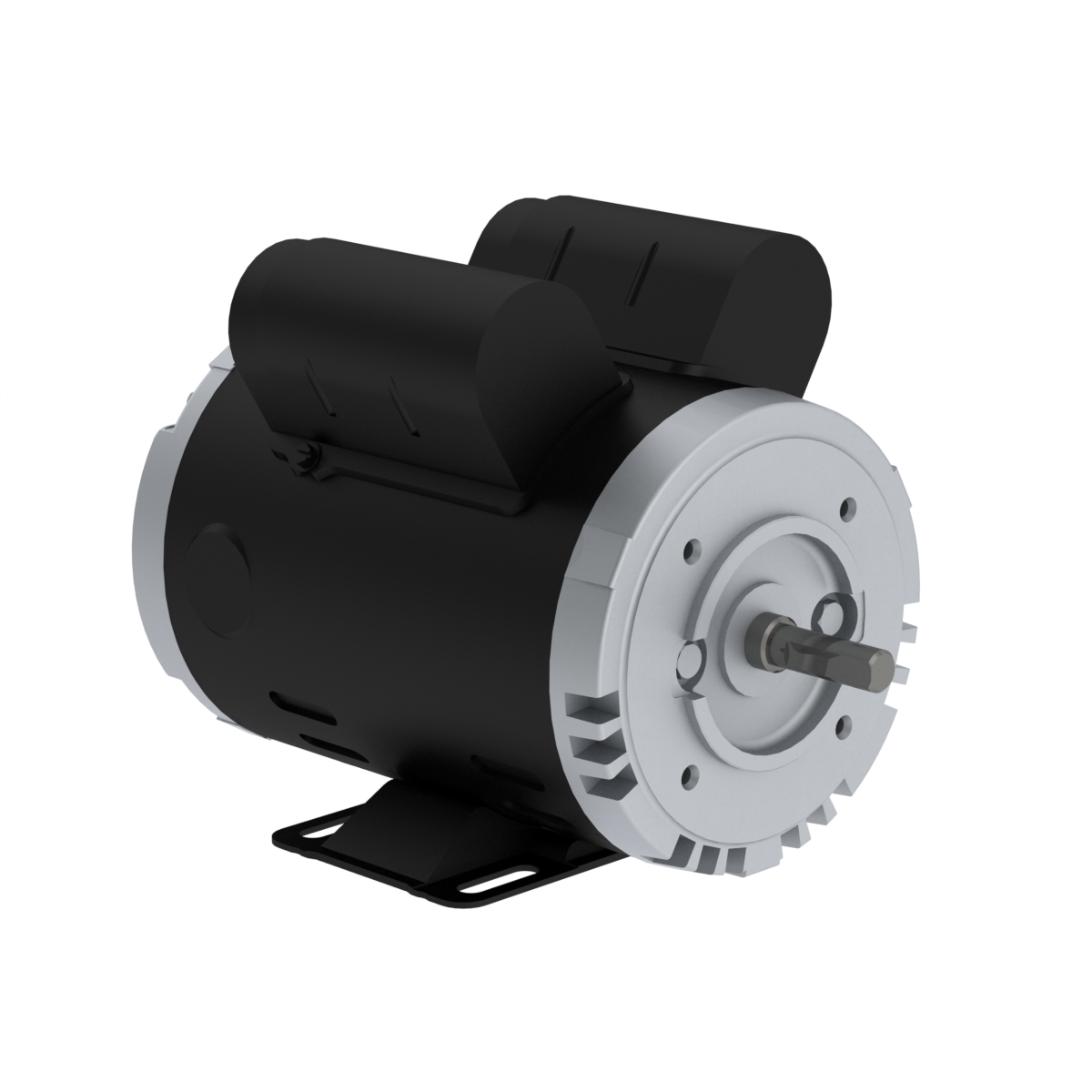

WEG .5036OT1B48CH-S Electric Motor, 1/2Hp, 60Hz, 3600 Rpm | BB9KPX .5036OT1B48CH-S115/208-230V AC1.251/2 hp48S123600 RPM1.6/0.69-0.8A€335.08

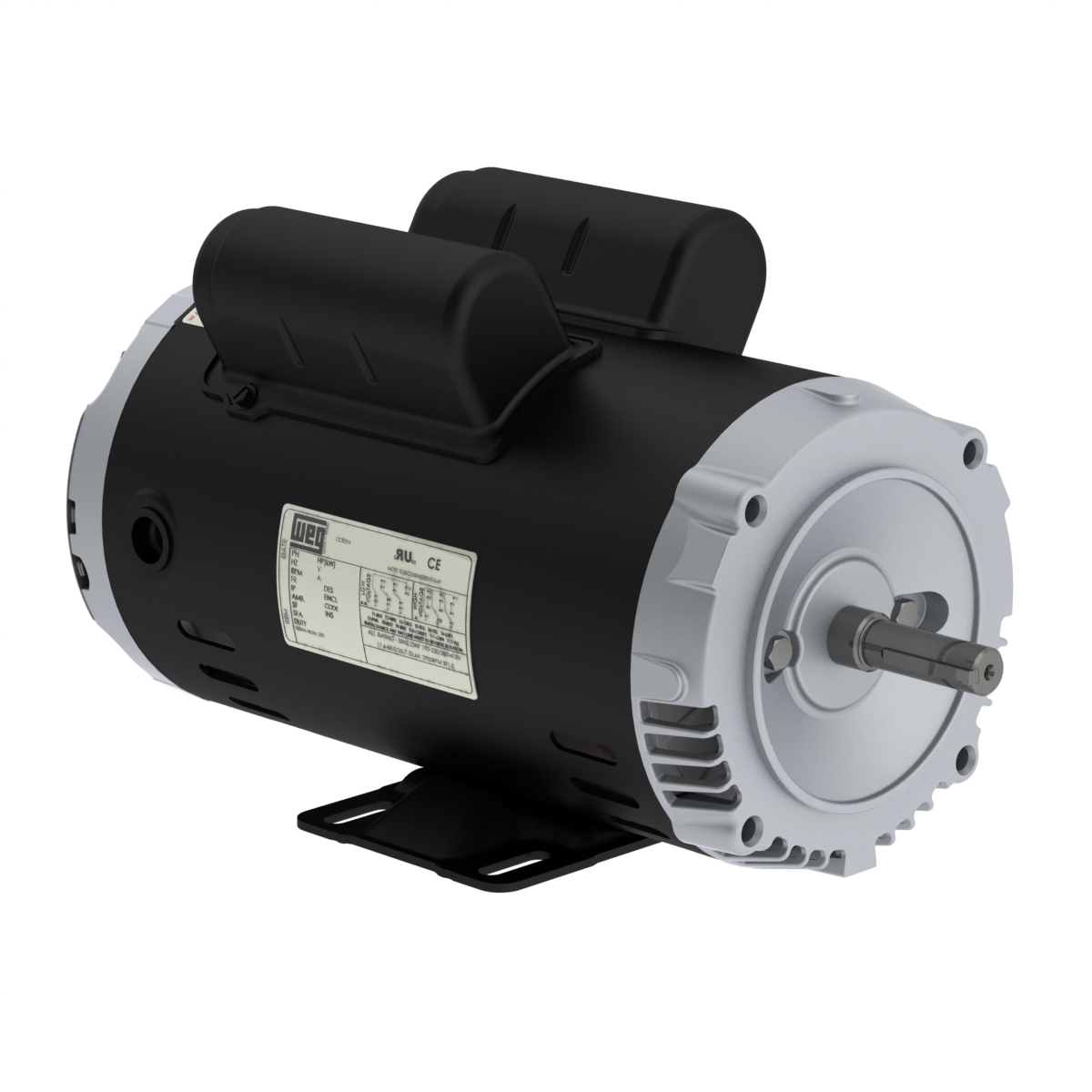

WEG 00236OT1B56C-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9LAD 00236OT1B56C-S115/208-230V AC1.152 hp56CS123600 RPM5/2.16-2.5A€612.05
WEG .2536OT1B48CH-S Electric Motor, 1/4Hp, 60Hz, 3600 Rpm | BB9MVZ .2536OT1B48CH-S115/208-230V AC1.351/4 hp48S123600 RPM1/0.431-0.5A€309.38

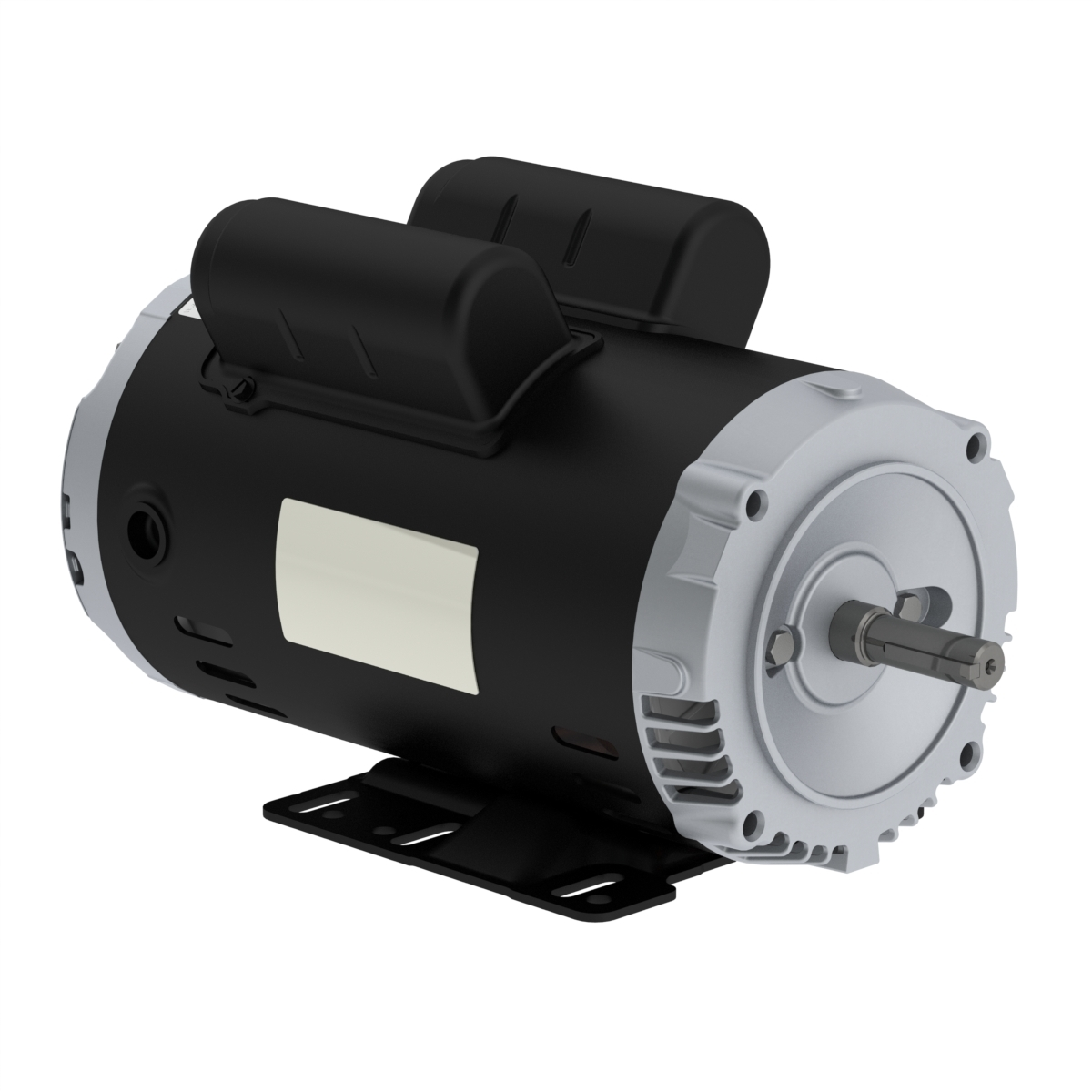

WEG 00158OT1B56C-S Electric Motor, 1 1/2Hp, 60Hz, 1 Rpm | BB9TAW 00158OT1B56C-S115/208-230V AC1.151 1/2 hp56HCS141800 RPM4.6/1.98-2.3A€657.39

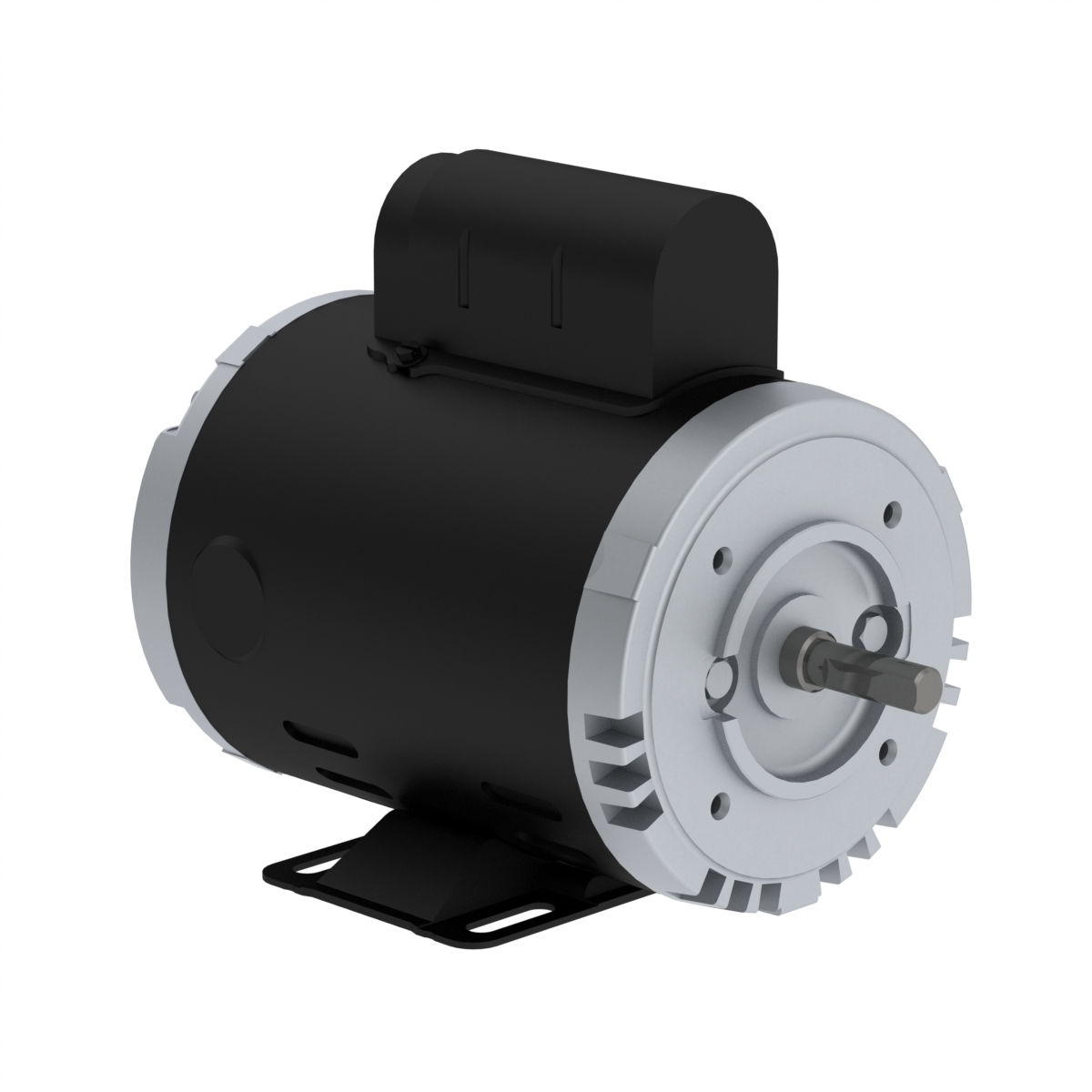

WEG .1218OS1B48CH-S Electric Motor, 1/8Hp, 60Hz, 1800 Rpm | BB9TUY .1218OS1B48CH-S115/208-230V AC1.41/2 hp48S141800 RPM2.6/1.12-1.3A€264.93
