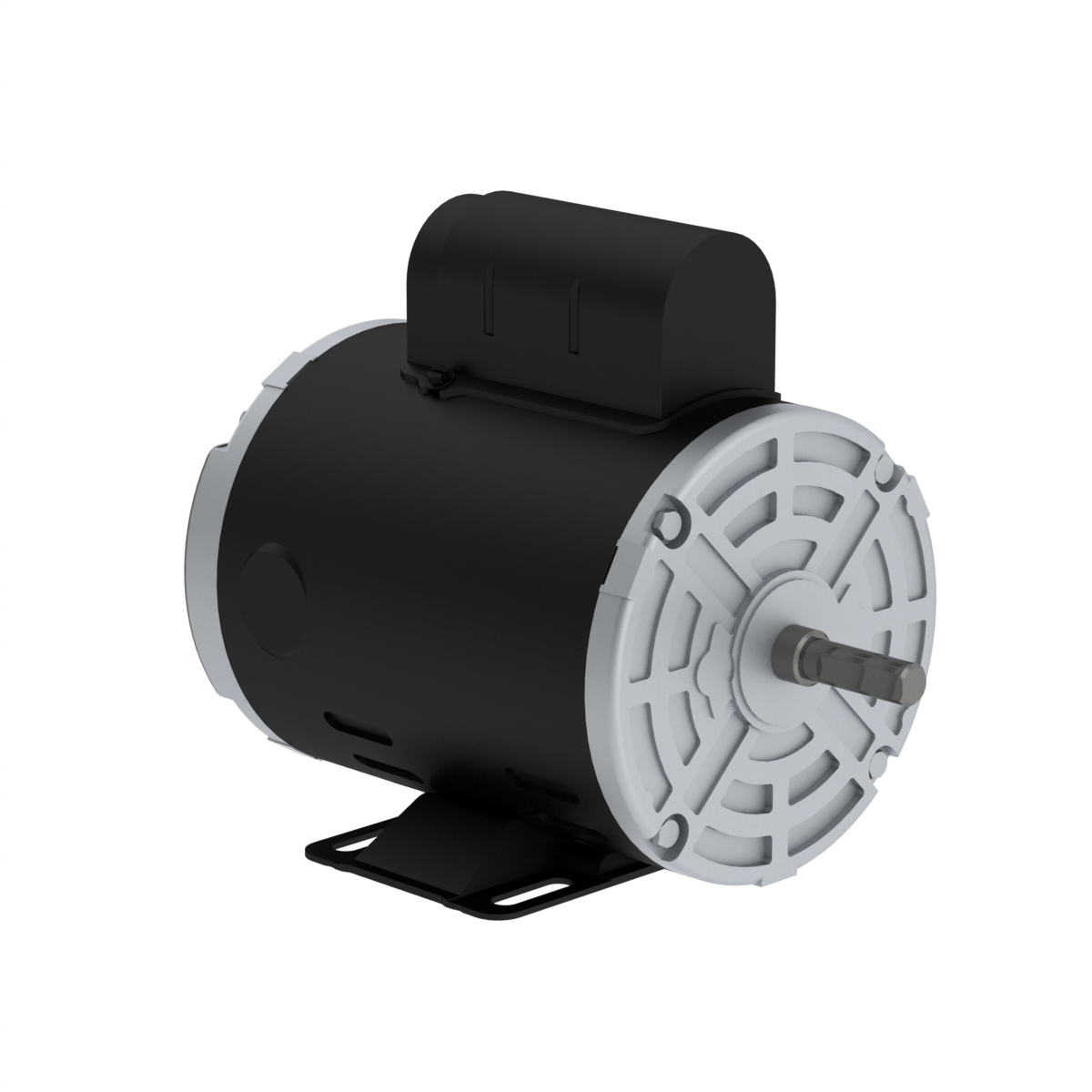

WEG .1618OS1B48-S 14360314 Electric Motor, 1/6Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
€265.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 28 sec. |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 57% |
| Efficiency At 50 % | 42% |
| Efficiency At 75 % | 50% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 16 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 19/10.5-9.52A |
| Locked Rotor Torque | 320% |
| Lrc | 5.5X(Code P) |
| Moment Of Inertia | 0.028 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1740 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 3/1.29-1.5A |
| No. Of Poles | 4 |
| Noise Level | 50 dBA |
| Output Rating | 4/25 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor At 1 % | 53 |
| Power Factor At 50 % | 41 |
| Power Factor At 75 % | 49 |
| Rated Current | 3.46/1.91-1.73A |
| Rated Torque | 0.483 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.35 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Nameplate Rpm | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518OS1CCD184T | 208-230V AC | 1.25 | 5 hp | 1750 RPM | 20.7-23A | Capacitor Start/Run | Rigid Base | 184T | €1,067.36 | |
|
00518OS1CCDOL184T | 208-230V AC | 1.15 | 5 hp | 1750 RPM | 20.7-23A | Capacitor Start/Run | Rigid Base | 184T | €1,146.41 | |
 |
00718OS1CCD215T | 208-230V | 1.15 | 7 1/2 hp | 1760 RPM | 32.2-33.8A | Capacitor Start/Run | Rigid Base | 213/5T | €1,498.66 | |
|
01018OS1CCD215T | 208-230V AC | 1.15 | 10 hp | 1720 RPM | 40-44.2A | Capacitor Start/Run | Rigid Base | 215T | €2,281.05 | |
 |
00536OS1DCD56H-S | 230V AC | 1 | 5 hp | - | - | - | - | 56H | €546.42 | |
 |
00218OT1B56-S | 115/208-230V AC | 1.15 | - | - | - | - | - | 56H | €746.87 | |
|
00536OS1DCD56HZ-S | 230V AC | 1 | 5 hp | - | - | - | - | 56HZ | €573.87 |
