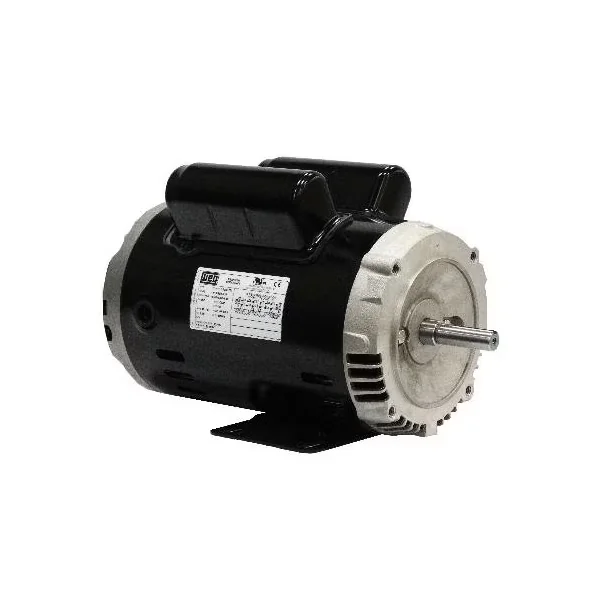

WEG 00218OT1B56C-S 13246873 General Purpose Motor, ODP RolLED Steel 56HC Frame, 2 HP, 1730 RPM, 115/208-230 V
1800 rpm
2 hp
56C
115/208-230V
Get it by Friday, Jul 3
€780.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 17.7/9.5-8.87A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 225% |
| Cold Locked Rotor Time | 32 sec. |
| Composition | Steel |
| Design | L |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency 50% | 75% |
| Efficiency @ 1 % | 87% |
| Efficiency @ 75 % | 83% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 115/61.7-57.7A |
| Locked Rotor Torque | 290% |
| Lrc | 6.5X(Code H) |
| Moment Of Inertia | 0.1614 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1730 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 6.2/2.67-3.1A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor @ 1 % | 84.5 |
| Power Factor @ 50 % | 83 |
| Power Factor @ 75 % | 84 |
| Product Datasheet | weg-00218ot1b56c-s.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.89% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 6.07 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 34.2 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Design | Hp | Duty Cycle | Overall Length | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT1B56-S | 115/208-230V AC | 56H | 1.15 | A | - | S1 | - | - | €746.87 | |
 |
00718OS1F215T | 230/460V | 213/5T | 1.15 | - | 7 1/2 hp | Continuous | 17.165" | - | €1,146.55 | |
|
00236OT1B56-S | 115/208-230V AC | 56H | 1.15 | A | 2 hp | S1 | - | - | €578.65 | |
 |
00536OS1E184T | 208-230/460V | 184T | - | - | 5 hp | - | - | - | €961.68 | |
 |
.7518OT1B56-S | 115/208-230V AC | 56 | 1.25 | A | - | S1 | - | - | €461.73 | |
 |
.5018OT1B48-S | 115/208-230V AC | 48 | 1.25 | No | 1/2 hp | S1 | 10 1/4" | 1 1/2" | €422.40 | |
 |
.5018OT1BW56C-S | 115/208-230V AC | W56C | 1.25 | No | 1/2 hp | S1 | - | - | €399.67 |
