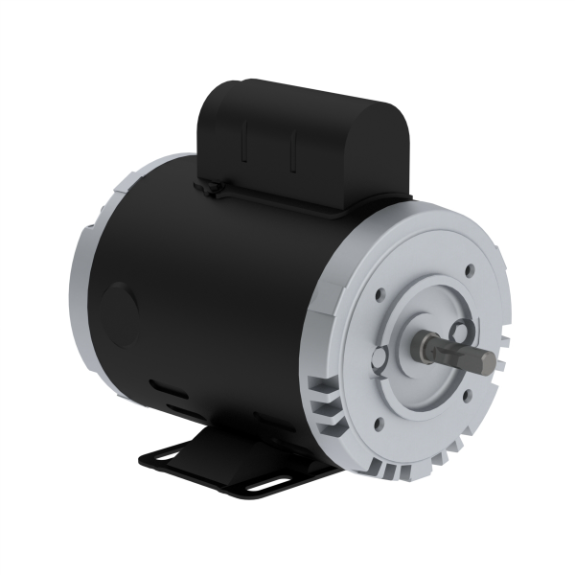

WEG .1236OS1B48CH-S 14419269 General Purpose Motor, ODP RolLED Steel 48 Frame, 0.12 HP, 3500 RPM, 115/208-230 V With Bearing Cap
3600 rpm
0.125 hp
48CH
115/208-230V
Get it by Tuesday, Aug 18
€269.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 32 sec. |
| De Bearing Seal | No |
| Design | N |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C Superior Size |
| Flange Type | C |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Locked Rotor Time(hot) | 18 sec. |
| Lrc | 6.4x(Code R) |
| Motor Enclosure Design | Open Dripproof |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | No |
| No. Of Poles | 2 |
| Output Rating | 0.12 hp , 3/25 hp |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.4 (1 @ 208V) |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218OT1B56-S | 115/208-230V AC | 1.15 | - | - | 56H | S1 | 4 | 1800 RPM | €746.87 | |
 |
00718OS1F215T | 230/460V | 1.15 | 7 1/2 hp | - | 213/5T | Continuous | 4 | 1800 RPM | €1,146.55 | |
|
00236OT1B56-S | 115/208-230V AC | 1.15 | 2 hp | - | 56H | S1 | 2 | 3600 RPM | €578.65 | |
 |
00536OS1E184T | 208-230/460V | - | 5 hp | - | 184T | - | - | - | €961.68 | |
 |
.7518OT1B56-S | 115/208-230V AC | 1.25 | - | - | 56 | S1 | 4 | 1800 RPM | €461.73 | |
 |
.5018OT1B48-S | 115/208-230V AC | 1.25 | 1/2 hp | 4.86/34-2.43A | 48 | S1 | 4 | 1800 RPM | €422.40 | |
 |
.5018OT1BW56C-S | 115/208-230V AC | 1.25 | 1/2 hp | - | W56C | S1 | 4 | 1800 RPM | €399.67 |
