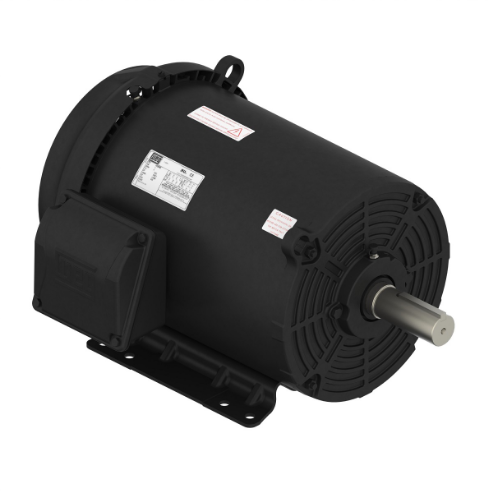

WEG 01536ET3H254T-S Electric Motor, 15Hp, 60Hz, 3600 Rpm | BB9FDN

WEG 01536ET3H254T-S 13180741 General Purpose Motor, TEAO/TEFC RolLED Steel 254/6T Frame, 15 HP, 3525 RPM, 575 V

Item: BB9FDNModel: 01536ET3H254T-SCross Ref: 13180741
Check Availability
In Stock

Get it by Tuesday, Feb 24

€1,848.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 25 sec.
Connection Cables Quantity 6
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 87%
Efficiency At 50 % 73%
Efficiency At 75 % 83%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 254/6T
Frame Material Rolled Steel
Frame Size 254T
Frequency 60 Hz
Grounding Lugs Superior
Horsepower 15 hp
Hot Locked Rotor Time 14 sec.
Impregnation Method Dip And Bake Polyester
L. R. Amps 94.7A
Locked Rotor Torque 200%
Lrc 6.8X(Code G)
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 0.8718 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3525 RPM
Mounting Foot Mounted
No Load Amps 5.2A
No. Of Poles 2
Noise Level 75 dBA
Output 15 hp
Output Rating 15 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 91
Power Factor At 50 % 89.5
Power Factor At 75 % 91
Product Datasheet weg-01536et3h254t-s.pdf
Rated Current 13.9A
Rated Torque 22.3 lbs.-ft.
Rated Voltage 575V AC
Regreasing System At Drive End And Non Drive End
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.08%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V

Shipping Info:

Ship weight (kg) 90.34
Ship height (cm)2.54
Ship length (cm)57.3
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltageService FactorHpFrequencyMotor Enclosure DesignFull Load AmpsNameplate RpmMotor TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22380-415/460V1.2525 hp50 HzTotally Enclosed Fan Cooled29.9A3550 RPM-€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22380-415/460V1.2550 hp60 HzTotally Enclosed Fan Cooled59.8A3570 RPM-€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC1.2575 hp50/60 HzTotally Enclosed Fan Cooled80.3A3600 RPM-€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC1.251 1/2 hp60 HzTotally Enclosed Fan Cooled1.57A3480 RPMThree Phase€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC1.252 hp60 HzTotally Enclosed Fan Cooled2.05A3475 RPMThree Phase€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V13 hp60 HzTotally Enclosed Fan Cooled2.9A3515 RPMThree Phase€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC1.255 hp60 HzTotally Enclosed Fan Cooled4.72A3485 RPMThree Phase€1,251.50
