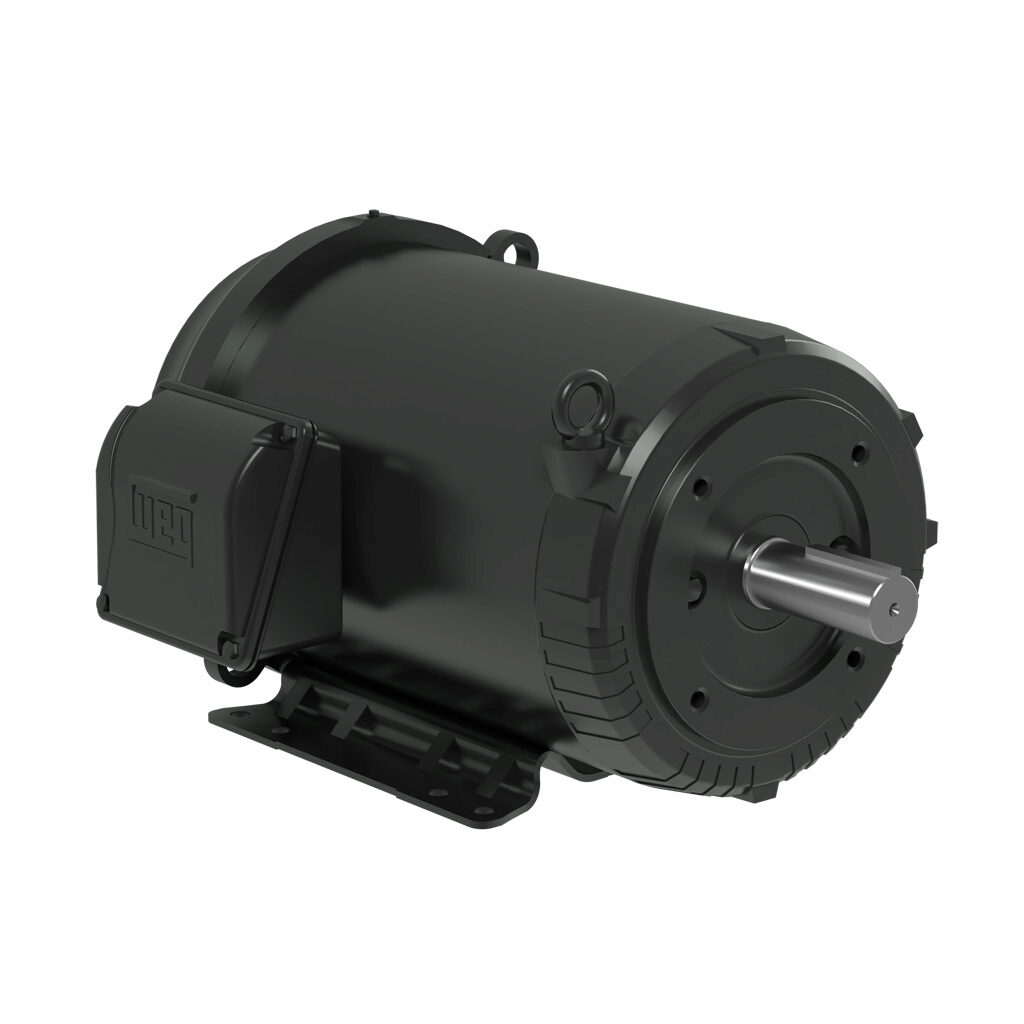

WEG 01518ET3E254TC-S 14122313 General Purpose Motor, TEAO/TEFC RolLED Steel 254/6TC Frame, 15 HP, 1465 RPM, 415 V
1800 rpm
15 hp
256TC
Get it by Tuesday, Jul 14
€1,942.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 20.6A , 36.4/18.2A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 0 sec. , 34 sec. |
| Connection Cables Quantity | 12 |
| Constant Torque Rating | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency | 92.4% |
| Efficiency 50% | 64% |
| Efficiency @ 1 % | 82% |
| Efficiency @ 75 % | 76% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 254/6TC |
| Frame Material | Rolled Steel |
| Frame Size | 254TC |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1045 |
| Grounding Lugs | Superior |
| Grounding Lugs Type | Superior |
| Hot Locked Rotor Time | 19 sec. |
| Hp | 15 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 134A , 237/118A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 6.5X(Code G) , 6.5x(Code H) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Moment Of Inertia | 2.15 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 254TC |
| Motor Speed | 1770 RPM |
| Motor Type | Induction |
| Mounting | C-Face/Rigid Base , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 1770 RPM |
| Nde Bearing Seal | V Ring |
| Nema Design | Design B |
| No Load Amps | 17.3/8.65A , 9.86A |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| Noise Level | 68 dBA |
| Output | 15 hp |
| Output Rating | 15 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 92.4 |
| Power Factor @ 50 % | 91 |
| Power Factor @ 75 % | 92.4 |
| Product Datasheet | weg-01518et3e254tc-s.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Type | Round With Square Key |
| Slip | 1.67% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K , 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 44.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Variable Torque Rating | 1000:1 |
| Voltage | 208-230/460V , 208-230/460V AC , 230/460V AC , 415V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 106.65 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 45.72 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 50/60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
