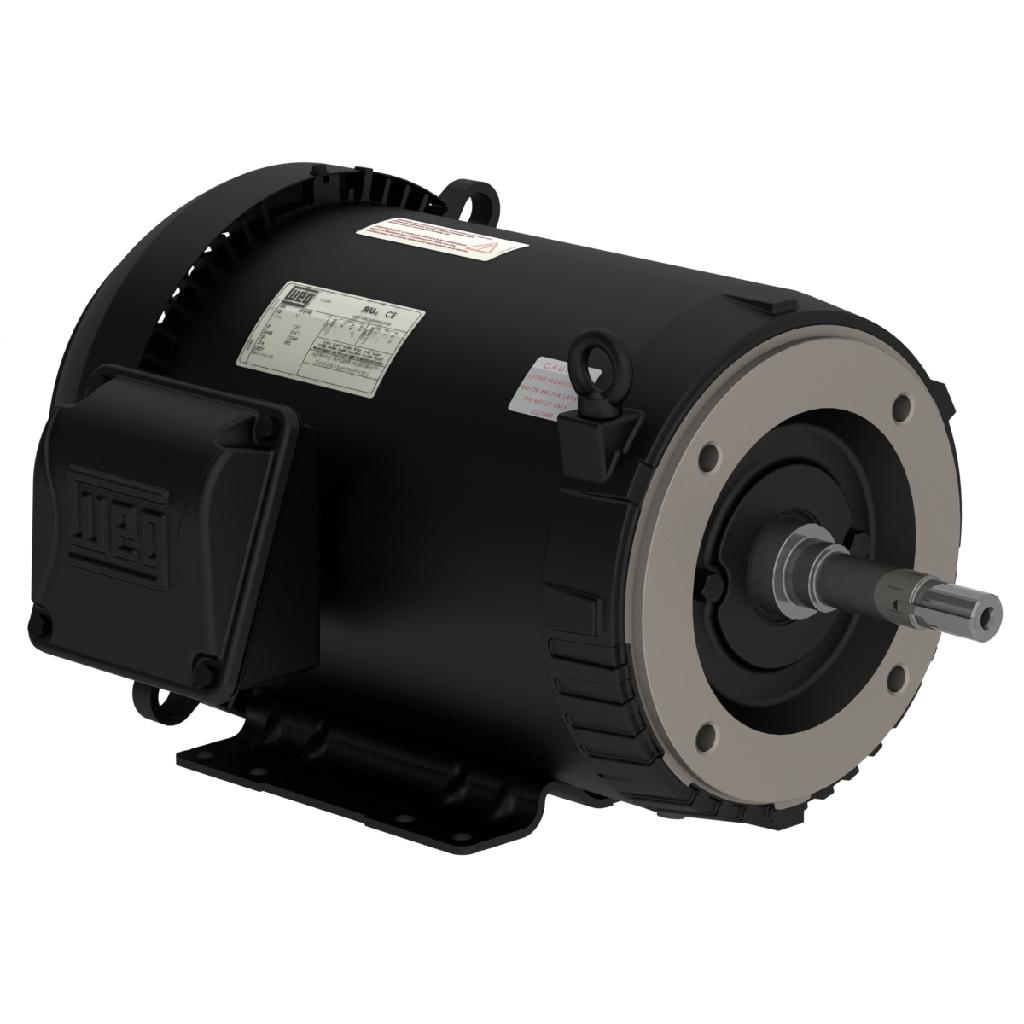

WEG 00736ET3V213JM-S Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BC3HTA

WEG 00736ET3V213JM-S 13440211 Pump Motor, 7.5 HP, 3600 RPM, 200/400 V, 3 Phase, TEFC, 213JM Frame, Footed, Close Coupled Pump

Item: BC3HTAModel: 00736ET3V213JM-SCross Ref: 13440211
Check Availability
In Stock

Get it by Tuesday, Sep 1

€1,650.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 10.2/20.4A
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Break Down Torque 300%
Composition Steel
Connection Cables Quantity 12
Ct Speed Range 2:1
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 89.5%
Efficiency 50% 87.5%
Efficiency 75% 88.5%
Efficiency @ 100% 89.5%
Enclosure IC411
Enclosure Iec IP55
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 213JM
Frame Material Rolled Steel
Frame Size 213/5JM
Frequency 60 Hz
Grounding Lugs Single
Hp 7 1/2 hp
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L. R. Amps 77.5/155A
Locked Rotor Time (cold) 39 sec.
Locked Rotor Time(hot) 22 sec.
Locked Rotor Torque 260%
Main Terminal Box Hole 1.377"
Moment Of Inertia (j) 0.5496 lbs.-sq. ft.
Mounting F-1
Mounting Arrangement F1
Nema Frame NEMA 213-5JM
Nema Mount C Face With Base
No Load Amps 4.03/8.05A
No. Of Poles 2
Noise Level 70 dBA
Output Hp 7 1/2 hp
Output Kw 5.5 kW
Output Rating 7 1/2 hp
Output Speed 3530 RPM
Overload Protection No
Phase 3
Power Factor 100% 0.87
Power Factor 50% 0.72
Power Factor 75% 0.82
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 1.94%
Speed 3400-3600 RPM , 3530 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Code T3 = 200°C
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 11.2 lbs.-ft.
Voltage 200/400V , 200/400V AC

Shipping Info:

Ship weight (kg) 64.8
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
WEG 00736ET3H213TC-W22 Gp Motor, 3 Phase Tefc 7-1/2 Hp, 3530 Rpm 213tc | AA4JDF 12N893 00736ET3H213TC-W22575V AC60 Hz7 1/2 hp1.25Totally Enclosed Fan Cooled7.01AThree PhaseRigid Base€1,568.65
