Hydraulic Crimping Tool System

Filter

Hydraulic crimping tools are suitable for creating a strong and secure connection between wires and terminals. These systems utilise hydraulic pressure to compress a crimping die onto a wire...Read more

GREENLEE -

Quad-Point Crimping Tools, Remote Powered

GREENLEE RK06ATA
GREENLEE RK06FTB
StyleModelMax. Crimping ForceCapacityHeightMax. PressureCrimping ForcePrice
ARK06AT6 ton.500 kcmil2 5/8"10000 psi6.2 ton.€3,703.72
BRK06FT6 ton.750 kcmil2 1/2"10000 psi6.2 ton.€5,606.77
ZURN -

PEX Tools

ZURN QBJ8A
ZURN QBJ6B
ZURN QGA5NC
ZURN QCRRTD
ZURN QGNQCE
StyleModelTypeMaterialSizeMax. Crimping ForceMetal DetectableConnectionPrice
AQBJ8Battery PoweredHardened Steel2"-Yes-€1,199.00
BQBJ6Battery PoweredHardened Steel1 1/4"-Yes-€732.05
CQGA5NCrimp Ring GaugeZinc1"--PEX€14.13
DQCRRTCrimp Ring RemoverHardened Steel-50 lbs.Yes-€70.53
EQGNQCQickclamp GaugeHardened Steel--Yes-€13.87
AEROQUIP -

Hydraulic Crimping Machines

AEROQUIP ET1187-001A
AEROQUIP ET1187-002B
AEROQUIP FT1390-115-12C
StyleModelHeightDepthMax. Crimping ForceTypeMax. PressureCrimping ForceOil CapacityPrice
AET1187-001-----10 ton.36 cu. in.€4,499.70
BET1187-00222"11"----36 cu. in.€4,464.06
CFT1390-115-1249"28"10 ton.High Pressure10000 psi10 ton.-€69,996.58
PANDUIT -

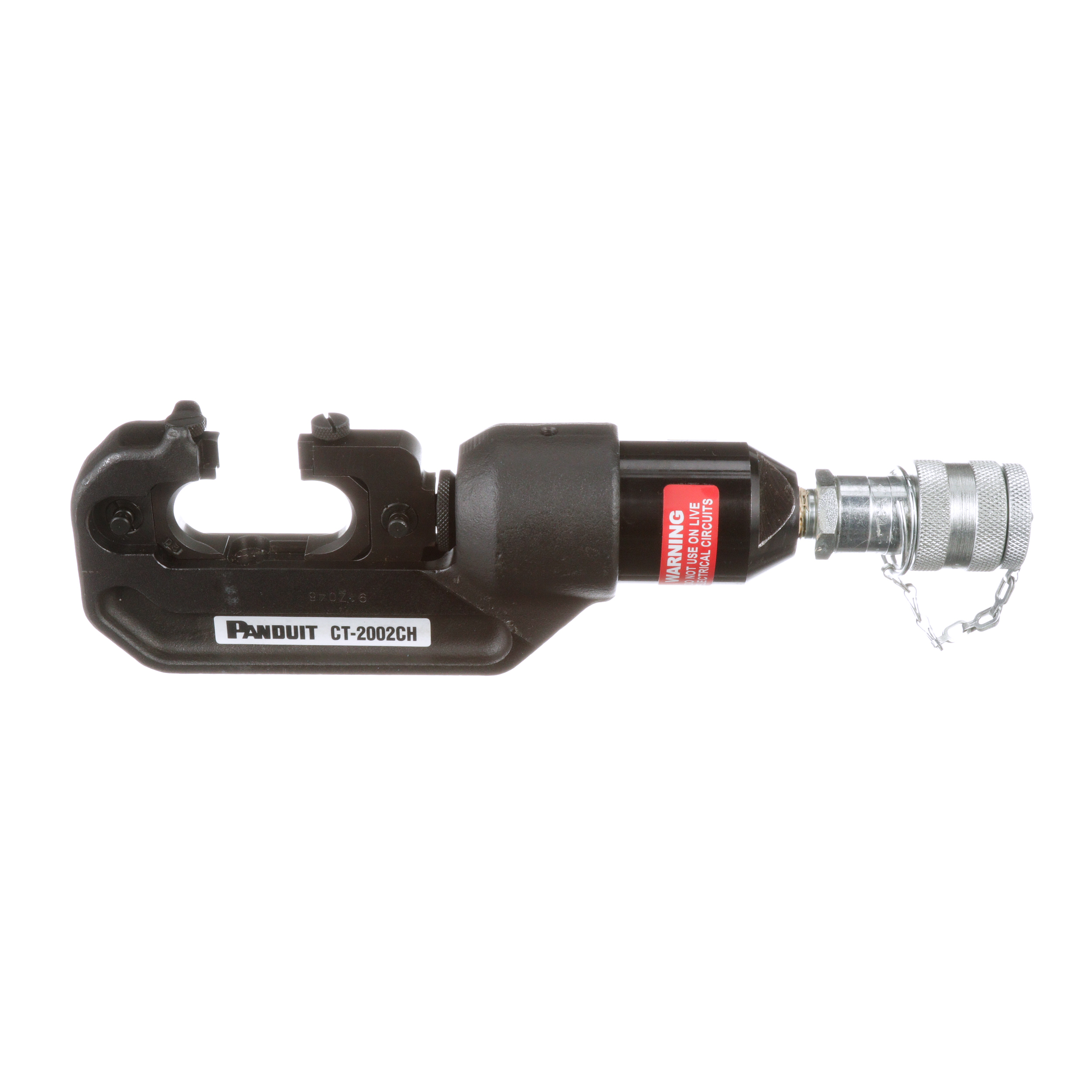

Hydraulic Crimp Head, 12 x 2.2 Inch Size

Hydraulic Crimp Head, 12 x 2.2 Inch Size
ModelItemPrice (ex. VAT)
CT-2002CHEC3XET€2,666.40
ZURN -

Pex Crimp Tool, 1/2 Inch, 3/4 Inch, 3/8 Inch, 5/8 Inch Size, Hardened Steel

Pex Crimp Tool, 1/2 Inch, 3/4 Inch, 3/8 Inch, 5/8 Inch Size, Hardened Steel
ModelItemPrice (ex. VAT)
QCRTMHCE9TTK€217.30
ECLIPSE -

Hydraulic Crimp Tool 12 tons

Hydraulic Crimp Tool 12 tons
ModelItemPrice (ex. VAT)
902-480AH8YTN€924.62
BURNDY -

Hydraulic Crimp Tool

Hydraulic Crimp Tool
ModelItemPrice (ex. VAT)
Y500CTHSAB6XMQ€3,251.76
BURNDY -

Hydraulic Self Contained Crimp Tool

Hydraulic Self Contained Crimp Tool
ModelItemPrice (ex. VAT)
Y644HSXTAB6XMP€4,474.59
BURNDY -

Remote Hydraulic Head

Remote Hydraulic Head
ModelItemPrice (ex. VAT)
Y35BHAB6XKT€4,279.07
BURNDY -

Hypress Covered Head

Hypress Covered Head
ModelItemPrice (ex. VAT)
Y750CHSXTAB6XKR€4,696.32
BURNDY -

Hydraulic Self Contained Crimp Tool

Hydraulic Self Contained Crimp Tool
ModelItemPrice (ex. VAT)
Y750HSXTAB6XKQ€4,107.58
BURNDY -

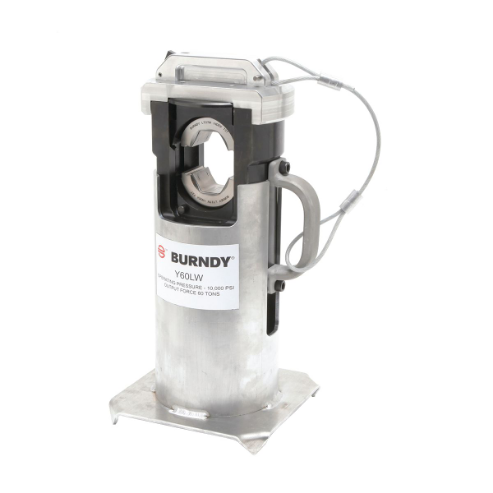

Crimper, 10000 Psi Operating Pressure, 60 Ton Force

Crimper, 10000 Psi Operating Pressure, 60 Ton Force
ModelItemPrice (ex. VAT)
Y60LWCF4AVJ€6,427.21
AEROQUIP -

Hydraulic Hose Crimping Machine, 1 1/4 Inch Max, Hydraulic-Powered, 115V, Bench Mount

Hydraulic Hose Crimping Machine, 1 1/4 Inch Max, Hydraulic-Powered, 115V, Bench Mount
ModelItemPrice (ex. VAT)
FT1380-115-8AA2BCA€26,067.91
PANDUIT -

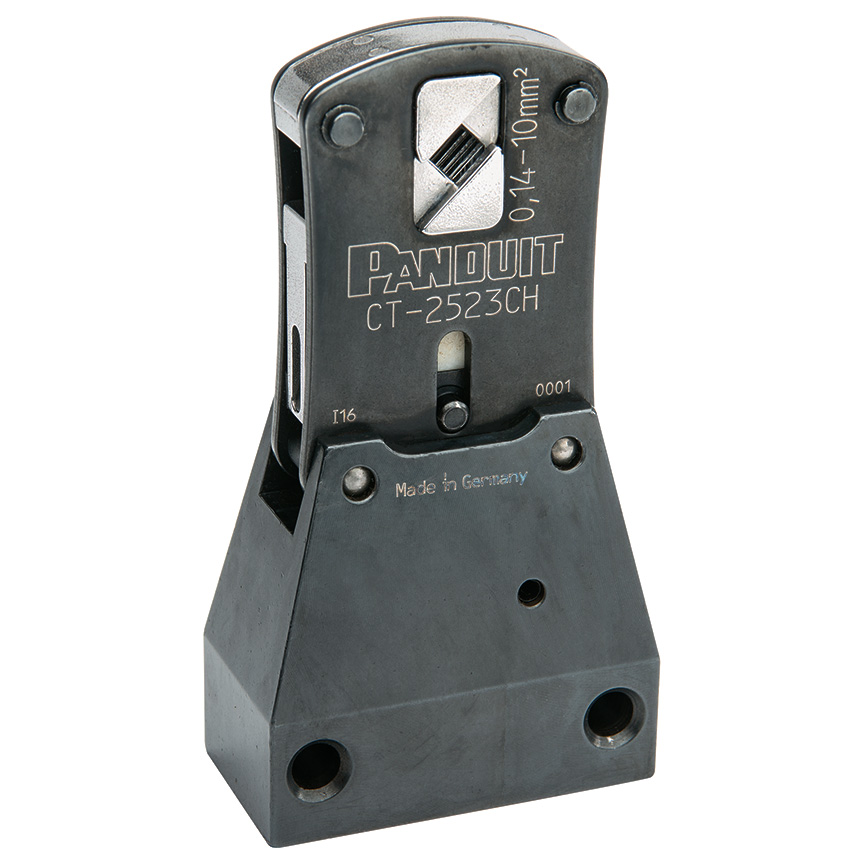

Crimp Head, 2 x 1 Inch Size

Crimp Head, 2 x 1 Inch Size
ModelItemPrice (ex. VAT)
CT-2523CHEC3XEY€884.40
AEROQUIP -

Hydraulic Hose Crimping Machine, 1 1/4 Inch Max, Manual, Bench Mount, 35.3 ton Force

Hydraulic Hose Crimping Machine, 1 1/4 Inch Max, Manual, Bench Mount, 35.3 ton Force
ModelItemPrice (ex. VAT)
ET1000-001AE2NJE€3,267.98
PARKER -

Hydraulic Hose Crimp Machine Bench Mount

Hydraulic Hose Crimp Machine Bench Mount
ModelItemPrice (ex. VAT)
80C-061AB6DXV€15,434.87
PANDUIT -

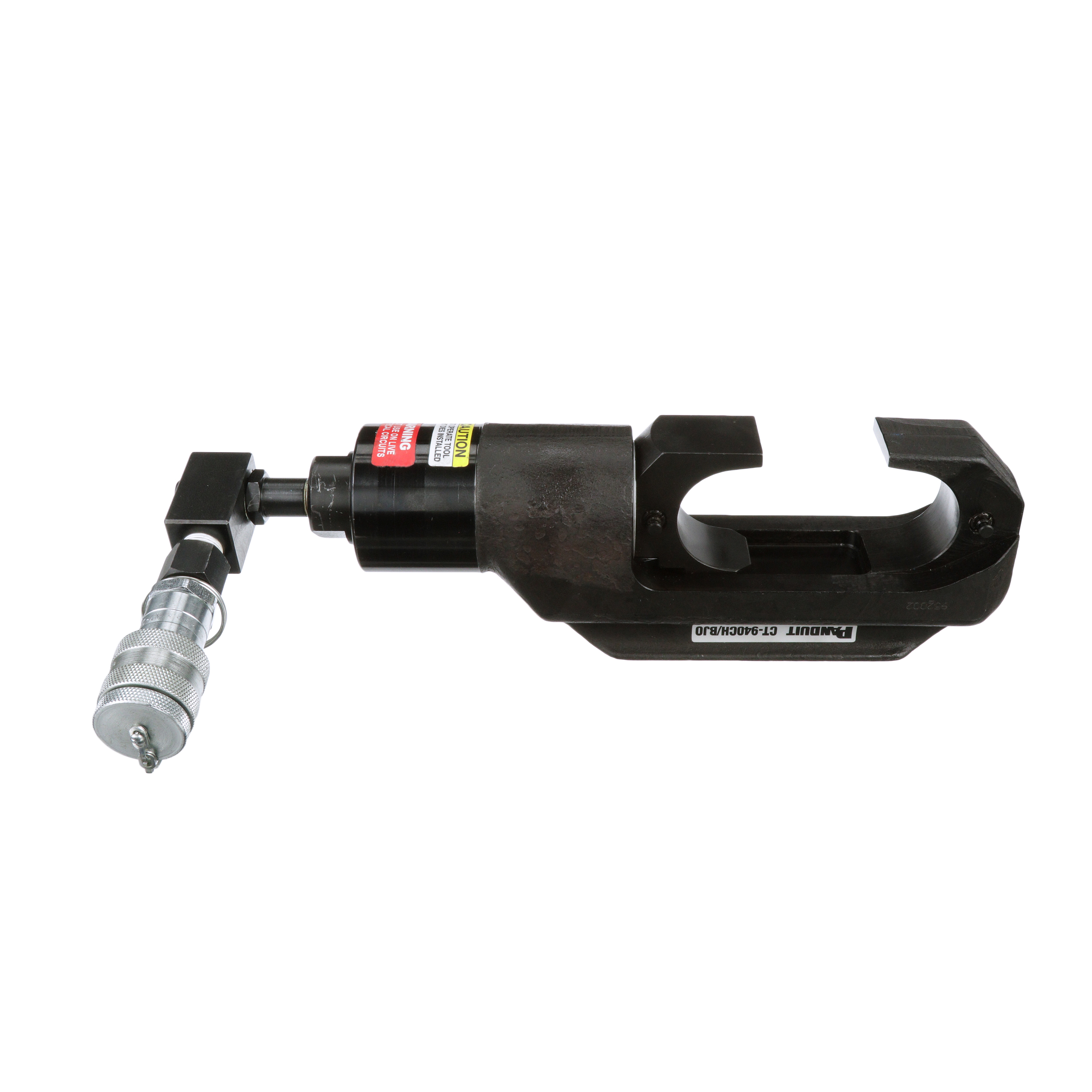

Hydraulic Crimp Head, 14.5 x 2.5 Inch Size

Hydraulic Crimp Head, 14.5 x 2.5 Inch Size
ModelItemPrice (ex. VAT)
CT-940CH/BJOEC3XGD€6,547.20
ECLIPSE -

TuffCrimp Dieless 6 Ton Crimping Tool

TuffCrimp Dieless 6 Ton Crimping Tool
ModelItemPrice (ex. VAT)
902-544CY7JMN€1,366.19
RFQ
PANDUIT -

Hydraulic Crimp Head, 15 x 2.5 Inch Size

Hydraulic Crimp Head, 15 x 2.5 Inch Size
ModelItemPrice (ex. VAT)
CT-940CHEC3XGC-
RFQ
PANDUIT -

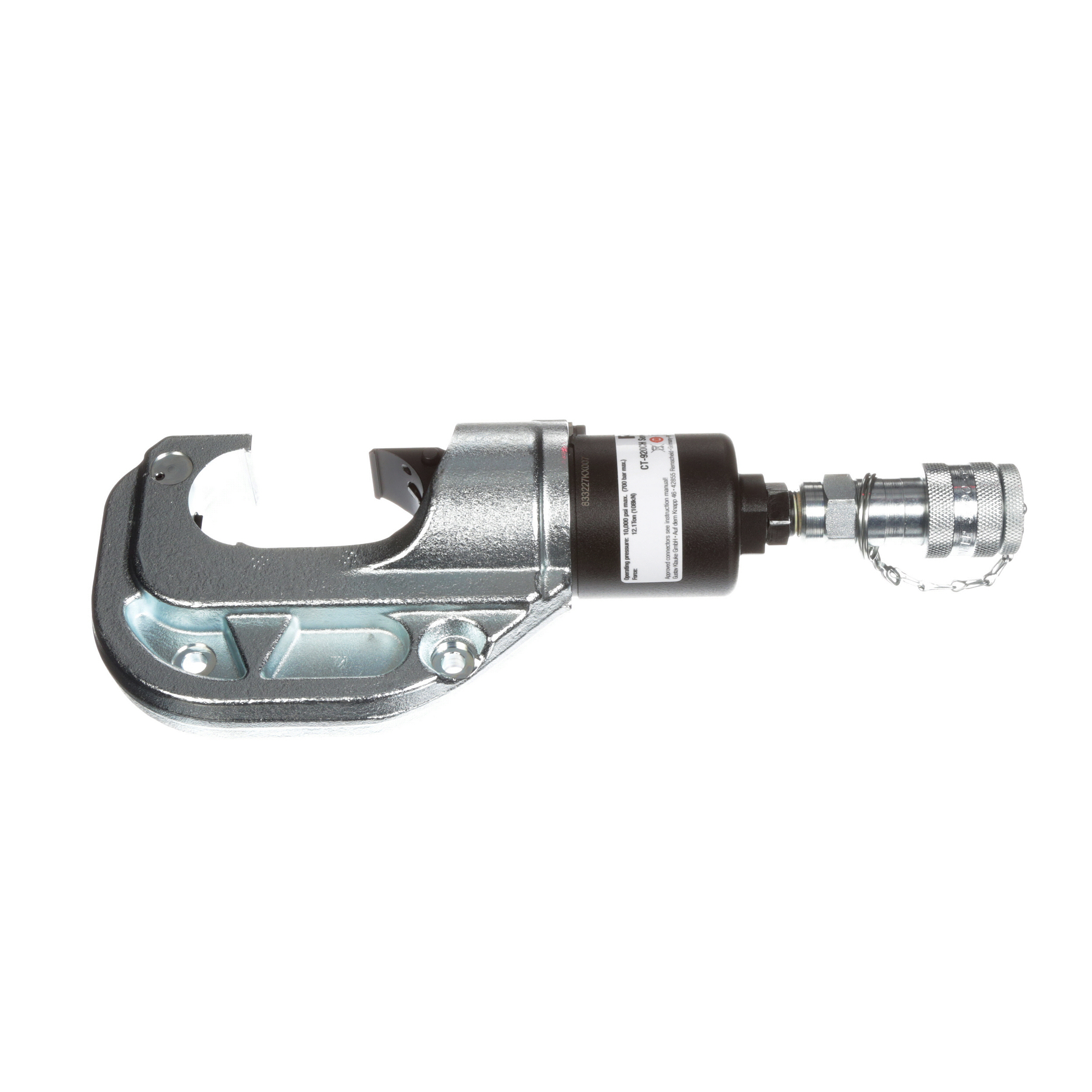

Hydraulic Crimp Head, 5.1 Inch Height

Hydraulic Crimp Head, 5.1 Inch Height
ModelItemPrice (ex. VAT)
CT-920CHEC3XFY-
RFQ
BURNDY -

Pole Tool, 6 Ton Crimp Force, 82 Inch Length, 3.0Ah Battery

Pole Tool, 6 Ton Crimp Force, 82 Inch Length, 3.0Ah Battery
ModelItemPrice (ex. VAT)
PATMD6682ALLIFWCJEE6FLR€7,450.52
RFQ
12

Hydraulic Crimping Tool System

Crimping tools are best suited for crimping braided, spiral, thermoplastic & teflon hoses, C- & H-taps, lugs and overhead tension sleeves. Raptor Supplies offers a wide array of Aeroquip, Burndy, Eaton, Eclipse, Greenlee, Parker and Thomas & Betts hydraulic crimping tools. Eclipse hydraulic crimpers feature an interchangeable die for eliminating the requirement of additional tools, a flexible head capable of rotating up to 360 degrees and a built-in safety valve for bypassing oil levels upon reaching the maximum pressure limit. Selected models from Eaton feature a positive stop crimp diameter control for facilitating consistent crimping without any requirement of prior adjustments or calibrations, variable frame position for ease-of-installation and a hinged handle for fatigue-free operation with maximum gripping action. Choose from an extensive range of these tools available in pressure ratings ranging from 2500 to 10000 psi.

Working Mechanism

  • These crimping tools consist of a hydraulic pump, crimping head and interchangeable dies to perform the crimping process.
  • The hydraulic pump creates the necessary pressure to operate the crimping head.
  • The head of the crimping tool houses the dies and is attached to the hydraulic pump. It helps to position the dies in the correct location to make a crimp.
  • These pressure welding tools come with a set of interchangeable dies with different shapes and sizes to accommodate different wire and terminal sizes.
  • The wire and terminal are placed into the correct position between the dies.
  • Once correctly positioned, the operator can activate the hydraulic pump to apply pressure to the crimping die.
  • The crimping die compresses onto the wire and terminal, thereby creating a secure and reliable electrical connection.
  • Once the crimping is complete, the pressure is released and the wire & terminal can be removed from the dies.

Frequently Asked Questions

What is a spacer ring?

A spacer ring is a circular metal piece placed on the end of the hose or fitting before it is inserted into the collet assembly to prevent it from slipping and shifting during the crimping process.

What is the function of a sliding pusher?

A sliding pusher is a metal rod designed to apply pressure to the hose or fitting to ensure it is held in place while the crimp is being made.

What is the use of a test slug?

A test slug is a device that tests the calibration and performance of the crimping tool. It is a specially designed metal piece that is crimped using the tool being tested. If the slug achieves a proper crimp by providing a measured force, the user can determine that the tool is properly calibrated and performing within industry standards.
