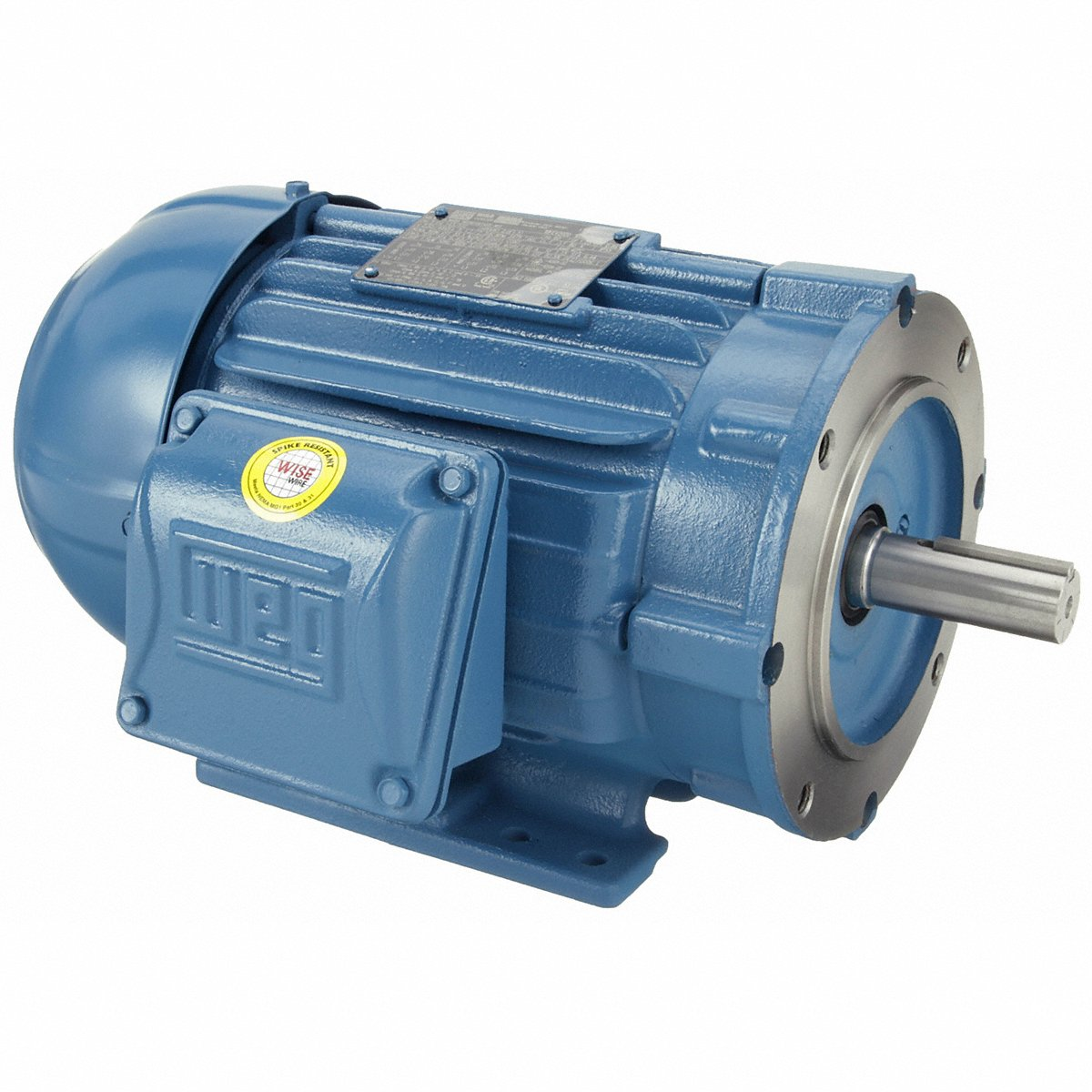

WEG 00236ET3E145TC-W22 Motor, 3 Phase, 2 Hp, 3480 208-230/460V, Eff 85.5 | AE8TBX 6FDP7

WEG 00236ET3E145TC-W22 11606710 Motor, 3 Phase, 2 Hp, 3480 208-230/460V, Eff 85.5

Item: AE8TBXModel: 00236ET3E145TC-W22Cross Ref: 6FDP7 / 11606710
Check Availability
In Stock

Get it by Tuesday, Jul 14

€778.43
5.00% off
€739.51 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Application W22
Base Type Rigid Base
Bearing Type Ball
Cc Number CC029A
Color Ral
Duty Cycle Continuous
Efficiency 50%
Efficiency 85.5%
Efficiency @ 100% 85.5%
Efficiency Group Premium
Enclosure Type Tefc
Frame 143/5T , 145TC
Frame Material Cast Iron
Frequency 60 Hz
Front Bearing Type Deep Groove Ball Bearing
Full Load Amps 2.56/5.12-5.6A , 5.12/2.56A
Full Load Amps @ 50 Hz 2.19/2.22/2.3/2.82/2.9/3.07A
Hp 2 hp
Hp @ 50 Hz 1 1/2 hp
Ins. Class Class F
Insulation Class Class F
Inverter Rated Yes
Length Less Shaft 11 1/8"
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position All Angle
Motor Mounting Type Face, Base
Motor Mounting Type Face/Base
Motor Service Factor 1.25
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation CW, CCW
Motor Type Three Phase
Mounting B34R
Mounting Type Face, Base
Nameplate Speed 3475 RPM
Nema Design B
No Load Amps 0.99/1.98A
No. Of Poles 2
No. Of Speeds 1
Noise 68 dBA
Nominal Efficiency 85.5%
Overall Length 13 3/8"
Phase 3
Polarity 2
Power Factor 75%
Power Factor 100% 0.86
Product Datasheet weg-00236et3e145tc-w22.pdf
Rear Bearing Insulation Non Insulated
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Speed 3001-3600 RPM , 3400-3600 RPM
Thermal Protect Phase Shutdown Without
Thermal Protection None
Torque 2.98 lbs.-ft.
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230/380/460V , 230/460V AC

Shipping Info:

Ship weight (kg) 24.75
Ship height (cm)22.86
Ship length (cm)33.93
Ship width (cm)29.21
HS code8501524000
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22380-415/460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22380-415/460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC50/60 Hz75 hp1.25Totally Enclosed Fan Cooled80.3A-Face, Base€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
