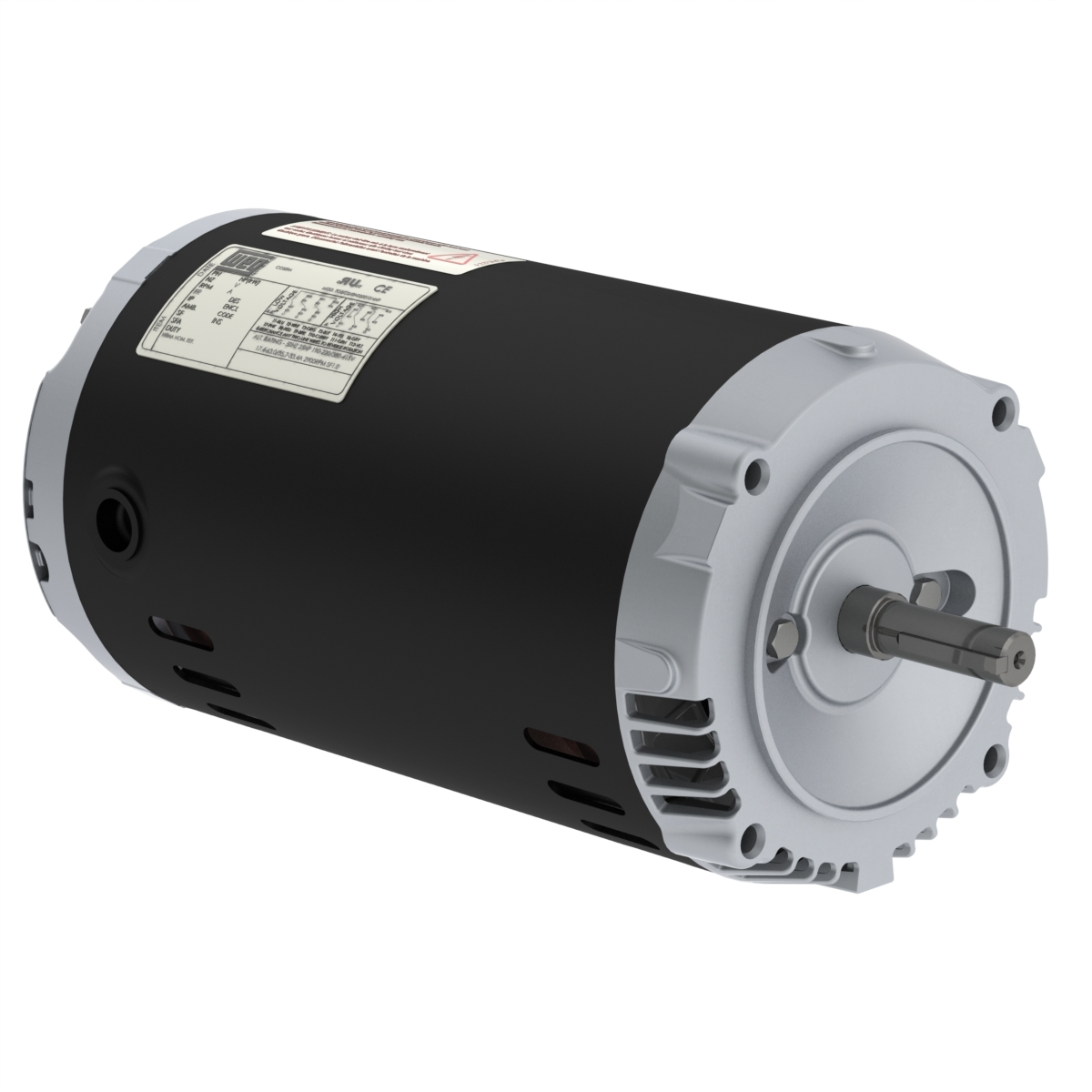

WEG 00218OT3E56CFL-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB9TTZ

WEG 00218OT3E56CFL-S 13373691 General Purpose Motor, ODP RolLED Steel 56C Frame, 2 HP, 1430 RPM, 415 V

Item: BB9TTZModel: 00218OT3E56CFL-SCross Ref: 13373691
Check Availability
In Stock

Get it by Monday, Apr 6

€476.03 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 320%
Breakdown Torque 320%
Cold Locked Rotor Time 30 sec.
Composition Steel
Connection Cables Quantity 9
Design A
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 86.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 86.5%
Efficiency At 1 % 81%
Efficiency At 50 % 61%
Efficiency At 75 % 74%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 17 sec.
Hp 2 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 41.4/20.7A
L.r. Amperes 20.7/41.4A
Locked Rotor Time (cold) 30 sec.
Locked Rotor Time (hot) 17 sec.
Locked Rotor Torque 260%
Lrc 7.7X(Code K)
Moment Of Inertia 0.1168 lbs.-sq. ft.
Moment Of Inertia (j) 0.1168 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1740 RPM
Mounting F-1 , Footless
No Load Amps 1.38/2.75A , 2.75/1.38A
No. Of Poles 4
Noise Level 52 dBA
Output 2 hp
Output Rating 2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 50% 0.61
Power Factor 75% 0.74
Power Factor At 1 % 86.5
Power Factor At 50 % 85.5
Power Factor At 75 % 86.5
Power Factor_100% 0.81
Rated Current 2.69/5.38A , 5.38/2.69A
Rated Speed 1740 RPM
Rated Torque 6.04 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 18
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelPhaseService FactorFrequencyHpRpmFrameSynchronous SpeedMountingPrice
WEG .2518OT3E56CFL-S Electric Motor, 1/4Hp, 60Hz, 1800 Rpm | BB8LNG .2518OT3E56CFL-S31.3560 Hz1/4 hp1700-1800 RPM56C1800 RPMFootless€313.77
WEG 00236OT3E56CFL-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9AFM 00236OT3E56CFL-S31.1550/60 Hz-3400-3600 RPM563600 RPMFootless€553.58
WEG .3318OT3E56CFL-S Electric Motor, 1/3Hp, 60Hz, 1800 Rpm | BB9AJN .3318OT3E56CFL-S31.3550/60 Hz1/3 hp1700-1800 RPM56C1800 RPMFootless€338.84
WEG .7536OS3EJPR56J-S48P WEG .7536OS3EJPR56J-S48P | BB9BDY .7536OS3EJPR56J-S48P--------€312.50
WEG 00156OT3E56CFL-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB9FUJ 00156OT3E56CFL-S31.1550/60 Hz1 1/2 hp3400-3600 RPM563600 RPMFootless€486.77
WEG 00336OT3E56CFL-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9GLK 00336OT3E56CFL-S31.1550/60 Hz-3400-3600 RPM563600 RPMFootless€612.05
WEG .7518OT3H56CFL-S Electric Motor, 3/4Hp, 60Hz, 1800 Rpm | BB9JLE .7518OT3H56CFL-S31.2560 Hz3/4 hp1700-1800 RPM56C1800 RPMFootless€427.12
