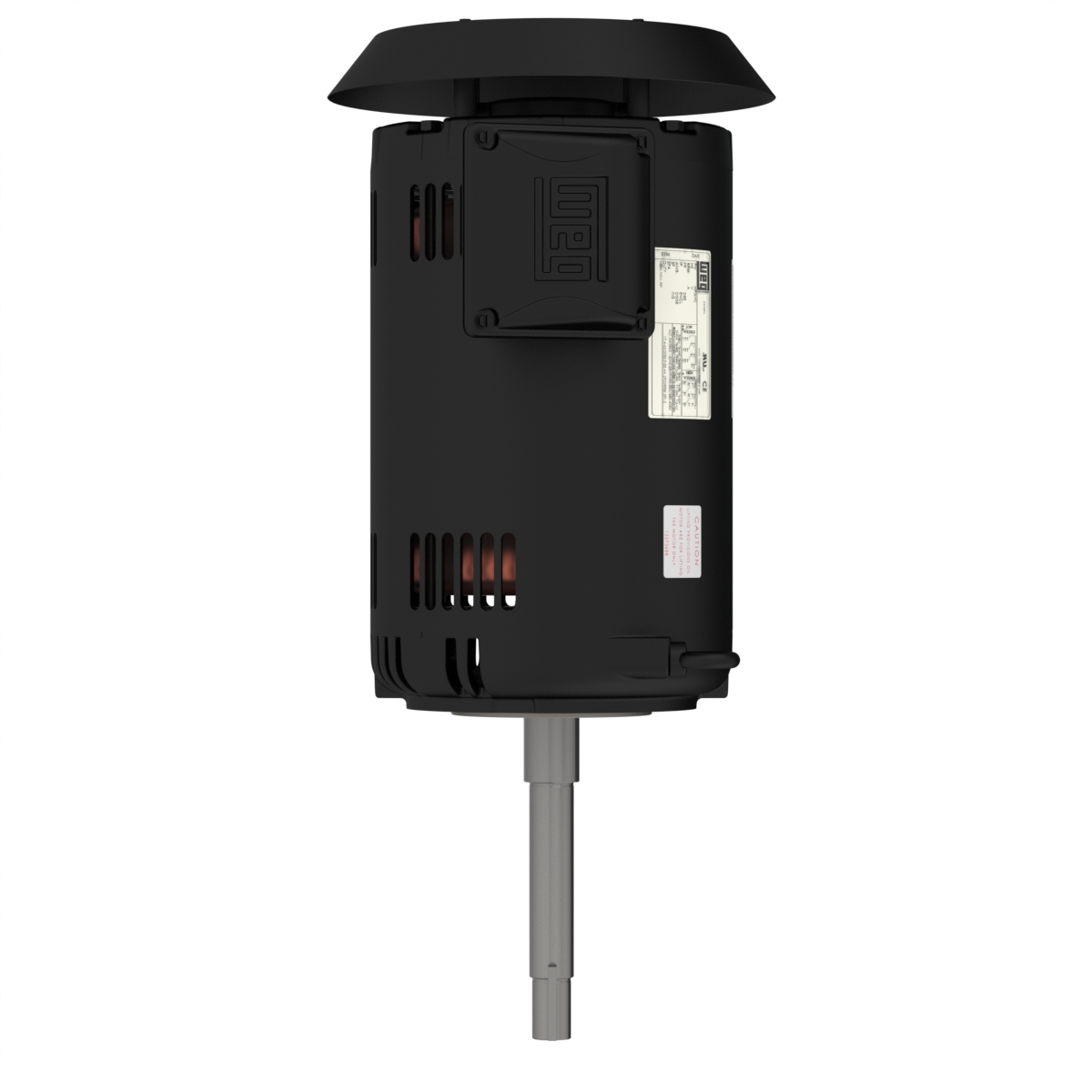

WEG 00736OT3E184JPV-S Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BC3HTK

WEG 00736OT3E184JPV-S 13482794 Pump Motor, 7.5 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 184JPV Frame, Footless, Close Coupled Pump, Vertical

Item: BC3HTKModel: 00736OT3E184JPV-SCross Ref: 13482794
Check Availability
In Stock

Get it by Tuesday, Apr 7

€1,277.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Breakdown Torque 300%
Composition Steel
Connection Cables Quantity 9
Ct Speed Range 2:1
Drip Cover With
Duty Cycle S1
Efficiency 88.5%
Efficiency @ 100% 88.5%
Efficiency @ 50% 88.5%
Efficiency @ 75% 88.5%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Frame 184JPV
Frame Material Rolled Steel
Frame Size 182/4JP
Frequency 50/60 Hz
Grounding Lugs Single
Hp 7 1/2 hp
Hz 60 Hz
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L.r. Amperes 66.4/133A
Locked Rotor Time (cold) 21 sec.
Locked Rotor Time (hot) 12 sec.
Locked Rotor Torque 200%
Main Terminal Box Hole 1.118"
Moment Of Inertia (j) 0.1818 lbs.-sq. ft.
Mounting W-6
Mounting Arrangement W6
Mounting Orientation Vertical
Nema Frame NEMA 182-4JP
Nema Mount C Face No Base
No Load Amps 3.9/7.8A
Noise Level 65 dBA
Number Of Poles 2
Output Hp 7 1/2 hp
Output Kw 5.5 kW
Output Rating 7 1/2 hp
Output Rpm 3500 RPM
Overload Protection No
Phase 3
Power Factor 50% 0.72
Power Factor 75% 0.82
Power Factor_100% 0.87
Rated Current 8.97/17.9A
Rated Speed 3500 RPM
Rated Torque 11.3 lbs.-ft.
Replaces 00736OP3E184JPV
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 37.8
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS
