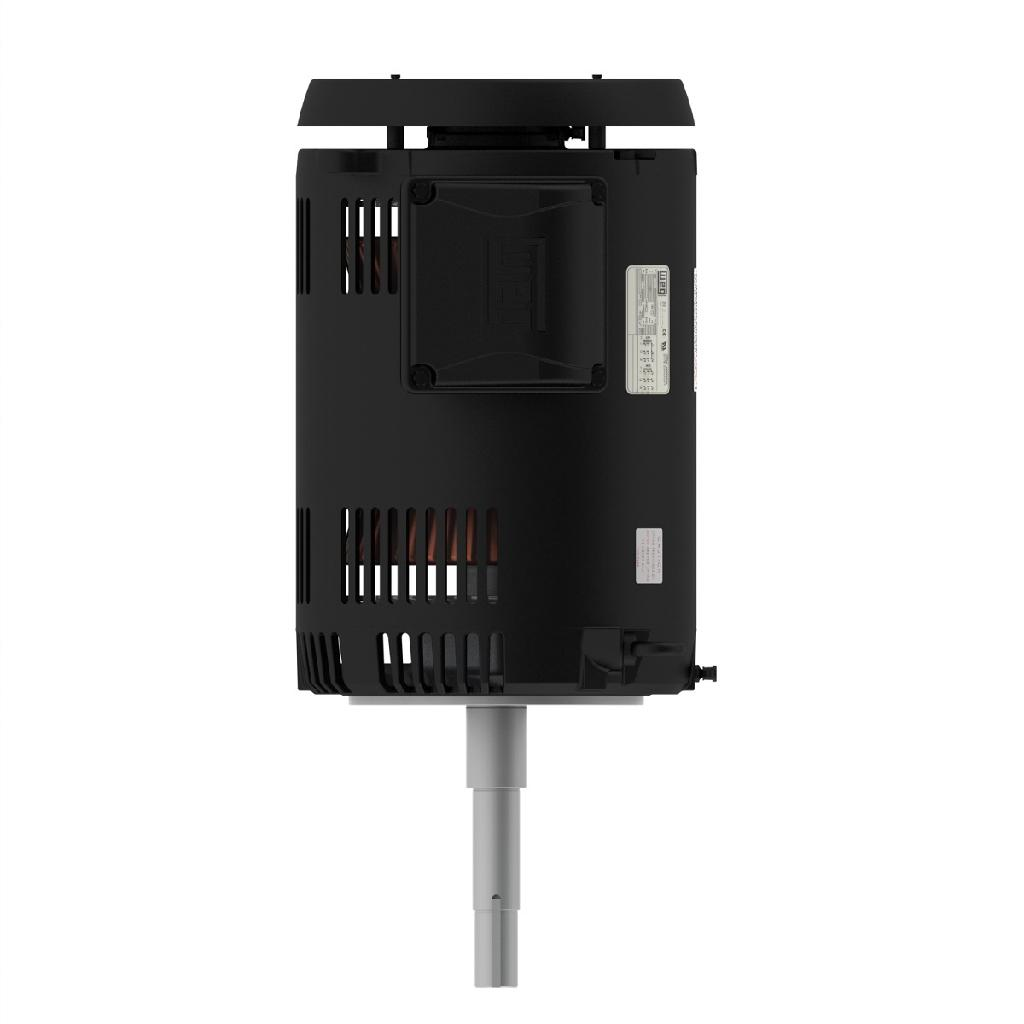

WEG 01036OT3E213JPV-S 13482978 Pump Motor, 10 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 213JPV Frame, Footless, Close Coupled Pump, Vertical
Get it by Thursday, Feb 19
€1,635.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Application | Closed Coupled |
| Body Design | Rolled Steel |
| Composition | Steel |
| Ct Speed Range | 2:1 |
| Efficiency | 89.5% |
| Enclosure Type | ODP |
| Frame | 213JPV |
| Frame Size | 213JP |
| Frequency | 50/60 Hz |
| Hp | 10 hp |
| Hz | 60 Hz |
| Inverter Rating | Inverter Ready |
| Mounting Arrangement | W6 |
| Mounting Orientation | Vertical |
| Nema Frame | NEMA 213-5JP |
| Nema Mount | C Face No Base |
| Output Hp | 10 hp |
| Output Kw | 7.5 kW |
| Output Rpm | 3535 RPM |
| Phase | 3 |
| Replaces | 01036OP3E213JPV-S |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 62.1 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Phase | Service Factor | Frequency | Hp | Rpm | Frame | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| .2518OT3E56CFL-S | 3 | 1.35 | 60 Hz | 1/4 hp | 1700-1800 RPM | 56C | 1800 RPM | Footless | €313.77 | |
| 00236OT3E56CFL-S | 3 | 1.15 | 50/60 Hz | - | 3400-3600 RPM | 56 | 3600 RPM | Footless | €553.58 | |
| .3318OT3E56CFL-S | 3 | 1.35 | 50/60 Hz | 1/3 hp | 1700-1800 RPM | 56C | 1800 RPM | Footless | €338.84 | |
| 00156OT3E56CFL-S | 3 | 1.15 | 50/60 Hz | 1 1/2 hp | 3400-3600 RPM | 56 | 3600 RPM | Footless | €486.77 | |
| 00336OT3E56CFL-S | 3 | 1.15 | 50/60 Hz | - | 3400-3600 RPM | 56 | 3600 RPM | Footless | €612.05 | |
| .7518OT3H56CFL-S | 3 | 1.25 | 60 Hz | 3/4 hp | 1700-1800 RPM | 56C | 1800 RPM | Footless | €427.12 | |
| .7518OT3E56CFL-S | 1 | 1.25 | 60 Hz | - | 3400-3600 RPM | 56C | 1800 RPM | Footless | €427.12 |
