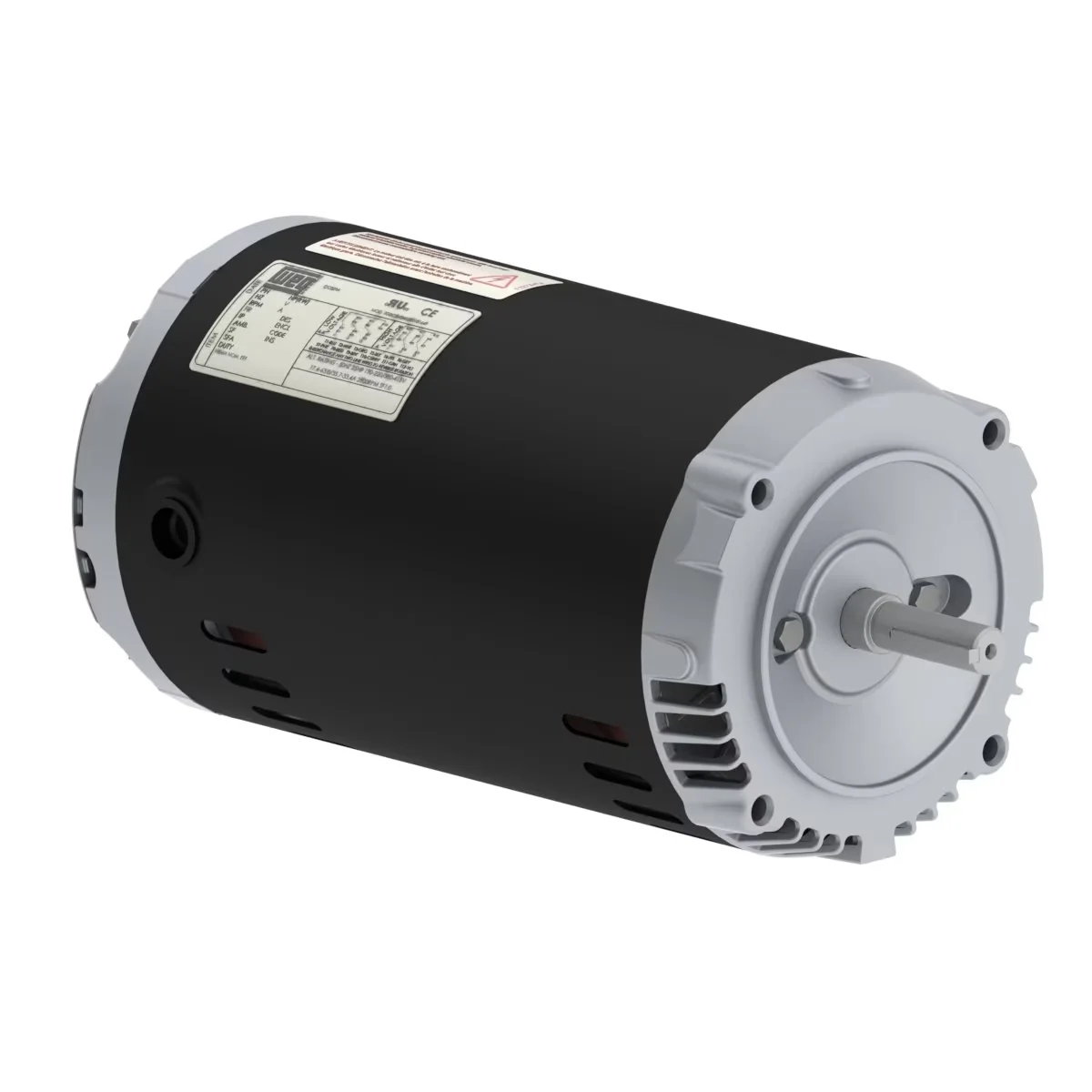

WEG 00336OT3E56CFL-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9GLK

WEG 00336OT3E56CFL-S 12812241 General Purpose Motor, ODP RolLED Steel 56C Frame, 3 HP, 2860 RPM, 415 V

Item: BB9GLKModel: 00336OT3E56CFL-SCross Ref: 12812241
Check Availability
In Stock

Get it by Tuesday, Aug 18

€612.05 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 m.a.s.l. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 41A , 7.18/3.59A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cold Locked Rotor Time 14 sec. , 16 sec.
Connection Cables Quantity 9
De Bearing Seal No
Design A
Drip Cover Without
Duty Cycle Cont.(S1) , Continuous
Efficiency 50% 76%
Efficiency @ 1 % 90%
Efficiency @ 75 % 86%
Enclosure Rating IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame 56
Frame Material Rolled Steel
Frequency 50 Hz , 50/60 Hz , 60 Hz
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 9 sec.
Hp 3 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
L. R. Amps 29.7A , 57.4/28.7A
Locked Rotor Time(hot) 8 sec.
Locked Rotor Torque 229%
Lrc 7.4x(Code J) , 8.0X(Code J)
Moment Of Inertia 0.1279 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3480 RPM
Mounting Footless , Footless, F-1
Nde Bearing Seal No
No Load Amps 2.6/1.3A
No. Of Poles 2
Noise Level 62 dBA
Output 3 hp
Output Rating 3 hp
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Power Factor @ 1 % 85.5
Power Factor @ 50 % 84
Power Factor @ 75 % 85.5
Product Datasheet weg-00336ot3e56cfl-s.pdf
Resilient Base Without
Rotation CW And CCW , CW, CCW
Service Factor 1.15 , 1.15 (1 @ 208V)
Shaft Material Carbon Steel , SAE 1040/45 Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 105 K , 80 K
Terminal Box Without Terminal Box
Torque 4.53 lbs.-ft.
Tropicalized Painting Without
Voltage 230/460V , 230/460V AC , 415V

Shipping Info:

Ship weight (kg) 18.33
Ship height (cm)2.54
Ship length (cm)33.2
Ship width (cm)2.54
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelPhaseFrequencyService FactorHpFrameNo. Of PolesSynchronous SpeedInsulation ClassPrice
WEG .2518OT3E56CFL-S Electric Motor, 1/4Hp, 60Hz, 1800 Rpm | BB8LNG .2518OT3E56CFL-S360 Hz1.351/4 hp56C41800 RPMClass F€313.77
WEG 00236OT3E56CFL-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9AFM 00236OT3E56CFL-S350 Hz1.15-5623600 RPMF€553.58
WEG .3318OT3E56CFL-S Electric Motor, 1/3Hp, 60Hz, 1800 Rpm | BB9AJN .3318OT3E56CFL-S360 Hz1.351/3 hp56C41800 RPMClass F€338.84
WEG 00156OT3E56CFL-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB9FUJ 00156OT3E56CFL-S360 Hz1.151 1/2 hp5623600 RPMF€486.77
WEG .7518OT3H56CFL-S Electric Motor, 3/4Hp, 60Hz, 1800 Rpm | BB9JLE .7518OT3H56CFL-S360 Hz1.253/4 hp56C41800 RPMF€427.12
WEG .7518OT3E56CFL-S Electric Motor, 3/4Hp, 60Hz, 3600 Rpm | BB9LDU .7518OT3E56CFL-S160 Hz1.25-56C41800 RPMClass F€427.12
WEG .7536OT3E56CFL-S Electric Motor, 3/4Hp, 60Hz, 3600 Rpm | BB9QVG .7536OT3E56CFL-S360 Hz1.253/4 hp56CFL23600 RPMClass F€397.29
