WEG 00536OT3E182JPV-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BC3HNU

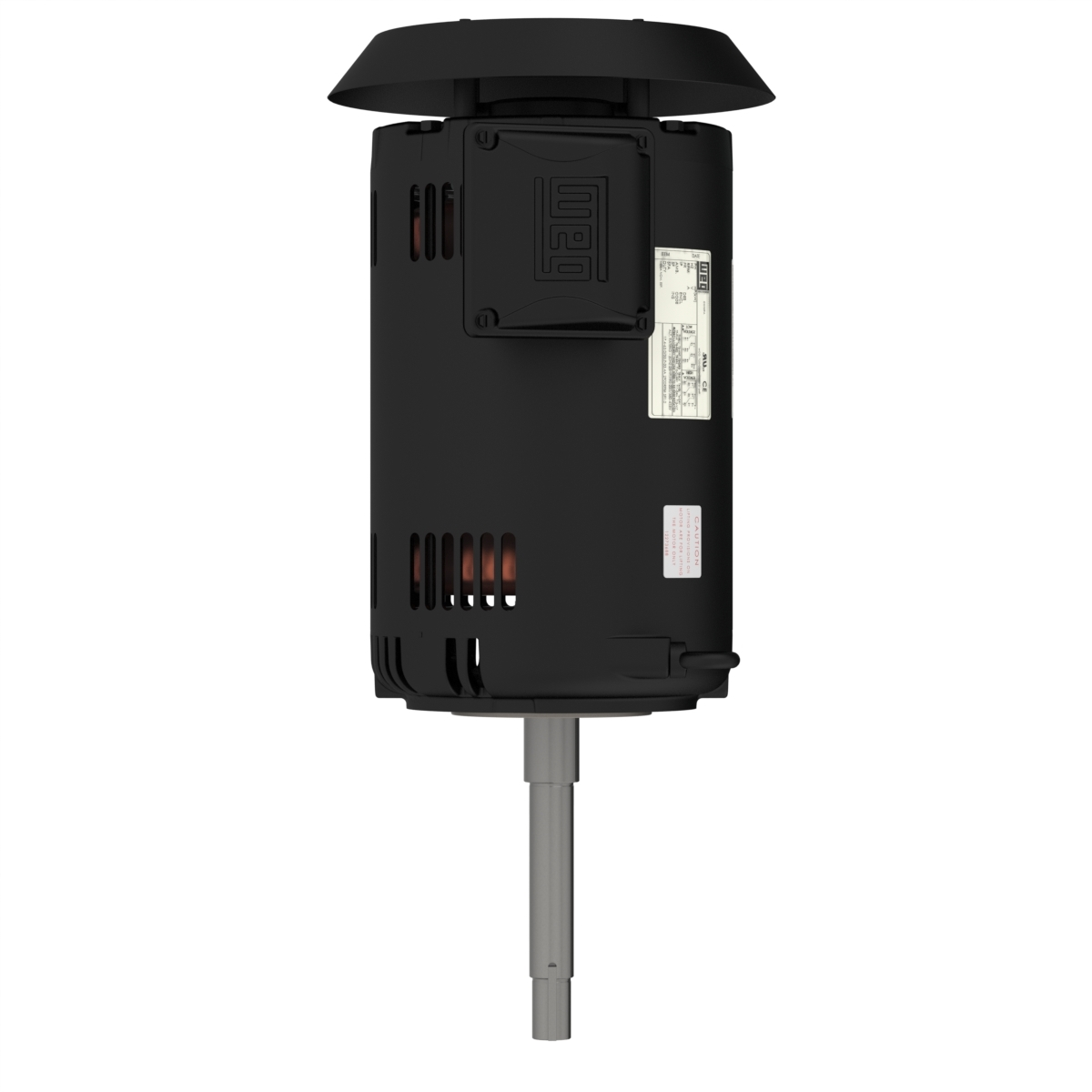

WEG 00536OT3E182JPV-S 13500931 Pump Motor, 5 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 182JPV Frame, Footless, Close Coupled Pump, Vertical

Item: BC3HNUModel: 00536OT3E182JPV-SCross Ref: 13500931
Check Availability
In Stock

Get it by Friday, Apr 3

€1,014.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Breakdown Torque 300%
Cable Press Material Sem
Composition Steel
Connection Cables Quantity 9
Ct Speed Range 2:1
Drip Cover With
Duty Cycle S1
Efficiency 86.5%
Efficiency @ 100% 86.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 86.5%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Frame 182JPV
Frame Material Rolled Steel
Frame Size 182/4JP
Frequency 60 Hz
Grounding Lugs Single
Hp 5 hp
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L.r. Amperes 48/96.1A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 190%
Main Terminal Box Hole 1.118"
Moment Of Inertia (j) 0.1386 lbs.-sq. ft.
Mounting W-6
Mounting Arrangement W6
Mounting Orientation Vertical
Nema Frame NEMA 182-4JP
Nema Mount C Face No Base
No Load Amps 3.1/6.2A
Noise Level 65 dBA
Number Of Poles 2
Output Hp 5 hp
Output Kw 3.7 kW
Output Rating 5 hp
Output Rpm 3510 RPM
Overload Protection No
Phase 3
Power Factor 50% 0.66
Power Factor 75% 0.78
Power Factor_100% 0.85
Rated Current 6.32/12.6A
Rated Speed 3510 RPM
Rated Torque 7.48 lbs.-ft.
Replaces 00536OP3E182JPV
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 32.4
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS
