WEG 00156OT3E56CFL-S 12812393 General Purpose Motor, ODP Rolled Steel 56C Frame, 1.5 HP, 2910 RPM, 415V, Footless
3600 rpm
1.5 hp
56CFL
208-230/460V
Get it by Tuesday, Aug 18
€486.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 29A , 3.7/1.85A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 330% |
| Cold Locked Rotor Time | 32 sec. , 36 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 73% |
| Efficiency @ 1 % | 89% |
| Efficiency @ 75 % | 83% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 20 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 16.3A , 31.8/15.9A |
| Locked Rotor Time(hot) | 18 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 7.8x(Code J) , 8.6X(Code K) |
| Moment Of Inertia | 0.0835 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3510 RPM |
| Mounting | Footless , Footless, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 0.977A , 1.62/0.809A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 84 |
| Power Factor @ 50 % | 81.5 |
| Power Factor @ 75 % | 84 |
| Product Datasheet | weg-00156ot3e56cfl-s.pdf |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 , 1.15 (1 @ 208V) |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Speed | 2910 RPM , 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 2.24 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 30.2 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Phase | Frequency | Service Factor | Hp | Frame | No. Of Poles | Synchronous Speed | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

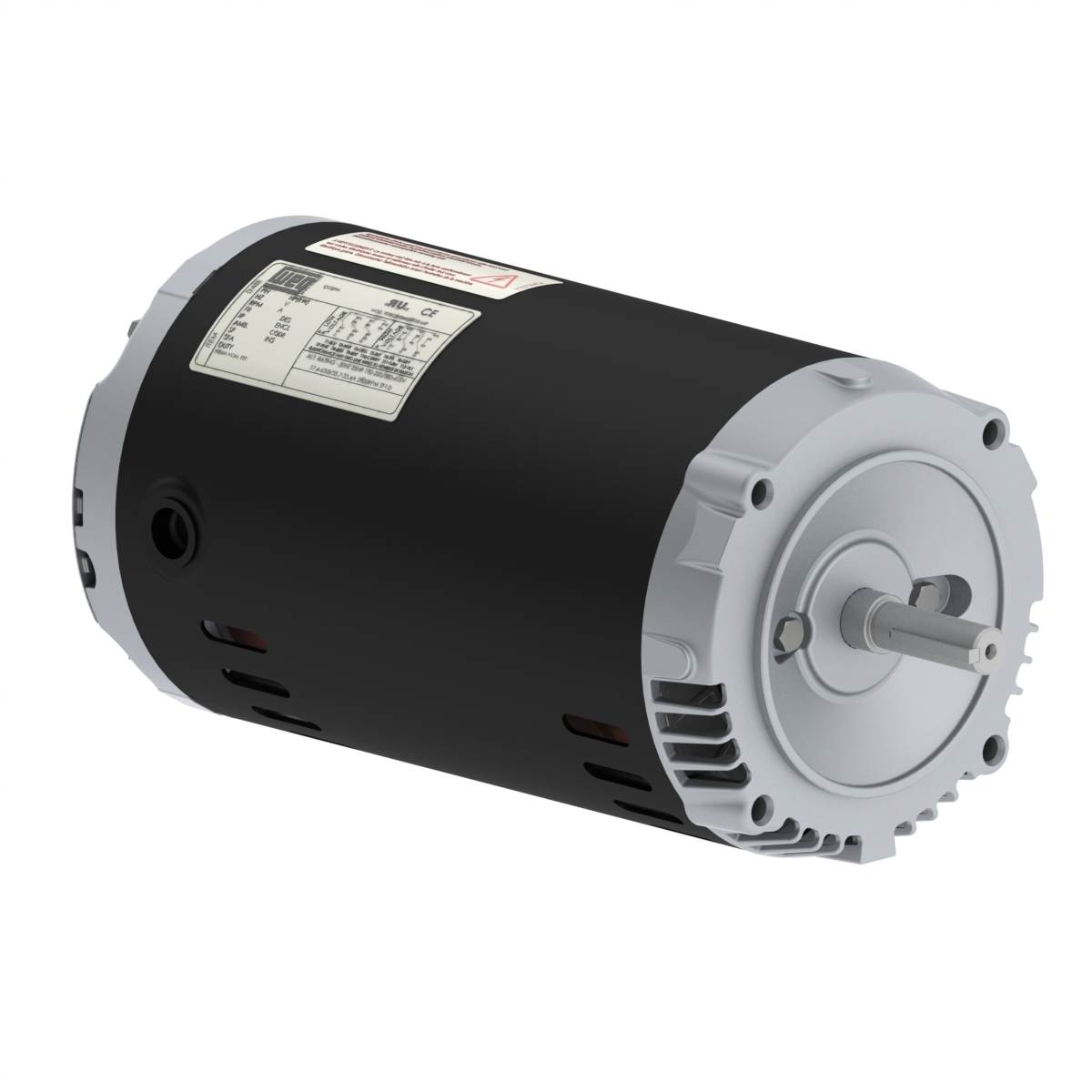

.2518OT3E56CFL-S | 3 | 60 Hz | 1.35 | 1/4 hp | 56C | 4 | 1800 RPM | Class F | €313.77 | |
|
00236OT3E56CFL-S | 3 | 50 Hz | 1.15 | - | 56 | 2 | 3600 RPM | F | €553.58 | |
|
.3318OT3E56CFL-S | 3 | 60 Hz | 1.35 | 1/3 hp | 56C | 4 | 1800 RPM | Class F | €338.84 | |
 |
00336OT3E56CFL-S | 3 | 60 Hz | 1.15 | 3 hp | 56 | 2 | 3600 RPM | F | €612.05 | |
|
.7518OT3H56CFL-S | 3 | 60 Hz | 1.25 | 3/4 hp | 56C | 4 | 1800 RPM | F | €427.12 | |
|
.7518OT3E56CFL-S | 1 | 60 Hz | 1.25 | - | 56C | 4 | 1800 RPM | Class F | €427.12 | |
 |
.7536OT3E56CFL-S | 3 | 60 Hz | 1.25 | 3/4 hp | 56CFL | 2 | 3600 RPM | Class F | €397.29 |
