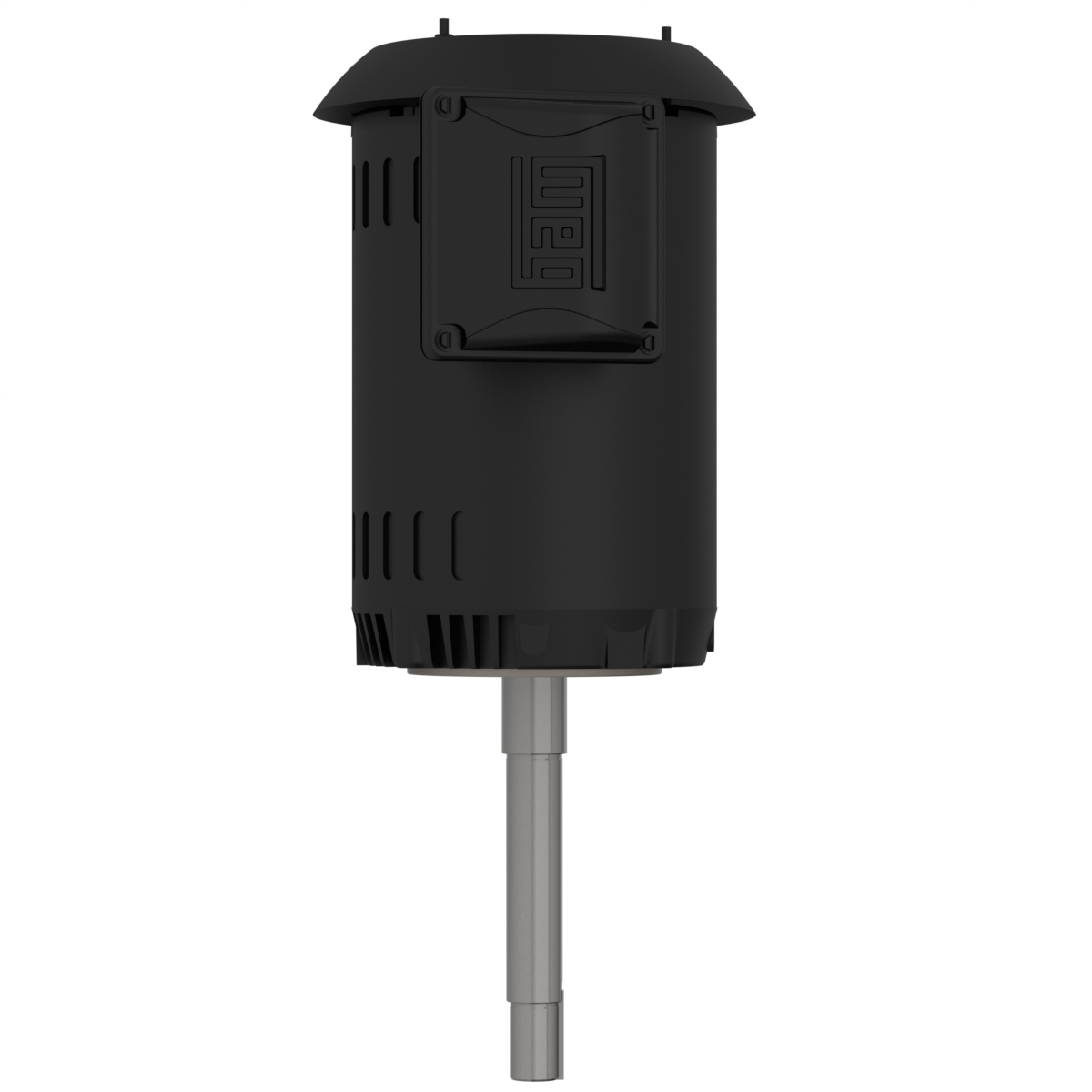

WEG 00236OT3E145JPV-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BC3HDU

WEG 00236OT3E145JPV-S 13500646 Pump Motor, 2 HP, 3600 RPM, 208-230/460V, ODP, 145JPV, Footless, Close CoupLED Pump, Vertical

Item: BC3HDUModel: 00236OT3E145JPV-SCross Ref: 13500646
Check Availability
In Stock

Get it by Monday, Jul 6

€757.61 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 2.42/4.84A
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Break Down Torque 330%
Composition Steel
Connection Cables Quantity 9
Ct Speed Range 2:1
Drip Cover With
Duty Cycle S1
Efficiency 85.5%
Efficiency 50% 84%
Efficiency 75% 85.5%
Efficiency @ 100% 85.5%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Frame 145JPV
Frame Material Rolled Steel
Frame Size 143/5JP
Frequency 50/60 Hz , 60 Hz
Grounding Lugs Single
Hp 2 hp
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L. R. Amps 21.5/43.1A , 22.2A
Locked Rotor Time (cold) 25 sec.
Locked Rotor Time(hot) 14 sec.
Locked Rotor Torque 220%
Main Terminal Box Hole 1.118"
Moment Of Inertia (j) 0.1151 lbs.-sq. ft.
Mounting W-6
Mounting Arrangement W6
Mounting Orientation Vertical
Nema Frame NEMA 143-5JP
Nema Mount C Face No Base
No Load Amps 0.917/1.83A
No. Of Poles 2
Noise Level 62 dBA
Output Hp 2 hp
Output Kw 1.5 kW
Output Rating 2 hp
Output Speed 3510/2890 RPM
Overload Protection No
Phase 3
Power Factor 100% 0.91
Power Factor 50% 0.77
Power Factor 75% 0.86
Replaces 00236OP3E145JPV
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 2.5%
Speed 3400-3600 RPM , 3510 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.99 lbs.-ft.
Voltage 190-220/230/380-415/460V , 208-230/460V , 415V

Shipping Info:

Ship weight (kg) 18.9
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS

Product Variants

ProductModelPhaseFrequencyService FactorHpFrameNo. Of PolesSynchronous SpeedMountingPrice
WEG .2518OT3E56CFL-S Electric Motor, 1/4Hp, 60Hz, 1800 Rpm | BB8LNG .2518OT3E56CFL-S360 Hz1.351/4 hp56C41800 RPMFootless€313.77
WEG 00236OT3E56CFL-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9AFM 00236OT3E56CFL-S350/60 Hz1.15-5623600 RPMFootless€553.58
WEG .3318OT3E56CFL-S Electric Motor, 1/3Hp, 60Hz, 1800 Rpm | BB9AJN .3318OT3E56CFL-S360 Hz1.351/3 hp56C41800 RPMFootless€338.84
WEG 00156OT3E56CFL-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB9FUJ 00156OT3E56CFL-S360 Hz1.151 1/2 hp5623600 RPMFootless€486.77
WEG 00336OT3E56CFL-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9GLK 00336OT3E56CFL-S360 Hz1.153 hp5623600 RPMFootless€612.05
WEG .7518OT3H56CFL-S Electric Motor, 3/4Hp, 60Hz, 1800 Rpm | BB9JLE .7518OT3H56CFL-S360 Hz1.253/4 hp56C41800 RPMFootless€427.12
WEG .7518OT3E56CFL-S Electric Motor, 3/4Hp, 60Hz, 3600 Rpm | BB9LDU .7518OT3E56CFL-S160 Hz1.25-56C41800 RPMFootless€427.12
