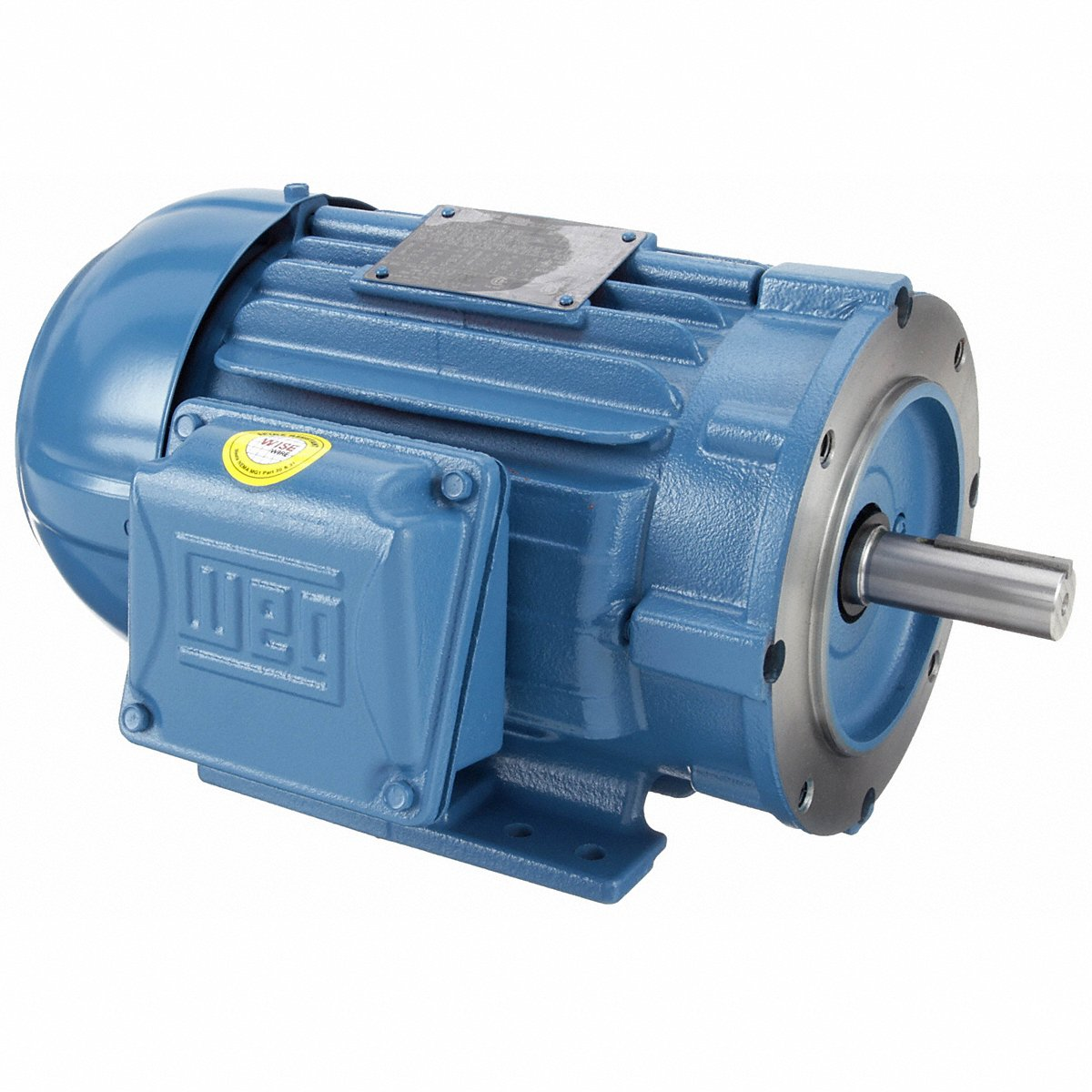

WEG 00218ET3E145TC-W22 11610563 General Purpose Motor, TEFC Cast Iron 143/5TC Frame, 2 HP, 1450 RPM, 415 V
1800 rpm
2 hp
145TC
Get it by Tuesday, Sep 1
5.00% off
€945.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Amps | 2.79/5.58A |
| Base Type | Rigid Base |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Break Down Torque | 320% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency | 86.5% |
| Efficiency 50% | 85.5% |
| Efficiency 75% | 86.5% |
| Efficiency @ 100% | 86.5% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 143/5TC , 145TC |
| Frame Material | Cast Iron |
| Full Load Amps | 2.61/5.22-5.77A , 5.77-5.22/2.61A |
| Full Load Amps @ 50 Hz | 2.56/2.57/3.14/3.22/3.33A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 2 hp |
| Hp @ 50 Hz | 1 1/2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| L. R. Amps | 22.9A , 23.2/46.3A |
| Length Less Shaft | 11 1/8" |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time(hot) | 10 sec. , 12 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 7.3x(Code K) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.1561 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face, Base |
| Nameplate Speed | 1755 RPM |
| Nde Bearing Seal | V Ring |
| Nema Design | B |
| No Load Amps | 1.63/3.26A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise | 51 dBA |
| Noise Level | 51 dBA |
| Nominal Efficiency | 86.5% |
| Output Hp | 2 hp |
| Output Rating | 1.5 kW |
| Overall Length | 13 3/8" |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.78 |
| Power Factor 50% | 0.57 |
| Power Factor 75% | 0.7 |
| Product Datasheet | weg-00218et3e145tc-w22.pdf |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.78% |
| Speed | 1701-1800 RPM , 1750 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 5.92 lbs.-ft. , 7.24 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460/380V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 33.93 |
| Ship width (cm) | 31.75 |
| HS code | 8501524000 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Frequency | Service Factor | Hp | Full Load Amps | Motor Type | Mounting Type | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | 2.79A | - | Rigid Base | 90L | Cast Iron | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | 3.91A | - | Rigid Base | 100L | Cast Iron | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | 7.1A | - | Rigid Base | 112M | Cast Iron | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | 9.07A | - | Rigid Base | 132S | Cast Iron | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | 12.2A | - | Rigid Base | 132M | Cast Iron | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | 30.6A | - | Face, Base | 180M | Cast Iron | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | 36A | - | Face, Base | 180L | Cast Iron | €5,926.53 |
