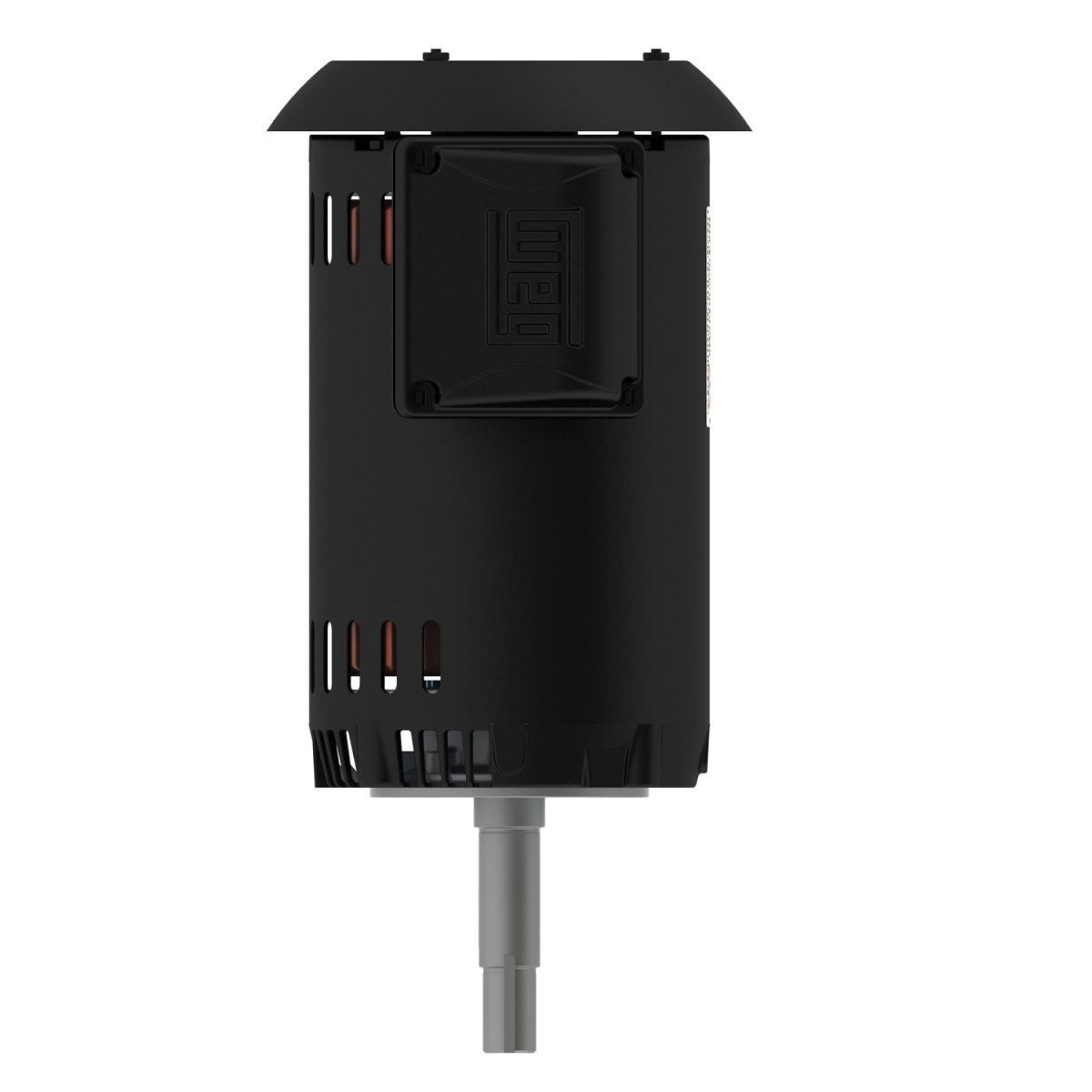

WEG 00158OT3E145JMV-S 13405270 Pump Motor, 1.5 HP, 1800 RPM, 208-230/460 V, 3 Phase, ODP, 145JMV Frame, Footless, Close Coupled Pump, Vertical
1800 rpm
1.5 hp
145JMV
208-230/460V
Get it by Tuesday, Jul 14
€725.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.07/4.14A |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 330% |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 5:1 |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency | 86.5% |
| Efficiency 50% | 84% |
| Efficiency 75% | 86.5% |
| Efficiency @ 100% | 86.5% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 145JMV |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JM |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 18/36A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 280% |
| Main Terminal Box Hole | 1.118" |
| Moment Of Inertia (j) | 0.1426 lbs.-sq. ft. |
| Mounting | W-6 |
| Mounting Arrangement | W6 |
| Mounting Orientation | Vertical |
| Nema Frame | NEMA 143-5JM |
| Nema Mount | C Face No Base |
| No Load Amps | 1.2/2.4A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output Hp | 1 1/2 hp |
| Output Kw | 1.1 kW |
| Output Rating | 1 1/2 hp |
| Output Speed | 1760 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 100% | 0.77 |
| Power Factor 50% | 0.56 |
| Power Factor 75% | 0.69 |
| Product Datasheet | weg-00158ot3e145jmv-s.pdf |
| Replaces | 00158OP3E145JMV-S |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 2.22% |
| Space Heater | None |
| Speed | 1700-1800 RPM , 1760 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.48 lbs.-ft. |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Frequency | Service Factor | Hp | Frame | No. Of Poles | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.2518OT3E56CFL-S | 3 | 60 Hz | 1.35 | 1/4 hp | 56C | 4 | 1800 RPM | Footless | €313.77 | |
|
00236OT3E56CFL-S | 3 | 50/60 Hz | 1.15 | - | 56 | 2 | 3600 RPM | Footless | €553.58 | |
|
.3318OT3E56CFL-S | 3 | 60 Hz | 1.35 | 1/3 hp | 56C | 4 | 1800 RPM | Footless | €338.84 | |
 |
00156OT3E56CFL-S | 3 | 60 Hz | 1.15 | 1 1/2 hp | 56 | 2 | 3600 RPM | Footless | €486.77 | |
 |
00336OT3E56CFL-S | 3 | 60 Hz | 1.15 | 3 hp | 56 | 2 | 3600 RPM | Footless | €612.05 | |
|
.7518OT3H56CFL-S | 3 | 60 Hz | 1.25 | 3/4 hp | 56C | 4 | 1800 RPM | Footless | €427.12 | |
|
.7518OT3E56CFL-S | 1 | 60 Hz | 1.25 | - | 56C | 4 | 1800 RPM | Footless | €427.12 |
