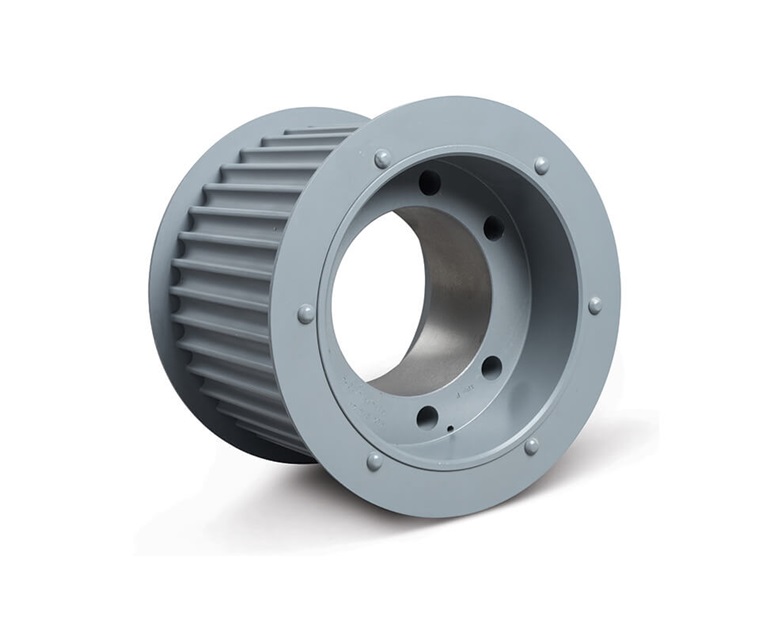

TB WOODS P4020M170 Synchronous Plus Belt Sprocket, Cast Iron, 170mm Belt Width, 10.026 inch Pitch Dia.
170 mm
10.026"
Get it by Tuesday, Aug 25
€2,675.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 170 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Bushing Series | J |
| Construction | Plain |
| Dimension L | 4 1/2" |
| Dimensions E | 0.94" |
| Dimensions L | 4 1/2" |
| Dimensions M | 2.06" |
| Face Width | 7 1/2" |
| Hub Length | 3.19" |
| Hub Location | 2.19" |
| Inside Dia. | 8" |
| Material | Cast Iron |
| Max. Speed | 2540 RPM |
| No. Of Teeth | 40 |
| Outside Dia. | 9.86" |
| Pitch Dia. | 10.026" |
| Product Type | Synchronous Plus |
| Rpm High | 2540 RPM |
| Rpm High | 2,540 rpm |
Shipping Info:
| Ship weight (kg) | 28.71 |
| Ship height (cm) | 25.04 |
| Ship length (cm) | 25.04 |
| Ship width (cm) | 16.99 |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Belt Width | Pitch Length | Rpm High | Tooth Profile | Bushing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
315014M85 | Neoprene | 225 | - | 85 mm | 3150 mm | - | - | - | €1,060.72 | |
 |
P2814M40 | Cast Iron | 28 | 4.912" | - | - | 5210 RPM | - | - | €234.31 | |
|
P2814M55 | Cast Iron | 28 | 4.912" | 55 mm | - | 5210 RPM | - | SK R | €275.67 | |
|
P2914M40 | Cast Iron | - | 5.088" | 40 mm | - | 5030 RPM | - | SK R | €278.68 | |
|
P2914M55 | Cast Iron | 29 | 5.088" | 55 mm | - | 5030 RPM | - | SK R | €311.08 | |
 |
P3014M40 | Cast Iron | 30 | 5.263" | 40 mm | - | 4860 RPM | - | SK | €256.36 | |
|
P3014M55 | Cast Iron | 30 | 5.263" | 55 mm | - | 4860 RPM | - | SK | €297.71 |
