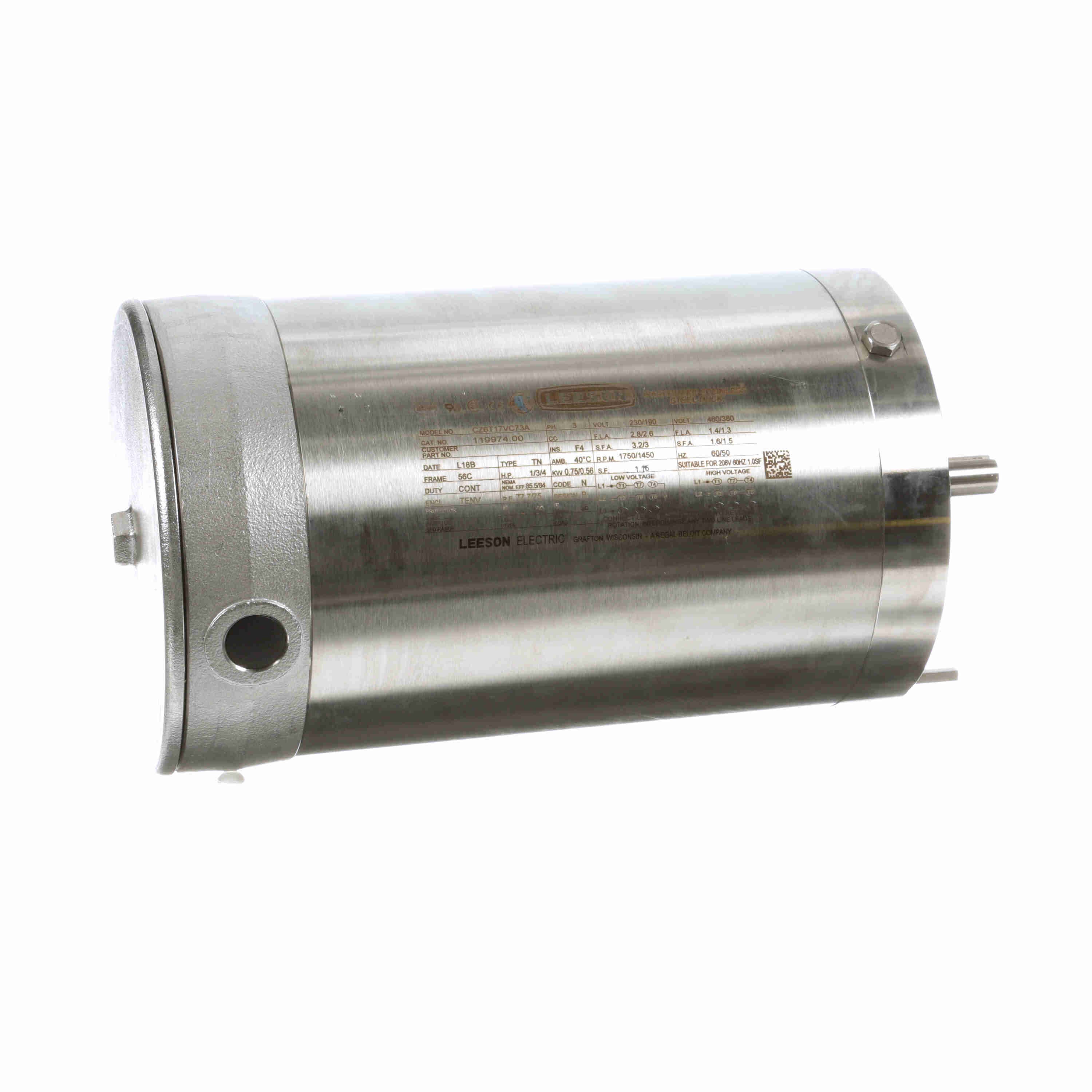

LEESON 119974.00 CZ6T17VC73A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
€1,705.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°F |
| Amps | 2.8/1.4A |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drain Plug Location | Conduit Box, Each End Bell |
| Drain Plugs | (1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tenv |
| Endshield Material | Stainless Steel |
| Finish | Unfinished |
| Frame | 56C |
| Frame Length | 8" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Height | 10 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP56 |
| Kva Code | No |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 1/8" |
| Max. Ambient Temp. | 40°F |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| No. Of Drain Plugs | 2 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 1/4" |
| Phase | 3 |
| Power Factor | 77.7 |
| Product Datasheet | leeson-119974-00.pdf |
| Product Type | Washdown Motor |
| Removable Base | Yes |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Phase | Nameplate Rpm | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388.00 | 208-230/460V | 3/4 hp | 1.15 | 3 | 1800/1500 RPM | 2.5-2.4/1.2A | Rigid Base | Squirrel Cage Induction Run | €1,590.84 | |
 |
103389.00 | 208-230/460V | 1/2 hp | 1.15 | 3 | 1800/1500 RPM | 1.9-1.8/0.9A | Round | Squirrel Cage Induction Run | €1,211.93 | |
 |
116345.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Rigid Base | Capacitor Start/Induction Run | €2,934.74 | |
 |
116346.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Rigid Base | Capacitor Start/Run | €3,293.63 | |
 |
116349.00 | 115/208-230V | 33/100 hp | 1.15 | 1 | 1800 RPM | 5.4/2.7-3A | Round | Capacitor Start/Induction Run | €1,492.82 | |
 |
116350.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Round | Capacitor Start/Induction Run | €2,860.60 | |
 |
116351.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Round | Capacitor Start/Run | €1,600.03 |
