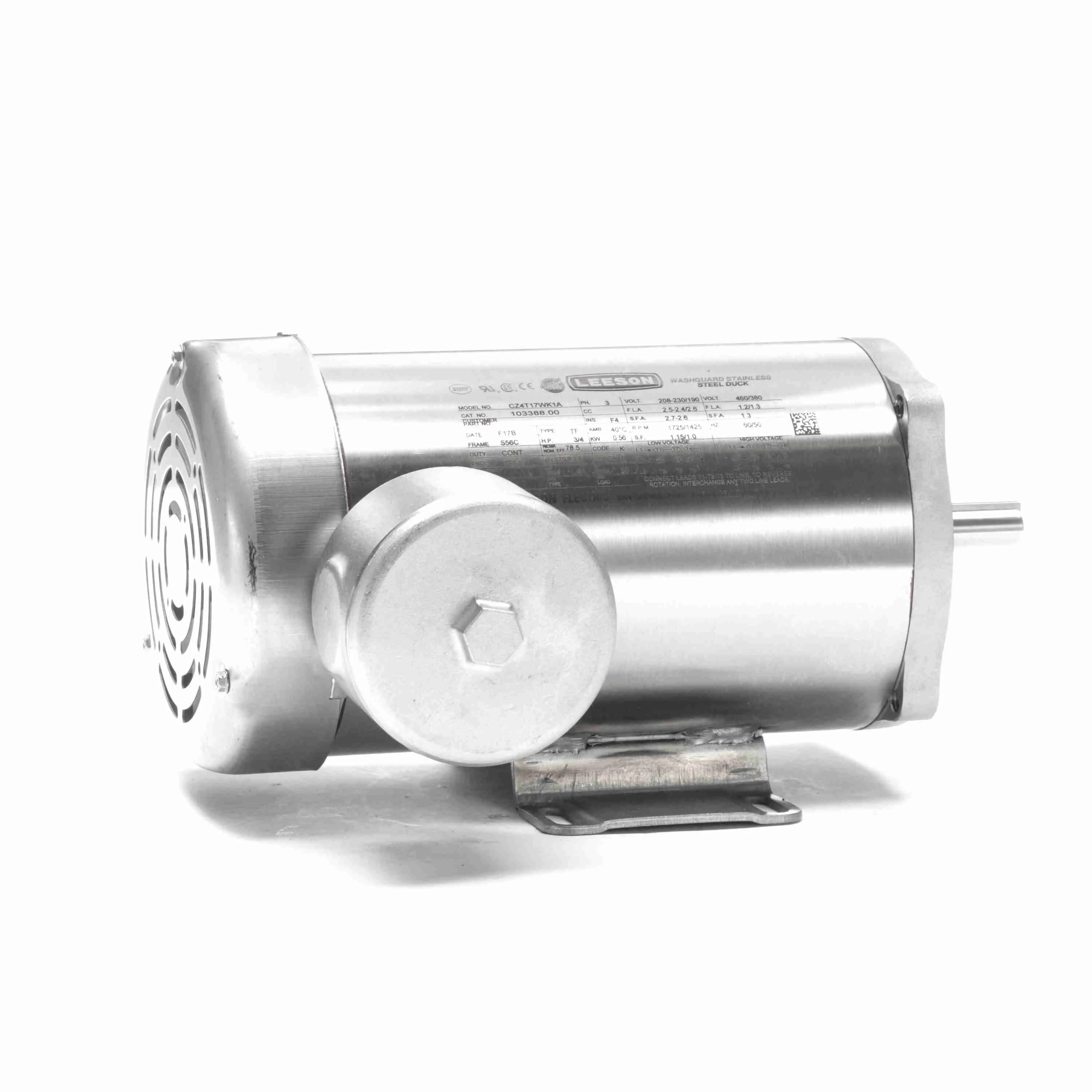

LEESON 103388.00 CZ4T17WK1A Washdown Motor 50-60 Hertz | AJ2PRE CZ4T17WK1A

LEESON 103388.00 CZ4T17WK1A General Purpose Motor, 0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2PREModel: 103388.00Cross Ref: 820J93 / CZ4T17WK1A
Check Availability
In Stock
HP
Frame

Get it by Tuesday, May 19

€1,590.84 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 40°C
Amps 2.4/1.2A
Code K
Design Code B
Drive End Bearing Size 6204
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 78.5%
Electrical Type Squirrel Cage, Inverter Rated
Enclosure Type Tefc
Finish Unfinished
Frame S56C
Frame Length 8"
Frame Material Stainless Steel
Frame Type S56C
Frequency 60 Hz
Frequency 50/60 Hz
Full Load Amps 2.5-2.4/1.2A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3/4 hp
Insulation Class Class F
Ip Code IP56
Kva Code K
Kw 0.56 kW
Length 14 11/25"
Max. Rpm 1725 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1800/1500 RPM
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6204
Opp. Drive End Bearing Type Ball
Phase 3
Power 0.56 kW
Power Factor 79
Product Datasheet leeson-103388-00.pdf
Rotation Reversible
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Line Or Inverter
Thermal Protection No Protection
Type TF
Voltage 208-230/460V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 78.5
    • Bearing OPE: 6204
    • CC Number: EXEMPT
    • Bearing PE: 6204
    • Nameplate: 081120
    • Winding: T55465
    • GROUP: 3
    • S. F Amps: 2.7-2.6 / 1.3

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpService FactorPhaseNameplate RpmFull Load AmpsMounting TypeMotor TypePrice
LEESON 103389.00 CZ4T17VC4A Washdown Motor 50-60 Hertz | AJ2PRF CZ4T17VC4A 103389.00208-230/460V1/2 hp1.1531800/1500 RPM1.9-1.8/0.9ARoundSquirrel Cage Induction Run€1,211.93
LEESON 116345.00 NZ6C17VK2B Washdown Motor | AJ2QRL NZ6C17VK2B 116345.00115/208-230V1/2 hp1.1511800 RPM6.8/3.4ARigid BaseCapacitor Start/Induction Run€2,934.74
LEESON 116346.00 CZ6K17VK2B Washdown Motor | AJ2QRM CZ6K17VK2B 116346.00115/208-230V3/4 hp1.1511800 RPM7.6/3.8-4.2ARigid BaseCapacitor Start/Run€3,293.63
LEESON 116349.00 NZ6C17VC1B Washdown Motor | AJ2QRP NZ6C17VC1B 116349.00115/208-230V33/100 hp1.1511800 RPM5.4/2.7-3ARoundCapacitor Start/Induction Run€1,492.82
LEESON 116350.00 NZ6C17VC2C Washdown Motor | AJ2QRQ NZ6C17VC2C 116350.00115/208-230V1/2 hp1.1511800 RPM6.8/3.4ARoundCapacitor Start/Induction Run€2,860.60
LEESON 116351.00 CZ6K17VC2B Washdown Motor | AJ2QRR CZ6K17VC2B 116351.00115/208-230V3/4 hp1.1511800 RPM7.6/3.8-4.2ARoundCapacitor Start/Run€1,600.03
LEESON 116482.00 CZ6K34WK1A Washdown Motor | AJ2QTA CZ6K34WK1A 116482.00115/208-230V1 1/2 hp1.1513600 RPM13.6/6.8-7.2ARigid BaseCapacitor Start/Run€3,907.93
