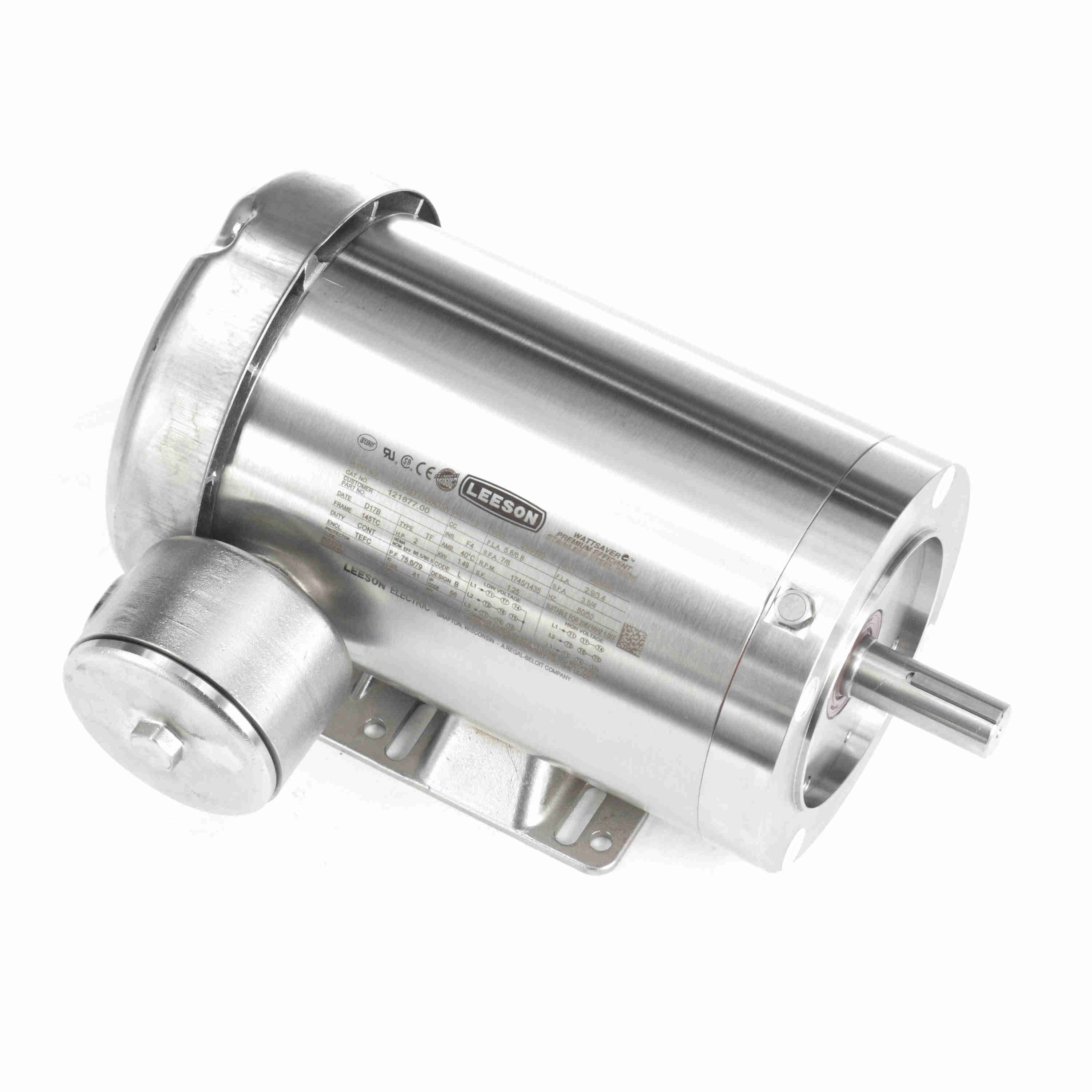

LEESON 121877.00 CZ145T17WK33A General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,638.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drain Plugs | No |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Length | 8 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rating | 10:1 |
| Ip Code | IP56 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 17.94" |
| Length Less Shaft | 11 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 1/4" |
| Packaging | B |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Weight | 59 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 26.6 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081344
- Winding: T634340
- GROUP: 3
- S. F Amps: 7 / 3.5
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Full Load Amps | Motor Mounting Type | Insulation Class | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388.00 | 208-230/460V | 3/4 hp | S56C | 1800/1500 RPM | 2.5-2.4/1.2A | - | Class F | 40°C | €1,590.84 | |
 |
117267.00 | 208-230/460V | 3/4 hp | 56C | 1800/1500 RPM | 2.4-2.3/1.15A | - | Class F | 40°C | €3,202.74 | |
 |
117273.00 | 230/460V | 1 hp | 56HC | 3600/3000 RPM | 2.6/1.3A | - | Class F | 40°C | €1,486.68 | |
 |
117275.00 | 208-230/460V | 1/2 hp | 56HC | 1200/1000 RPM | 2.3-2.35/1.15A | - | Class F | 40°C | €1,697.55 | |
 |
119491.00 | 208-230/460V | 1 hp | 56C | 1760 RPM | 3.2/1.6A | Face, Base | Class F | 104°F | €1,713.66 | |
 |
119492.00 | 208-230/460V | 1 hp | 56HC | 1170 RPM | 3.8/1.9A | Rigid Base | Class F | 104°F | €1,900.99 | |
 |
119494.00 | 230/460V | 1 1/2 hp | 56HC | 1750 RPM | 3.8/1.9A | Rigid Base | Class F | 104°F | €1,783.20 |
