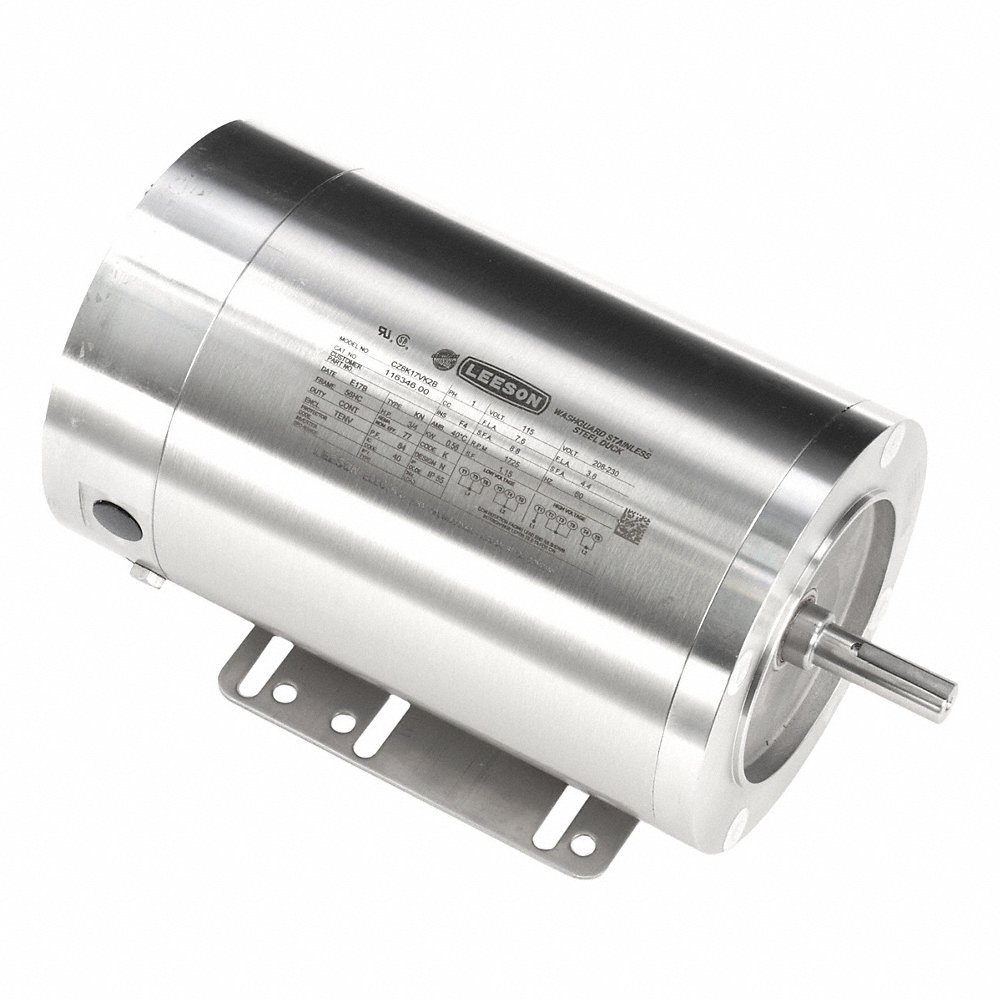

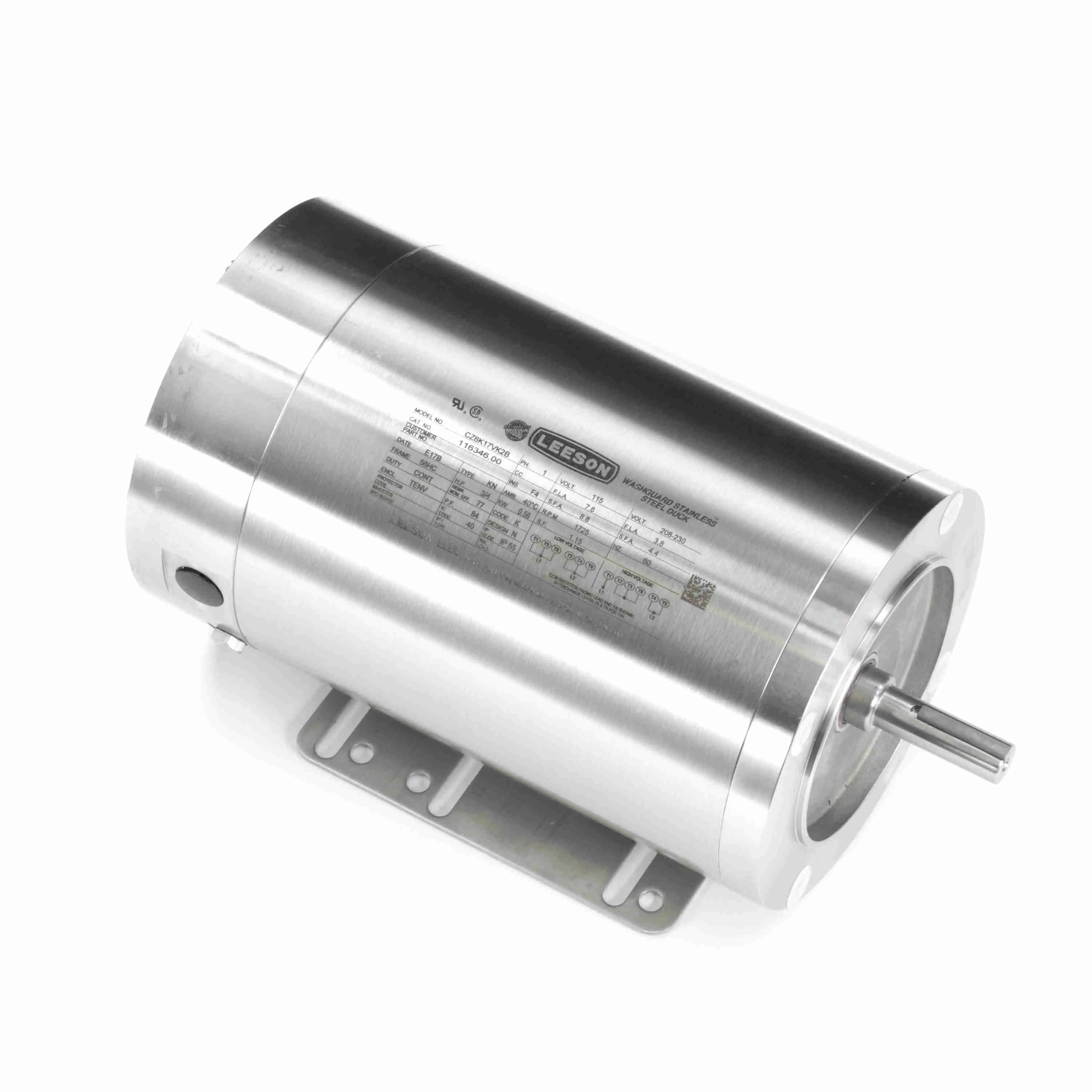

LEESON 116346.00 CZ6K17VK2B Washdown Motor | AJ2QRM CZ6K17VK2B

LEESON 116346.00 CZ6K17VK2B General Purpose Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2QRMModel: 116346.00Cross Ref: 820JA8 / CZ6K17VK2B
Check Availability
In Stock
HP
Frame

Get it by Wednesday, Jul 1

€3,067.92
5.00% off
€2,914.52 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 40°C
Amps 7.6/3.8A
Code K
Design No
Design Code No
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 77%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Tenv
Finish Unfinished
Frame 56HC
Frame Length 8"
Frame Material Stainless Steel
Frame Type 56HC
Frequency 60 Hz
Full Load Amps 7.6/3.8-4.2A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3/4 hp
Insulation Class Class F
Ip Code IP55
Kva Code K
Kw 0.56 kW
Length 19 1/2"
Max. Speed 1725 RPM
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start, Run
Mounting Type Rigid Base
Nameplate Speed 1800 RPM
No. Of Poles 4
No. Of Speeds 1
Opp Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Packaging B
Phase 1
Power 0.56 kW
Power Factor 84
Product Datasheet leeson-116346-00.pdf
Rotation Selective Counter Clockwise
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Speed 1700-1800 RPM
Starting Method Across The Line
Thermal Protection No Protection
Type KN
Voltage 115/208-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 18.9
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 77
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 081120
    • Winding: K634294
    • GROUP: 3
    • S. F Amps: 8.8 / 4.85-4.4

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrequencyService FactorPhaseFull Load AmpsMounting TypeMotor TypePrice
LEESON 103388.00 CZ4T17WK1A Washdown Motor 50-60 Hertz | AJ2PRE CZ4T17WK1A 103388.00208-230/460V3/4 hp60 Hz1.1532.5-2.4/1.2ARigid BaseSquirrel Cage Induction Run€1,590.84
LEESON 103389.00 CZ4T17VC4A Washdown Motor 50-60 Hertz | AJ2PRF CZ4T17VC4A 103389.00208-230/460V1/2 hp60 Hz1.1531.9-1.8/0.9ARoundSquirrel Cage Induction Run€1,211.93

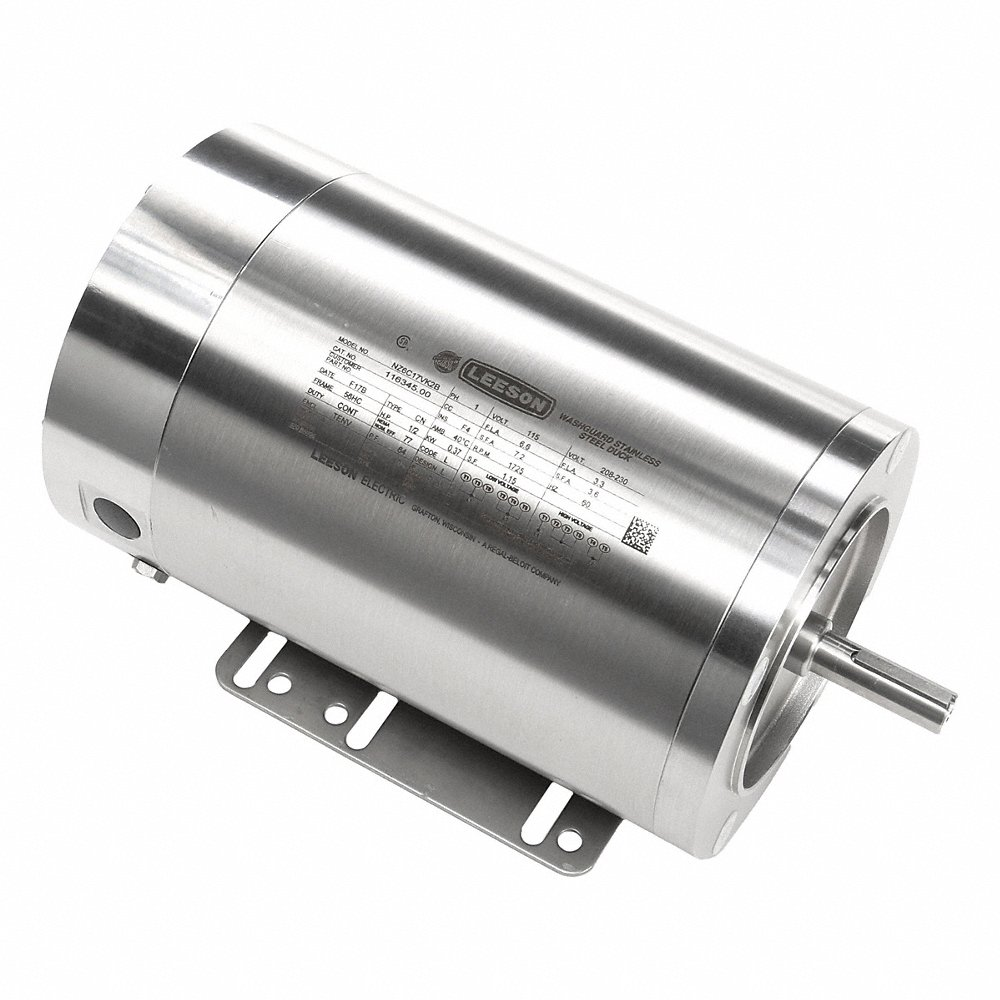

LEESON 116345.00 NZ6C17VK2B Washdown Motor | AJ2QRL NZ6C17VK2B 116345.00115/208-230V1/2 hp60 Hz1.1516.8/3.4ARigid BaseCapacitor Start/Induction Run€2,679.10
LEESON 116349.00 NZ6C17VC1B Washdown Motor | AJ2QRP NZ6C17VC1B 116349.00115/208-230V33/100 hp60 Hz1.1515.4/2.7-3ARoundCapacitor Start/Induction Run€1,492.82
LEESON 116350.00 NZ6C17VC2C Washdown Motor | AJ2QRQ NZ6C17VC2C 116350.00115/208-230V1/2 hp60 Hz1.1516.8/3.4ARoundCapacitor Start/Induction Run€2,611.40
LEESON 116351.00 CZ6K17VC2B Washdown Motor | AJ2QRR CZ6K17VC2B 116351.00115/208-230V3/4 hp60 Hz1.1517.6/3.8-4.2ARoundCapacitor Start, Run€1,600.03
LEESON 116482.00 CZ6K34WK1A Washdown Motor | AJ2QTA CZ6K34WK1A 116482.00115/208-230V1 1/2 hp60 Hz1.15113.6/6.8-7.2ARigid BaseCapacitor Start, Run€3,696.98
