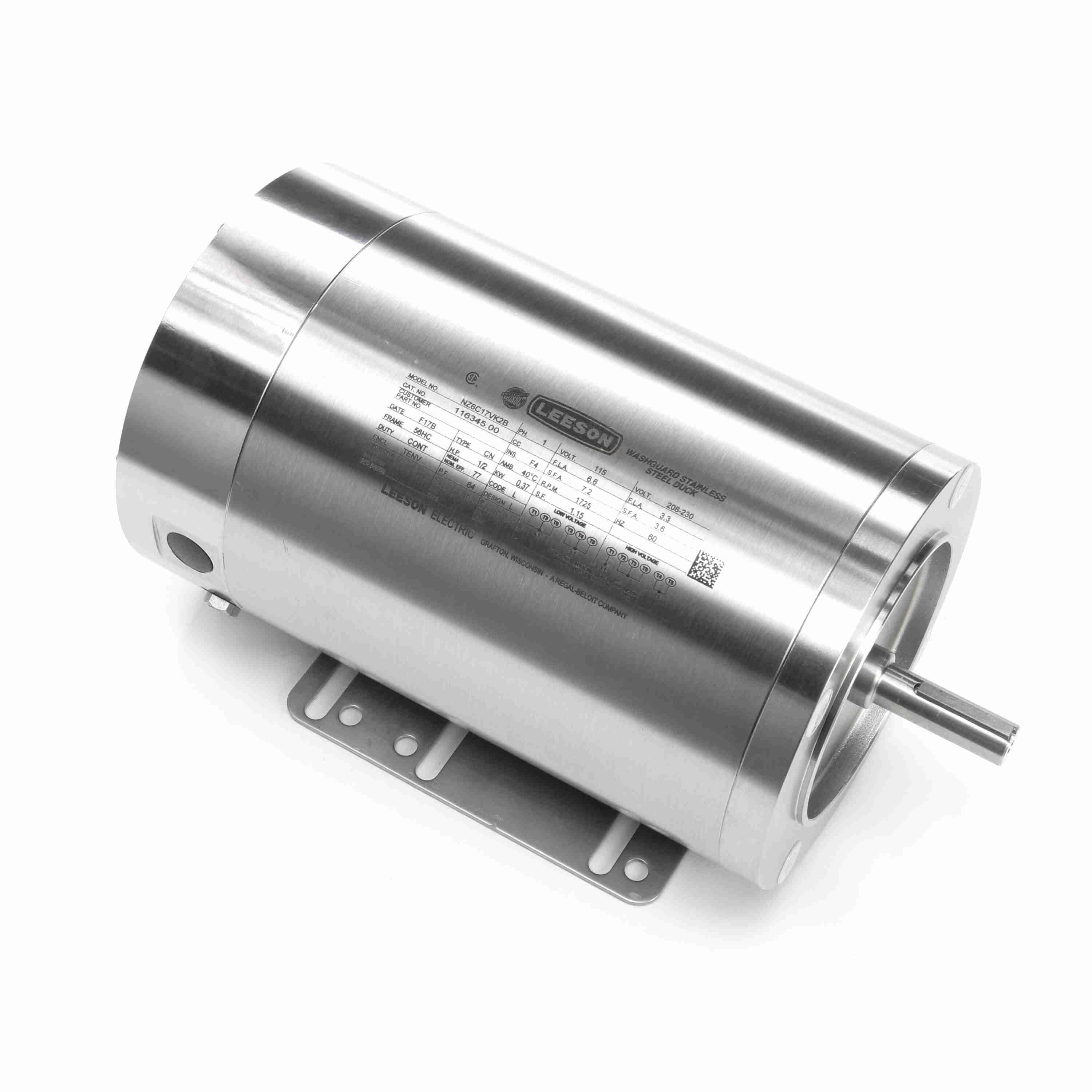

LEESON 116345.00 NZ6C17VK2B General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,641.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 6.8/3.4A |
| Code | L |
| Design | L |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tenv |
| Finish | Unfinished |
| Frame | 56HC |
| Frame Length | 8" |
| Frame Material | Stainless Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 6.8/3.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 64 |
| Resistance Main | 3.55 ohms |
| Rotation | Selective Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CN |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 74
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120
- Winding: C634289
- GROUP: 3
- S. F Amps: 7.6 / 3.8-3.8
