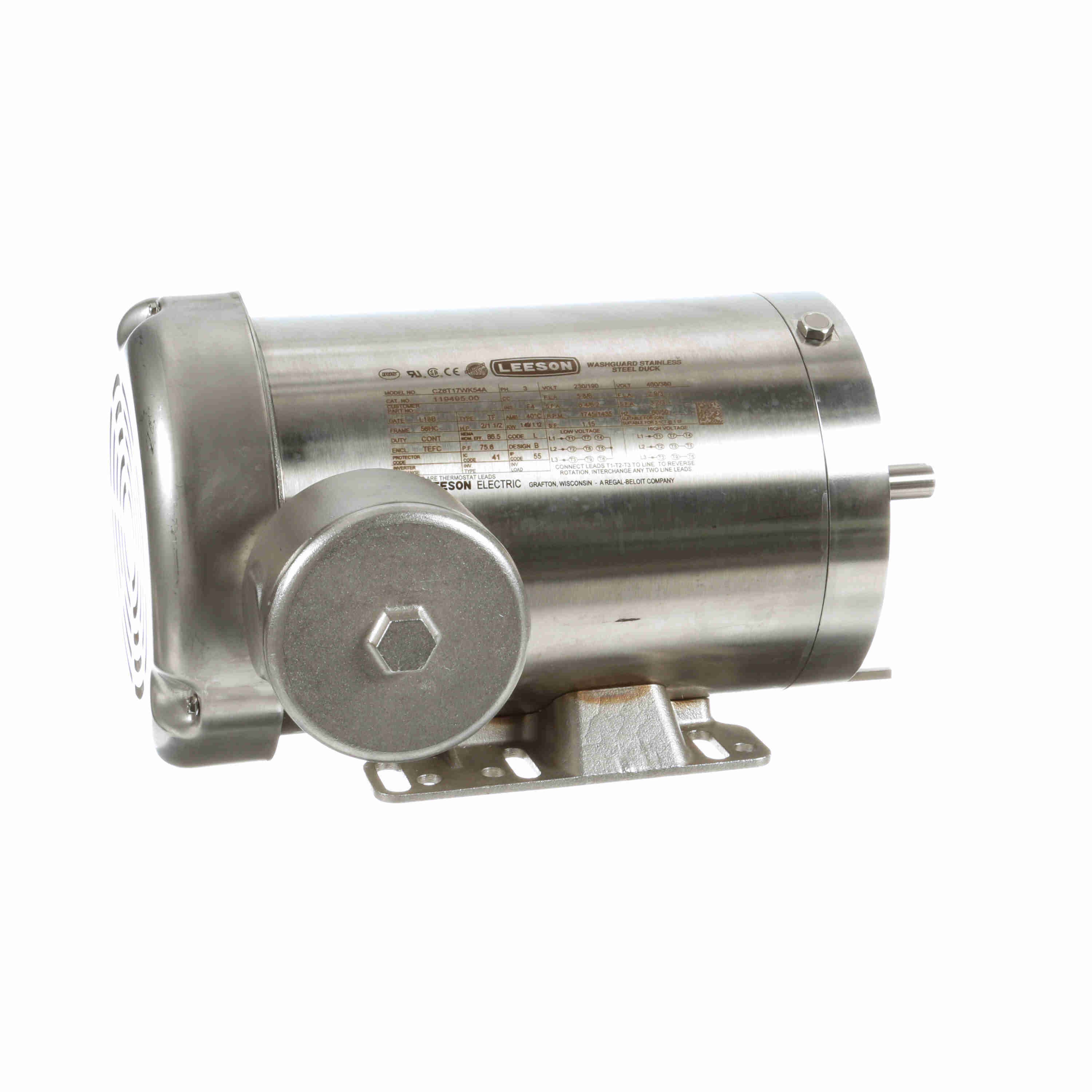

LEESON 119495.00 CZ6T17WK54A General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€3,850.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Assembly | 42542 |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Code | L |
| Conduit Box Location | Exterior |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 56HC |
| Frame Length | 8 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rating | 3:1 |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 17.94" |
| Length Less Shaft | 11 1/4" |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Manual |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | F |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 117285.00 / CZ6T17WK27A
- Eff 100%: 86.5
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120.01
- Winding: T634340
- GROUP: 3
- S. F Amps: 6.4 / 3.2
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Phase | Nameplate Rpm | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388.00 | 208-230/460V | 3/4 hp | 1.15 | 3 | 1800/1500 RPM | 2.5-2.4/1.2A | Rigid Base | Squirrel Cage Induction Run | €1,590.84 | |
 |
103389.00 | 208-230/460V | 1/2 hp | 1.15 | 3 | 1800/1500 RPM | 1.9-1.8/0.9A | Round | Squirrel Cage Induction Run | €1,211.93 | |
 |
116345.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Rigid Base | Capacitor Start/Induction Run | €2,934.74 | |
 |
116346.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Rigid Base | Capacitor Start/Run | €3,293.63 | |
 |
116349.00 | 115/208-230V | 33/100 hp | 1.15 | 1 | 1800 RPM | 5.4/2.7-3A | Round | Capacitor Start/Induction Run | €1,492.82 | |
 |
116350.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Round | Capacitor Start/Induction Run | €2,860.60 | |
 |
116351.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Round | Capacitor Start/Run | €1,600.03 |
