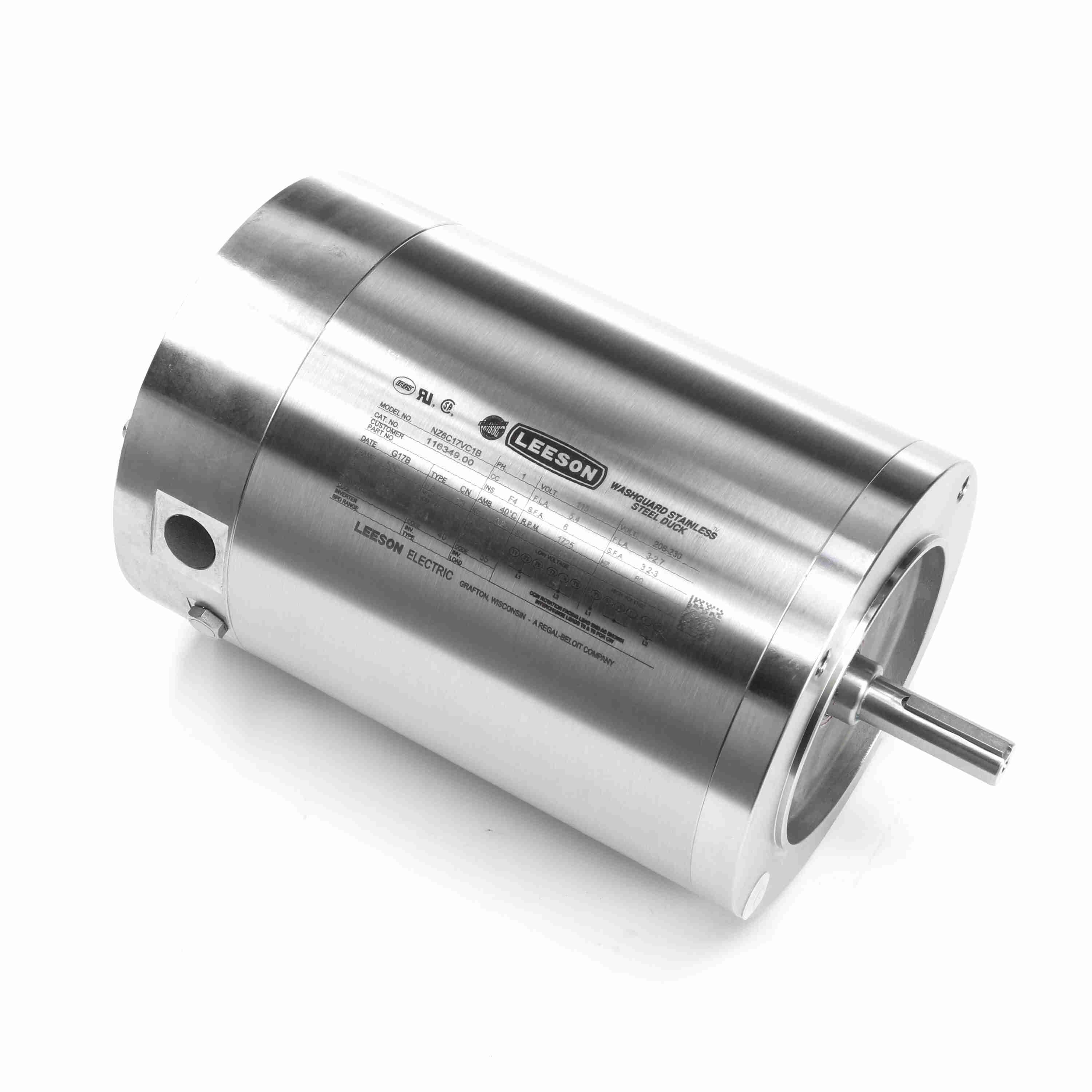

LEESON 116349.00 NZ6C17VC1B General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, May 18
€1,492.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 5.4/2.7A |
| Code | M |
| Conduit Box Position | F1 |
| Design | L |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tenv |
| Finish | Unfinished |
| Frame | 56C |
| Frame Length | 7" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.4/2.7-3A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 1 |
| Power | 0.246 kW |
| Product Datasheet | leeson-116349-00.pdf |
| Rotation | Selective Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CN |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 72
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120
- Winding: C634301
- GROUP: 3
- S. F Amps: 6 / 3.2-3
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Phase | Nameplate Rpm | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388.00 | 208-230/460V | 3/4 hp | 1.15 | 3 | 1800/1500 RPM | 2.5-2.4/1.2A | Rigid Base | Squirrel Cage Induction Run | €1,590.84 | |
 |
103389.00 | 208-230/460V | 1/2 hp | 1.15 | 3 | 1800/1500 RPM | 1.9-1.8/0.9A | Round | Squirrel Cage Induction Run | €1,211.93 | |
 |
116345.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Rigid Base | Capacitor Start/Induction Run | €2,934.74 | |
 |
116346.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Rigid Base | Capacitor Start/Run | €3,293.63 | |
 |
116350.00 | 115/208-230V | 1/2 hp | 1.15 | 1 | 1800 RPM | 6.8/3.4A | Round | Capacitor Start/Induction Run | €2,860.60 | |
 |
116351.00 | 115/208-230V | 3/4 hp | 1.15 | 1 | 1800 RPM | 7.6/3.8-4.2A | Round | Capacitor Start/Run | €1,600.03 | |
 |
116482.00 | 115/208-230V | 1 1/2 hp | 1.15 | 1 | 3600 RPM | 13.6/6.8-7.2A | Rigid Base | Capacitor Start/Run | €3,907.93 |
