LEESON 115024.00 M6K34FK16D General Purpose Motor | AJ2QQD M6K34FK16D

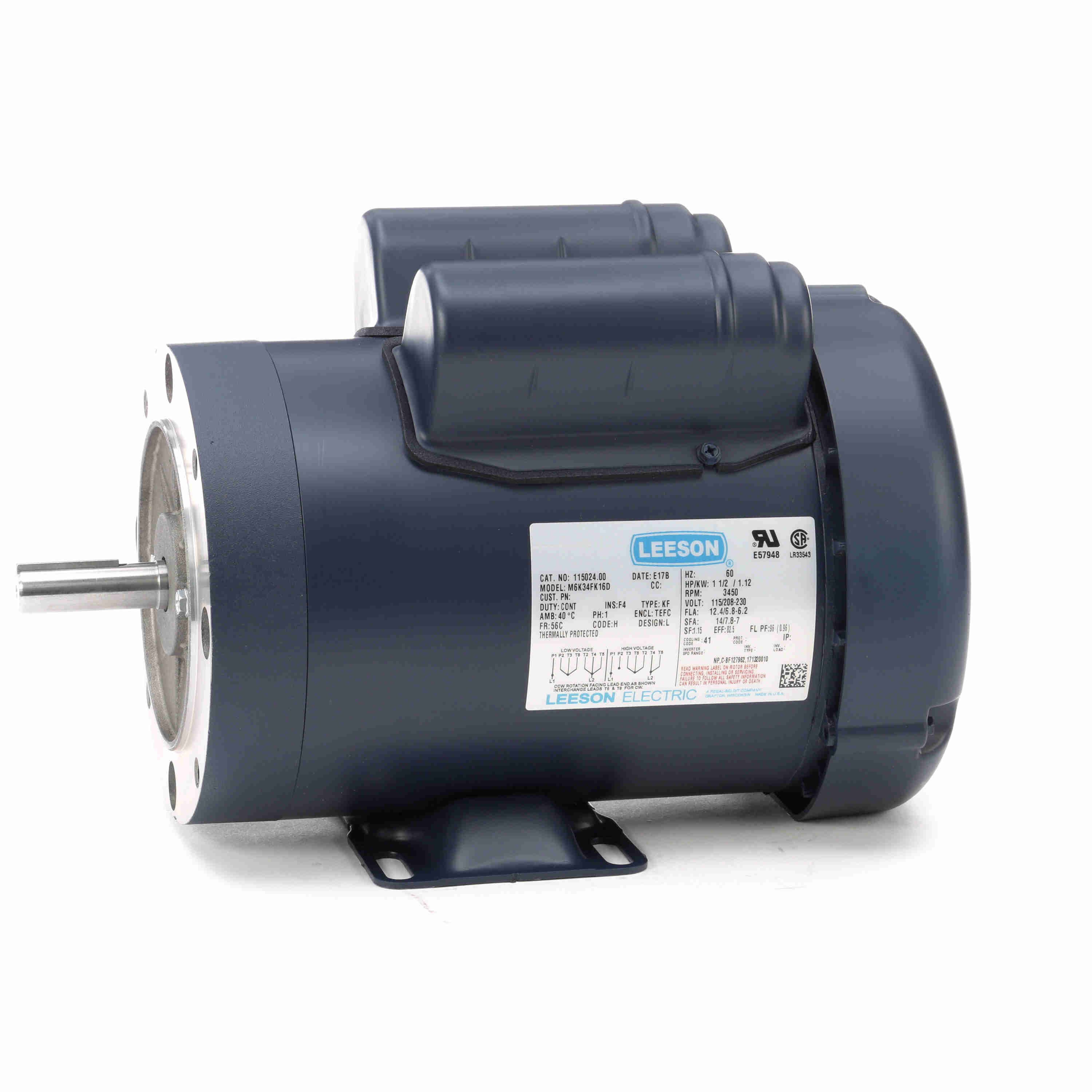

LEESON 115024.00 M6K34FK16D General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

Item: AJ2QQDModel: 115024.00Cross Ref: 820GY6 / M6K34FK16D
Check Availability
In Stock
Output KW
Frame

Get it by Friday, Aug 28

€760.78 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 12.4/6.2A
Code H
Design Code L
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 82.5%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Tefc
Frame 56C
Frame Length 7"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 12.4/6.8-6.2A
Grease Type Polyrex EM
Height 10 22/25"
Hp 1 1/2 hp
Insulation Class Class F
Ip Code IP43
Kva Code H
Kw 1.1 kW
Length 14 11/25"
Lubrication Polyrex EM
Max. Speed 3450 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start
Mounting Type Rigid Base
Nameplate Speed 3600 RPM
Nema Design H, L
No. Of Poles 2
No. Of Speeds 1
Opp Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 1.12 kW
Packaging B
Phase 1
Power Factor 96
Product Datasheet leeson-115024-00.pdf
Resistance Main 1.36 ohms
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Speed 3400-3600 RPM
Starting Method Across The Line
Thermal Protection Manual
Type KF
Voltage 115/208-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 17.1
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 82.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: K632140
    • GROUP: 3
    • Paint: VERIFY
    • S. F Amps: 14 / 7.8-7

Documentation:

Datasheet

Product Variants

ProductModelPhaseHpFull Load AmpsService FactorVoltageFrequencyMounting TypeMotor TypePrice
MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255 5KCR46JN0087Y11/3 hp3.8-4/1.9-2A1.35115/230V AC60 HzFace, BaseCapacitor Start€942.30
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055Y11/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€841.44
MARATHON MOTORS 5KCR46MN0093 General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKQ 1K128 / E265 5KCR46MN009311/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFaceCapacitor Start, Run€814.28
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055X11/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€886.09
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099X13/4 hp8.8-9/4.4-4.5A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€1,094.78
MARATHON MOTORS 5KCR49UN0107 General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKX 1K134 / EG283 5KCR49UN010711 hp11.4-11.8/5.7-5.9A1.15115/230V AC60 HzFaceCapacitor Start€1,031.58
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106X11 hp11.4-11.8/5.7-5.9A1.15115/230V AC60 HzFace, BaseCapacitor Start, Run€1,060.60
