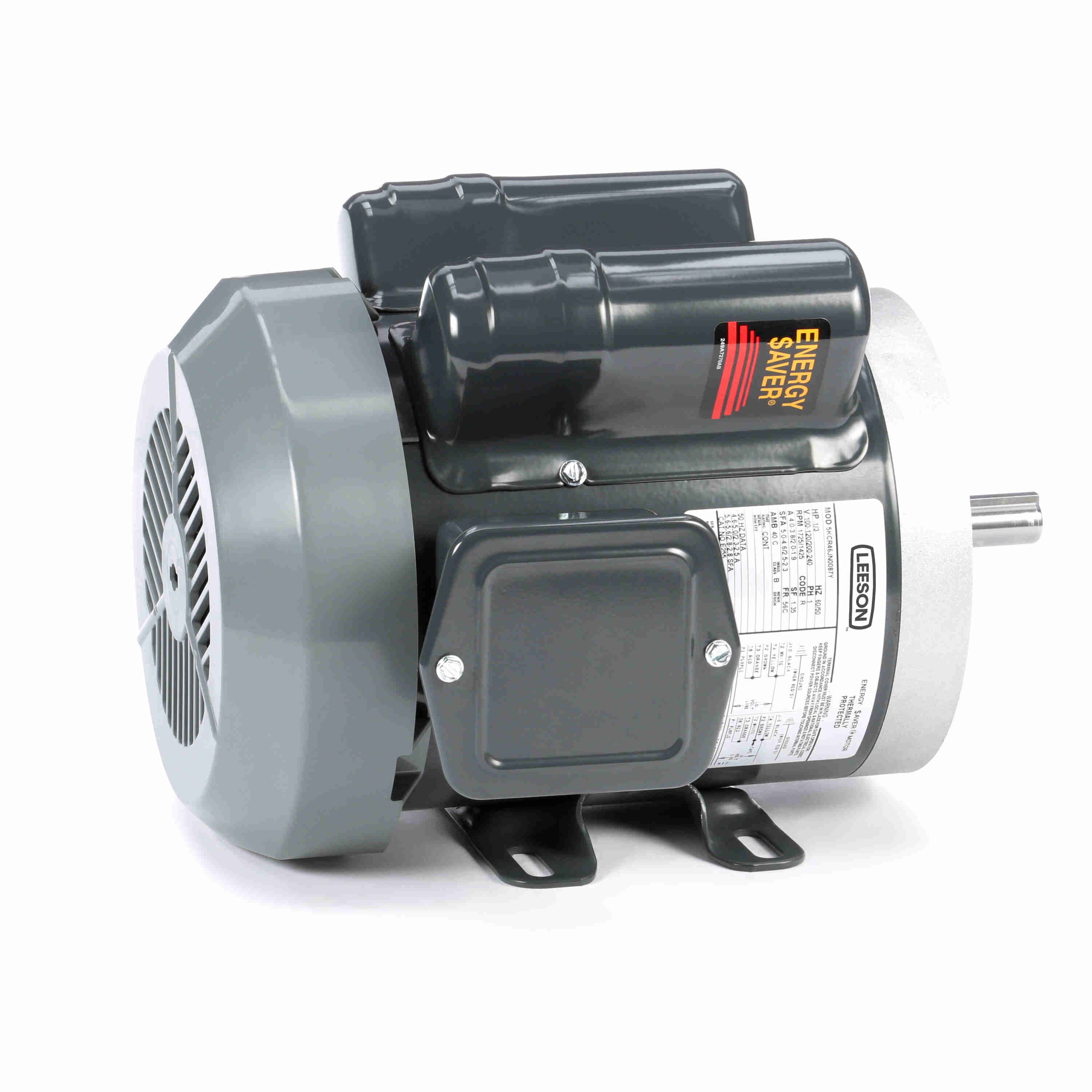

LEESON 5KCR46JN0087Y E255 General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 100-120/200-240V, 1800 RPM
Get it by Tuesday, Jul 7
5.00% off
€895.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70.2% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 3.8-4/1.9-2A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 15/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start , Capacitor Start, Run |
| Mounting Type | Face, Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70.2% |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Manual |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Frequency | Voltage | Hp | Full Load Amps | Phase | Service Factor | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46MN0055Y | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 60 Hz | 115/230V AC | 3/4 hp | 8.8-9/4.4-4.5A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face, Base | Capacitor Start, Run | €1,060.60 | |
 |
5KC49SN2156X | 60 Hz | 115/230V AC | 1 1/2 hp | 16.4/8.2A | 1 | 1 | Face | Capacitor Start | €738.43 |
