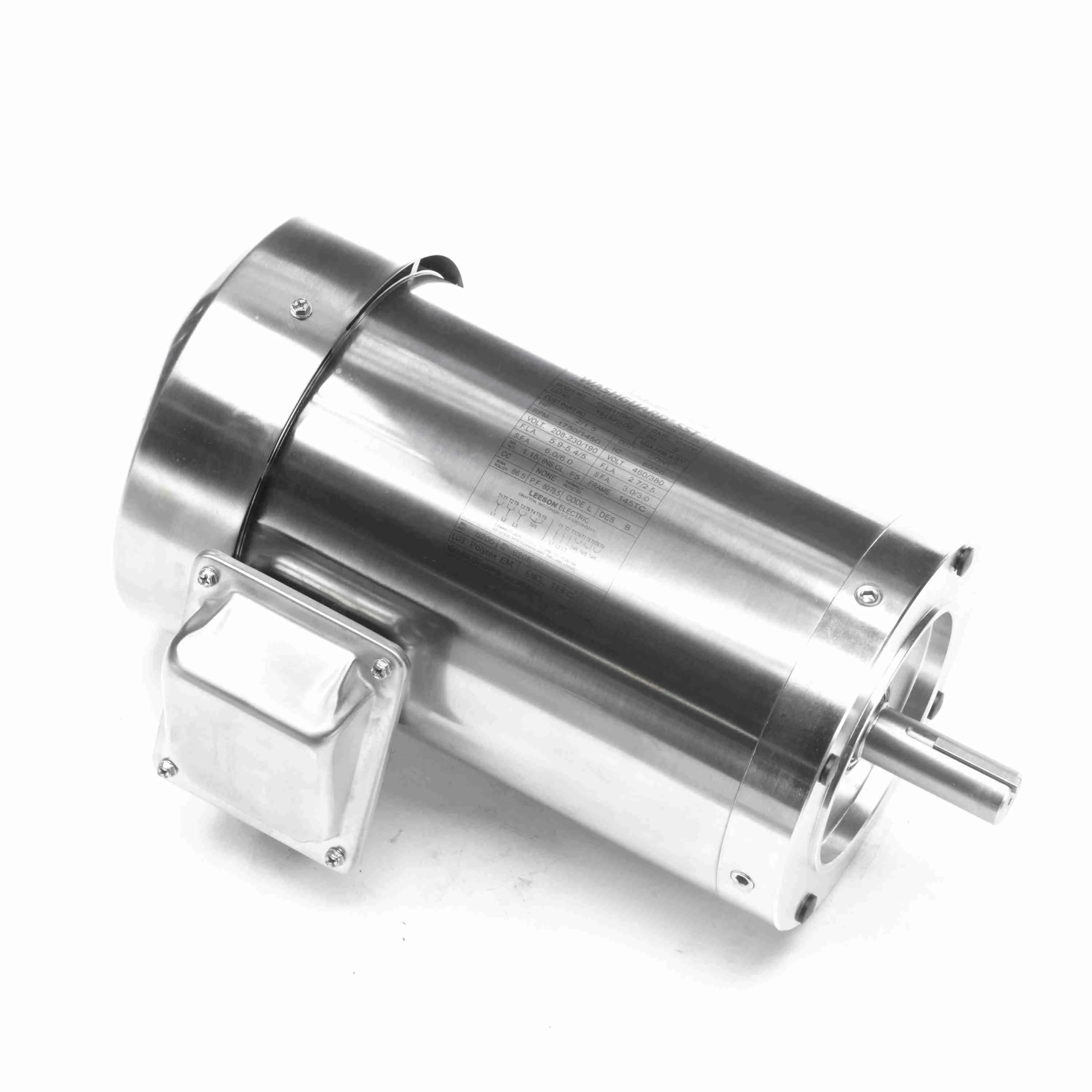

LEESON 191570.00 C145T17WK59A General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Friday, Dec 19
10.00% off
€2,328.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.4-5.8/2.7A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | Premium |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frame Type | 145TC |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 5.4-5.8/2.7A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Height | 10 4/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 16.62" |
| Length Less Shaft | 11 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 5/8" |
| Phase | 3 |
| Power Factor | 80 |
| Product Type | Washdown Motor |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Standards | Bissc Approved, Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 67 lbs. |
| Width | 11.7" |
Shipping Info:
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 25.81 |
| Ship length (cm) | 42.21 |
| Ship width (cm) | 29.72 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Hp | Frame | Full Load Amps | Nameplate Rpm | Finish | Ambient Temp. | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191419.00 | 208-230/460V AC | 1/2 hp | 56C | 26.4/13.2A | 1140 RPM | Unfinished | 104°F | Three Phase | €1,779.66 | |
 |
191421.00 | 208-230/460V | 1 hp | 56C | 3.8/1.9A | 1150 RPM | Unfinished | 104°F | Three Phase | €2,642.30 | |
 |
191507.00 | 208-230/460V | 1/2 hp | 56C | 1.9-2/1A | 1800/1500 RPM | Paint Free | 40°C | Squirrel Cage Inverter Rated | €3,031.58 | |
 |
191508.00 | 208-230/460V | 3/4 hp | 56C | 2.4-2.3/1.15A | 1800/1500 RPM | Paint Free | 40°C | Squirrel Cage Induction Run | €3,278.52 | |
 |
191542.00 | 208-230/460V | 3 hp | 145TC | 7.2-8/3.6A | 3470 RPM | Unfinished | 104°F | Three Phase | €3,137.76 | |
 |
191565.00 | 208-230/460V | 1 hp | 143TC | 3-3.2/1.5A | 1750 RPM | Unfinished | 104°F | Three Phase | €1,239.01 | |
 |
191567.00 | 208-230/460V | 1 1/2 hp | 56C | 4.4-4.8/2.2A | - | Unfinished | 104°F | Three Phase | €1,305.60 |
