How to install helical inserts?

Drill a hole using the suggested drill bit size. Tap the hole and screw the insert into the installation tool. The prong must be properly engaged in the driving contour of the tool. Using the installation tool, thread the insert into the hole. Install the insert a quarter to half turn below the hole's surface. If your insert has a prong, remove it with a punch or break-off tool. This allows the screw to fully enter the insert.

Where are helical inserts without prongs used?

These inserts are frequently used where debris could cause damage because there is no prong to break off and retrieve. They have coils that expand after installation to secure the insert.

Home
Fasteners
Thread Insert
Free Running Helical Inserts

Free Running Helical Inserts

Filter

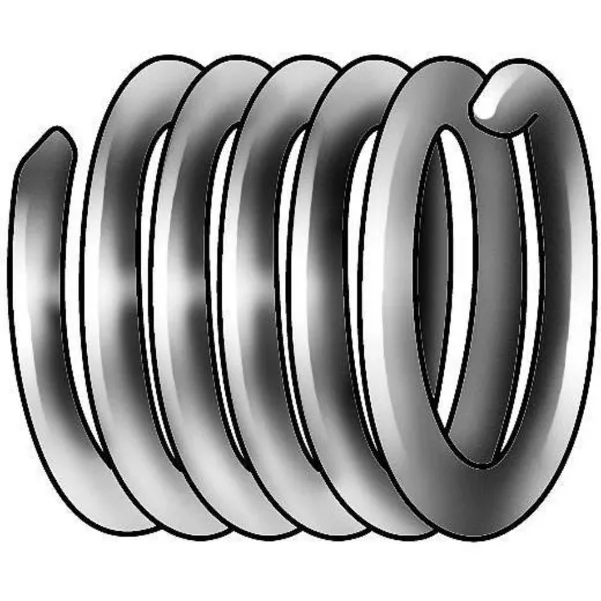

Free running inserts are designed to make threads or repair worn threads inside tapped holes. They are ideal for providing reliable threading in metals, composites, wood & similar...Read more

CHRISLYNN -

M16 x 1.5 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Tang Type	Thread Direction	Thread Size	Material	Pkg. Qty.
A	84074	16 mm	Tanged	Right Hand	M16 x 1.5	Stainless Steel	50	RFQ
A	84174	24 mm	Tanged	Right Hand	M16 x 1.5	Stainless Steel	50	RFQ
A	84274	32 mm	Tanged	Right Hand	M16 x 1.5	Stainless Steel	50	RFQ
A	84374	40 mm	Tanged	Right Hand	M16 x 1.5	Stainless Steel	50	RFQ
A	84474	48 mm	Tanged	Right Hand	M16 x 1.5	Stainless Steel	50	RFQ

M3 x 0.5 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Finish	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84053	3 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-3CNW030	3 mm	4.075 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€179.62	100
B	A1084-3CN030	3 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
B	1084-3CN030S	3 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,831.40	1000
A	84153	4.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-3CNW045	4.5 mm	4.075 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€188.46	100
B	A1084-3CN045	4.5 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€153.38	100
B	1084-3CNW045S	4.5 mm	4.075 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€2,278.28	1000
B	1084-3CN045S	4.5 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,829.65	1000
C	R1084-3	4.5 mm	4.08 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€30.96	12
B	1084-3CN060S	6 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,948.73	1000
B	A1084-3CN060	6 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€172.52	100
A	84253	6 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-3CNW060	6 mm	4.075 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€190.22	100
B	A1084-3CN075	7.5 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€213.28	100
A	84353	7.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	84453	9 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-3CN090	9 mm	4.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€261.62	100

CHRISLYNN -

M11 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Tang Type	Thread Direction	Thread Size	Material	Pkg. Qty.
A	84067	11 mm	Tanged	Right Hand	M11 x 1.25	Stainless Steel	50	RFQ
A	84167	16.5 mm	Tanged	Right Hand	M11 x 1.25	Stainless Steel	50	RFQ
A	84267	22 mm	Tanged	Right Hand	M11 x 1.25	Stainless Steel	50	RFQ
A	84367	27.5 mm	Tanged	Right Hand	M11 x 1.25	Stainless Steel	50	RFQ
A	84467	33 mm	Tanged	Right Hand	M11 x 1.25	Stainless Steel	50	RFQ

M10 x 1.5 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84065	10 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84165	15 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	R1084-10	15 mm	12.23 mm	Tanged	Plain	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€42.36	12
C	A1084-10CN150	15 mm	12.23 mm	Tanged	Plain	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€176.25	100
A	84265	20 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84365	25 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84465	30 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ

M10 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84064	10 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84164	15 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	R4649-10	15 mm	12.38 mm	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€56.86	12
A	84264	20 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84364	25 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84464	30 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ

M10 x 1 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	R474-4	1/2"	0.494"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€32.37	6
B	84063	10 mm	-	Tanged	-	Fine	Right Hand	-	-	-	50	RFQ
B	84163	15 mm	-	Tanged	-	Fine	Right Hand	-	-	-	50	RFQ
A	R4255-10	15 mm	12.23 mm	Tanged	-	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€56.86	12
B	84263	20 mm	-	Tanged	-	Fine	Right Hand	-	-	-	50	RFQ
B	84363	25 mm	-	Tanged	-	Fine	Right Hand	-	-	-	50	RFQ
B	84463	30 mm	-	Tanged	-	Fine	Right Hand	-	-	-	50	RFQ

CHRISLYNN -

M9 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Tang Type	Thread Direction	Thread Size	Material	Pkg. Qty.
A	84062	9 mm	Tanged	Right Hand	M9 x 1.25	Stainless Steel	100	RFQ
A	84162	13.5 mm	Tanged	Right Hand	M9 x 1.25	Stainless Steel	100	RFQ
A	84262	18 mm	Tanged	Right Hand	M9 x 1.25	Stainless Steel	100	RFQ
A	84362	22.5 mm	Tanged	Right Hand	M9 x 1.25	Stainless Steel	100	RFQ
A	84462	27 mm	Tanged	Right Hand	M9 x 1.25	Stainless Steel	100	RFQ

M8 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Finish	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84060	-	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-8CN080	8 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€130.02	100
B	A1084-8CNW080	8 mm	10.075 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€166.52	100
A	84160	12 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
C	R1084-8	12 mm	10.08 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€41.29	12
B	1084-8CN120S	12 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,848.07	500
B	A1084-8CN120	12 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€133.76	100
A	84260	16 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	1084-8CN160S	16 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€581.79	500
A	84360	20 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-8CN200	20 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€250.96	100
A	84460	24 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-8CN240	24 mm	10.075 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€344.26	100

M8 x 1 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84059	8 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
A	84159	12 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
B	R4255-8	12 mm	9.98 mm	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€38.97	12
A	84259	16 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
A	84359	20 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
A	84459	24 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ

M7 x 1 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84058	7 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
A	84158	10.5 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
A	84258	14 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
B	A1084-7CN140	14 mm	8.925 mm	Tanged	Plain	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€204.14	100
A	84358	17.5 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ
B	A1084-7CN175	17.5 mm	8.925 mm	Tanged	Plain	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€240.37	100
A	84458	21 mm	-	Tanged	-	-	Right Hand	-	-	-	100	RFQ

M6 x 1 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Finish	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	A1084-6CNW060	6 mm	7.675 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€134.94	100
B	84057	6 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-6CN060	6 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€97.22	100
A	1084-6CN060S	6 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,554.53	1000
A	A1084-6CNW090	9 mm	7.675 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
A	A1084-6CN090	9 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€99.36	100
A	1084-6CN090S	9 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,197.35	1000
C	R1084-6	9 mm	7.68 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€31.39	12
B	84157	9 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	84257	12 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	1084-6CN120S	12 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€566.97	500
A	A1084-6CNW120	12 mm	7.675 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€151.51	100
A	A1084-6CN120	12 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€130.02	100
B	84357	15 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-6CN150	15 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€158.51	100
B	84457	18 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-6CN180	18 mm	7.675 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€172.67	100

M5 x 0.8 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Finish	Free Coil Dia.	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	A1084-5CNW050	5 mm	Dry Film Lubricant	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€128.53	100
B	84056	5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	1084-5CN050S	5 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,456.59	1000
A	A1084-5CN050	5 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€105.01	100
B	84156	7.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-5CN075	7.5 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€112.42	100
A	A1084-5CNW075	7.5 mm	Dry Film Lubricant	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
C	R1084-5	7.5 mm	-	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€30.79	12
A	1084-5CN075S	7.5 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,619.80	1000
B	84256	10 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	1084-5CN100S	10 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,549.19	1000
A	A1084-5CN100	10 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€130.02	100
B	84356	12.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-5CN125	12.5 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€158.51	100
B	84456	15 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-5CN150	15 mm	Plain	6.525 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€171.67	100

M4 x 0.7 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Finish	Free Coil Dia.	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	A1084-4CNW040	4 mm	Dry Film Lubricant	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€134.94	100
A	A1084-4CN040	4 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€114.98	100
B	84055	4 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	1084-4CN040S	4 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,003.49	1000
A	A1084-4CN050	5 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€268.98	100
C	R1084-4	6 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€32.71	12
A	A1084-4CN060	6 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€115.72	100
A	A1084-4CNW060	6 mm	Dry Film Lubricant	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
B	84155	6 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	1084-4CNW060S	6 mm	Dry Film Lubricant	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,819.23	1000
A	1084-4CN060S	6 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,275.80	1000
A	A1084-4CN080	8 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€130.02	100
A	1084-4CN080S	8 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,602.47	1000
B	84255	8 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	84355	10 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-4CN100	10 mm	-	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€156.18	100
B	84455	12 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	A1084-4CN120	12 mm	Plain	5.325 mm	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€172.67	100

CHRISLYNN -

M3.5 x 0.6 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Tang Type	Thread Direction	Thread Size	Material	Pkg. Qty.
A	84054	3.5 mm	Tanged	Right Hand	M3.5 x 0.6	Stainless Steel	100	RFQ
A	84154	5.3 mm	Tanged	Right Hand	M3.5 x 0.6	Stainless Steel	100	RFQ
A	84254	7 mm	Tanged	Right Hand	M3.5 x 0.6	Stainless Steel	100	RFQ
A	84354	8.8 mm	Tanged	Right Hand	M3.5 x 0.6	Stainless Steel	100	RFQ
A	84454	10.5 mm	Tanged	Right Hand	M3.5 x 0.6	Stainless Steel	100	RFQ

M2.5 x 0.45 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Finish	Tang Type	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84052	2.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-2.5CNW025	2.5 mm	3.45 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€128.53	100
B	1084-2.5CN025S	2.5 mm	3.457 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€4,395.01	1000
B	A1084-2.5CN025	2.5 mm	3.45 mm	-	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€107.70	100
A	84152	3.8 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-2.5CNW038	3.8 mm	3.45 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€136.92	100
B	A1084-2.5CN038	3.8 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€104.84	100
B	1084-2.5CNW038S	3.8 mm	3.45 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€2,676.01	1000
B	1084-2.5CN038S	3.8 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,514.31	1000
B	1084-2.5CN050S	5 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€1,023.22	1000
B	A1084-2.5CN050	5 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€112.45	100
A	84252	5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-2.5CNW050	5 mm	3.45 mm	Dry Film Lubricant	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
B	A1084-2.5CN063	6.3 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€141.41	100
A	84352	6.3 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
A	84452	7.5 mm	-	-	Tanged	-	Right Hand	-	-	-	100	RFQ
B	A1084-2.5CN075	7.5 mm	3.45 mm	Plain	Tanged	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€157.70	100

M12 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84069	12 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84169	18 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	R4649-12	18 mm	14.65 mm	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€43.12	6
A	84269	24 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84369	30 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
A	84469	36 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ

M14 x 1.25 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	R513-20	0.472"	11/16"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€31.81	6
A	R513-13	1/2"	11/16"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€49.90	6
A	R513-10	3/4"	11/16"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€70.06	6
B	84047	14 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	84147	21 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	84247	28 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	84347	35 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ
B	84447	42 mm	-	Tanged	-	-	Right Hand	-	-	-	50	RFQ

CHRISLYNN -

M12 x 1 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Tang Type	Thread Direction	Thread Size	Material	Pkg. Qty.
A	84046	12 mm	Tanged	Right Hand	M12 x 1	Stainless Steel	50	RFQ
A	84146	18 mm	Tanged	Right Hand	M12 x 1	Stainless Steel	50	RFQ
A	84246	24 mm	Tanged	Right Hand	M12 x 1	Stainless Steel	50	RFQ
A	84346	30 mm	Tanged	Right Hand	M12 x 1	Stainless Steel	50	RFQ
A	84446	36 mm	Tanged	Right Hand	M12 x 1	Stainless Steel	50	RFQ

1 1/2"-12 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84045	1 1/2"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84145	2 1/4"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
B	K1191-24	2 1/4"	1.727"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€87.75	1
A	84345	3 3/4"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84245	3"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84445	4 1/2"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ

1 1/2"-6 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84044	1 1/2"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84144	2 1/4"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
B	K1185-24	2 1/4"	1.749"	Tanged	Plain	Coarse	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€83.45	1
A	84344	3 3/4"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84244	3"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84444	4 1/2"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ

1 3/8"-12 Grade 304 Stainless Steel Free Running Helical Inserts

Style	Model	Insert Length	Free Coil Dia.	Tang Type	Finish	Thread Type	Thread Direction	Tensile Strength	Hardness	Price	Pkg. Qty.
A	84043	1 3/8"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84243	2 3/4"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84143	2.062"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
B	K1191-22	2.062"	1.593"	Tanged	Plain	Fine	Right Hand	200000 psi to 250000 psi	Rockwell C43-C50	€74.59	1
A	84343	3.438"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ
A	84443	4 1/8"	-	Tanged	-	-	Right Hand	-	-	-	5	RFQ

12...5 6
