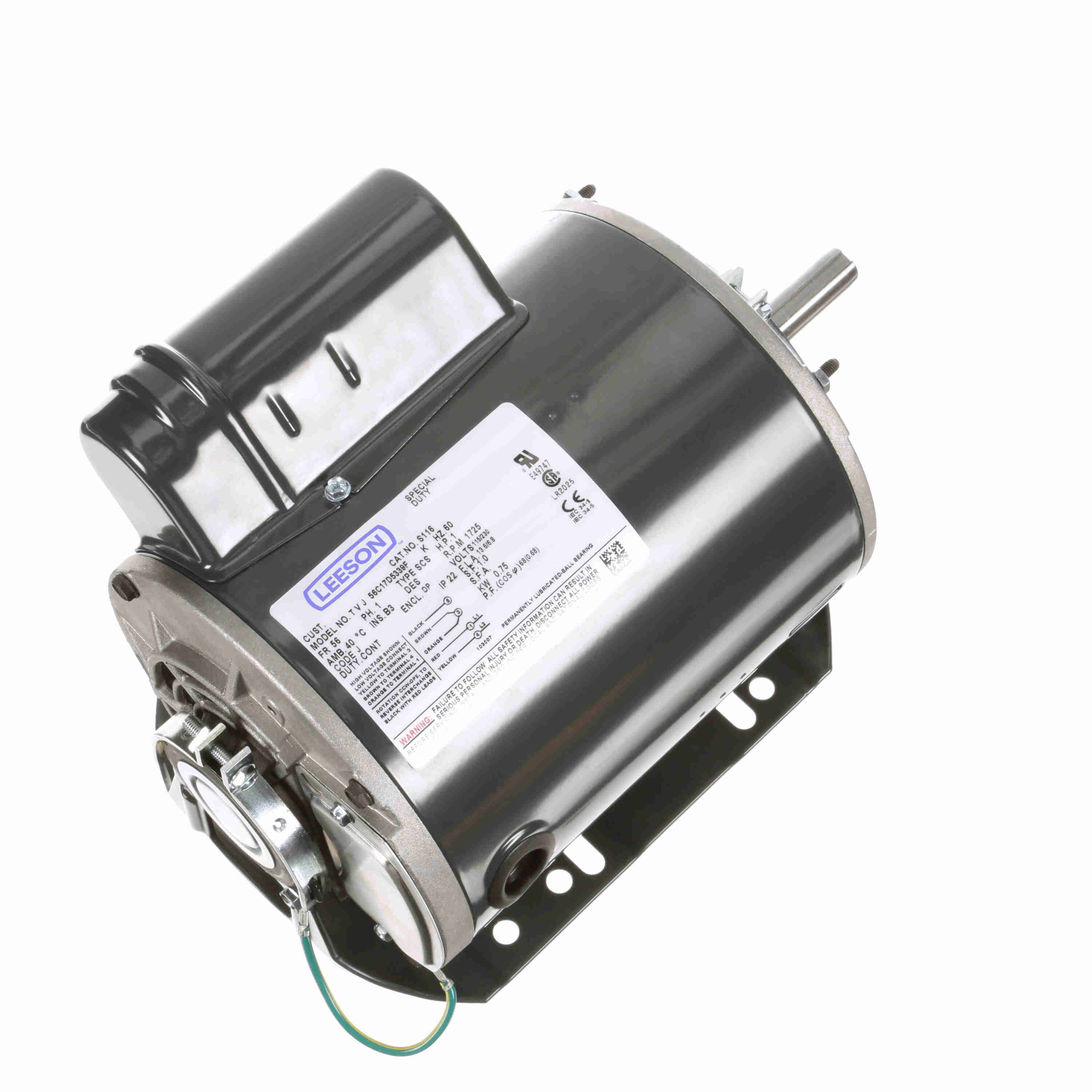

LEESON 056C17D5339 S116 / 56C17D5339F General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Thursday, Dec 18
€590.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 7/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Overall Length | 11 3/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 29 lbs. |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 24.43 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Shaft Length | Motor Design | Frame | Thermal Protection | Shaft Dia. | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048C17D2028 | 115/230V AC | 1/3 hp | 1 9/16" | Capacitor Start | 48 | None | 1/2" | Capacitor Start | €301.88 | |
 |
048C17D2029 | 115/230V AC | 1/3 hp | 1 9/16" | - | - | Automatic | 1/2" | Capacitor Start | €390.59 | |
 |
048S17D2105 | 115V AC | 1/3 hp | 1 7/8" | Split-Phase | 48Y | Automatic | 1/2" | Split Phase | €263.61 | |
 |
048S17D2106 | 115V AC | 1/2 hp | 1 7/8" | Split-Phase | 48Z | Automatic | 1/2" | Split Phase | €290.77 | |
 |
056C17D2060 | 115/230V AC | 3/4 hp | 2" | Capacitor Start | 56 | None | 5/8" | Capacitor Start | €441.40 | |
 |
056C17D2061 | 115/230V AC | 3/4 hp | 2" | Capacitor Start | 56 | Automatic | 5/8" | Capacitor Start | €458.70 | |
 |
056C17D2097 | 115/230V AC | 1/2 hp | 1 7/8" | Capacitor Start | 56 | None | 5/8" | Capacitor Start | €371.65 |
