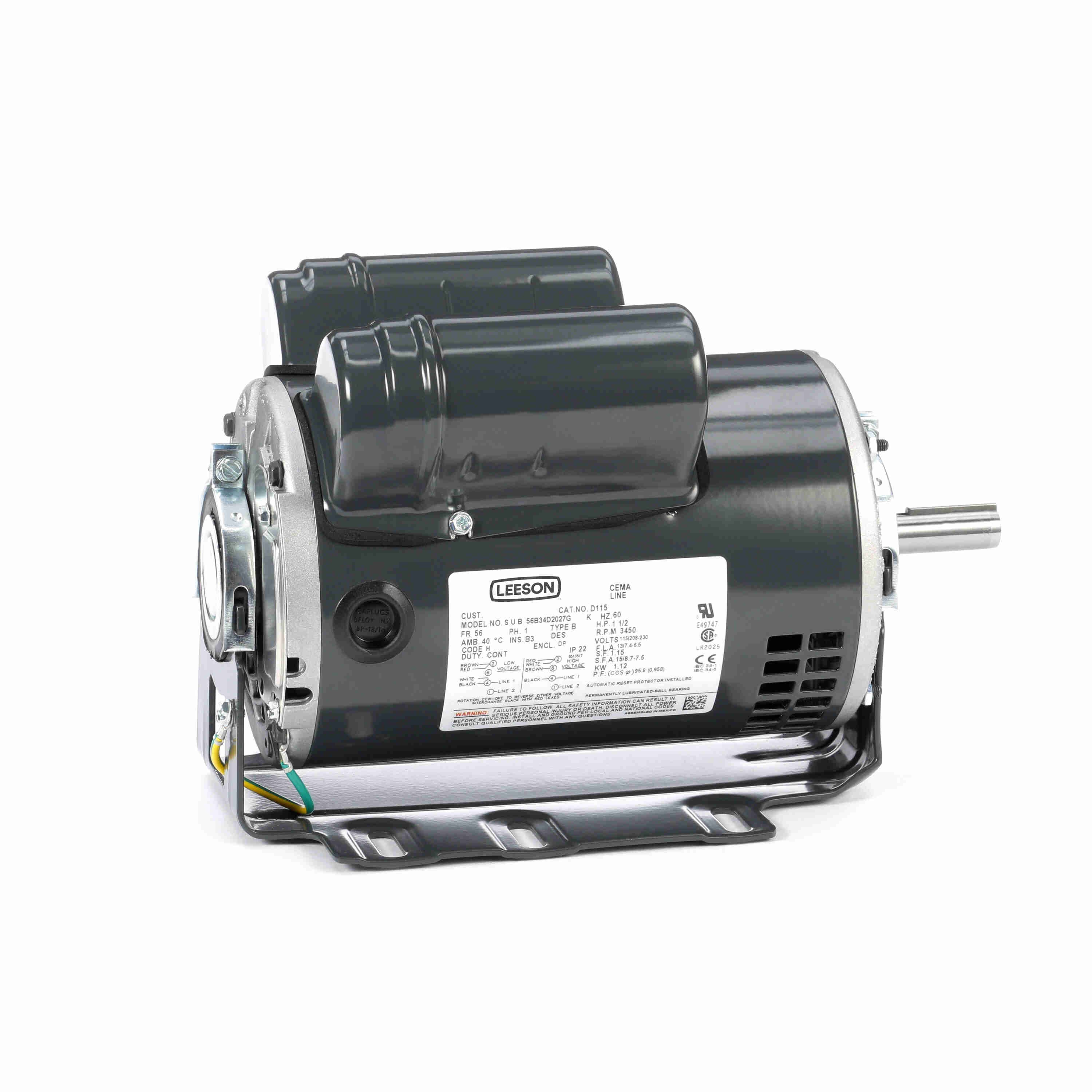

LEESON 056B34D2027 D115 / 56B34D2027G General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Thursday, Dec 18
10.00% off
€716.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | 78.7% |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13/7.4-6.5A |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 78.7% |
| Number Of Speeds | 1 |
| Overall Length | 11 3/4" |
| Phase | 1 |
| Power | 1.12 kW |
| Rpm | 3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Shaft Orientation | Horizontal |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Weight | 28 lbs. |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START CAP RUN
- KVA Code: H
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Shaft Length | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN3084X | 208-230/190-220V AC | 1 1/3 hp | Horizontal | 56H | 1 7/8" | Open Dripproof | 122°F | Auto | €1,289.06 | |
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €807.48 | |
 |
5KCR49PN3011X | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €948.86 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Automatic | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | None | €1,005.04 | |
 |
5KCR49SN3009X | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €1,273.25 | |
 |
056C17D2074 | 115/208-230V AC | 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €601.61 |
