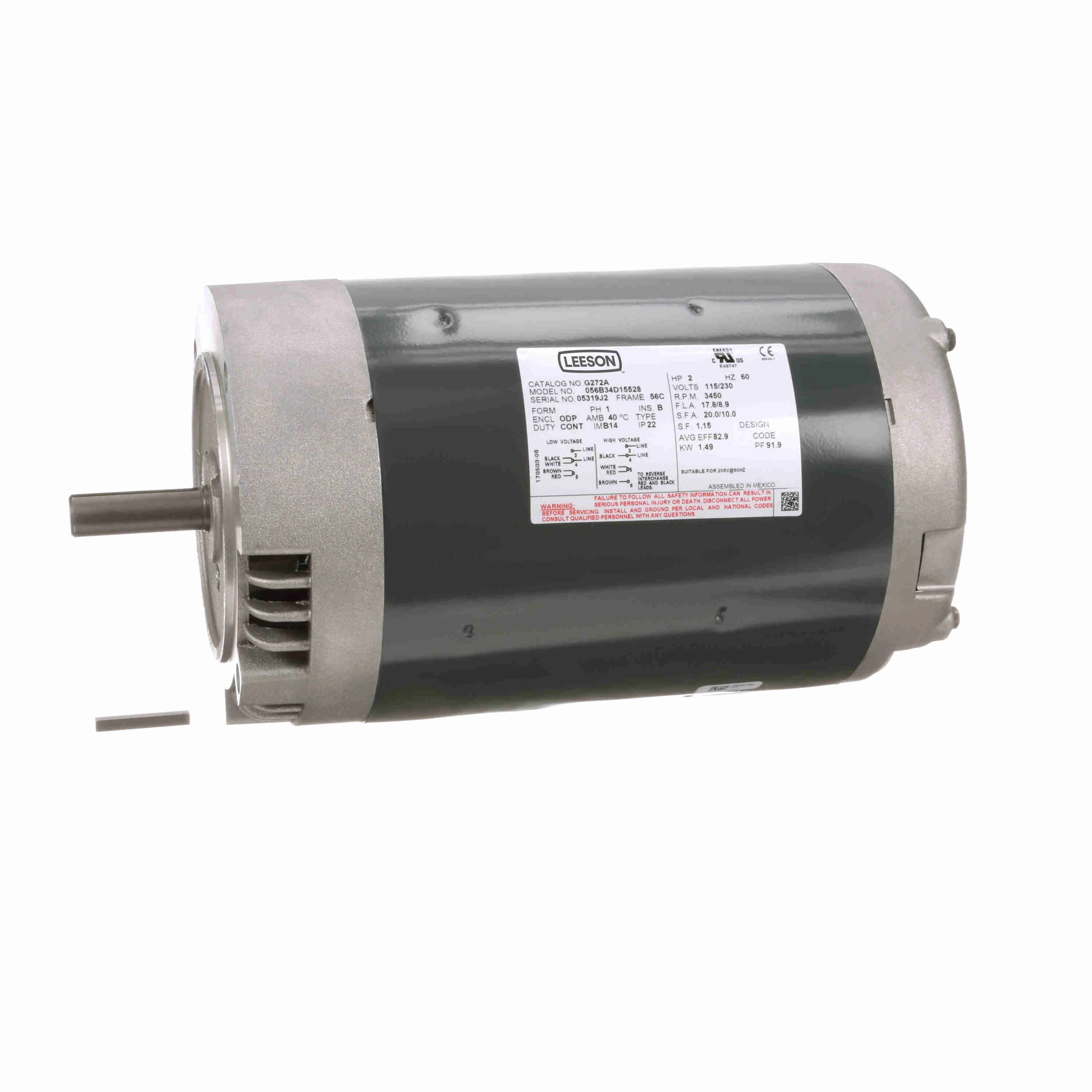

LEESON 056B34D15528 56B34D15528A / G272A General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Friday, Aug 28
€816.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps Rating | 19.1/9.5A |
| Bearing Type | Ball |
| Enclosure | DP |
| Enclosure Type | Odp (Open Drip Proof) |
| Frame | 56C |
| Frequency | 60 Hz |
| Height | 8 3/25" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Length | 13.18" |
| Material | Rolled Steel |
| Product Datasheet | leeson-g272a.pdf |
| Rotation | Selective CCW |
| Service Factor | 1.15 |
| Shaft Size | 0.63" x 1.88" |
| Speed | 3400-3600 RPM , 3450 RPM |
| Temp. Rating | 40°C |
| Torque Rating | 5.61 lbs.-ft. |
| Type | 2 Pole Continuous Duty |
| Voltage | 115-230V |
| Voltage Rating | 115/230V AC |
| Width | 10 1/4" |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
