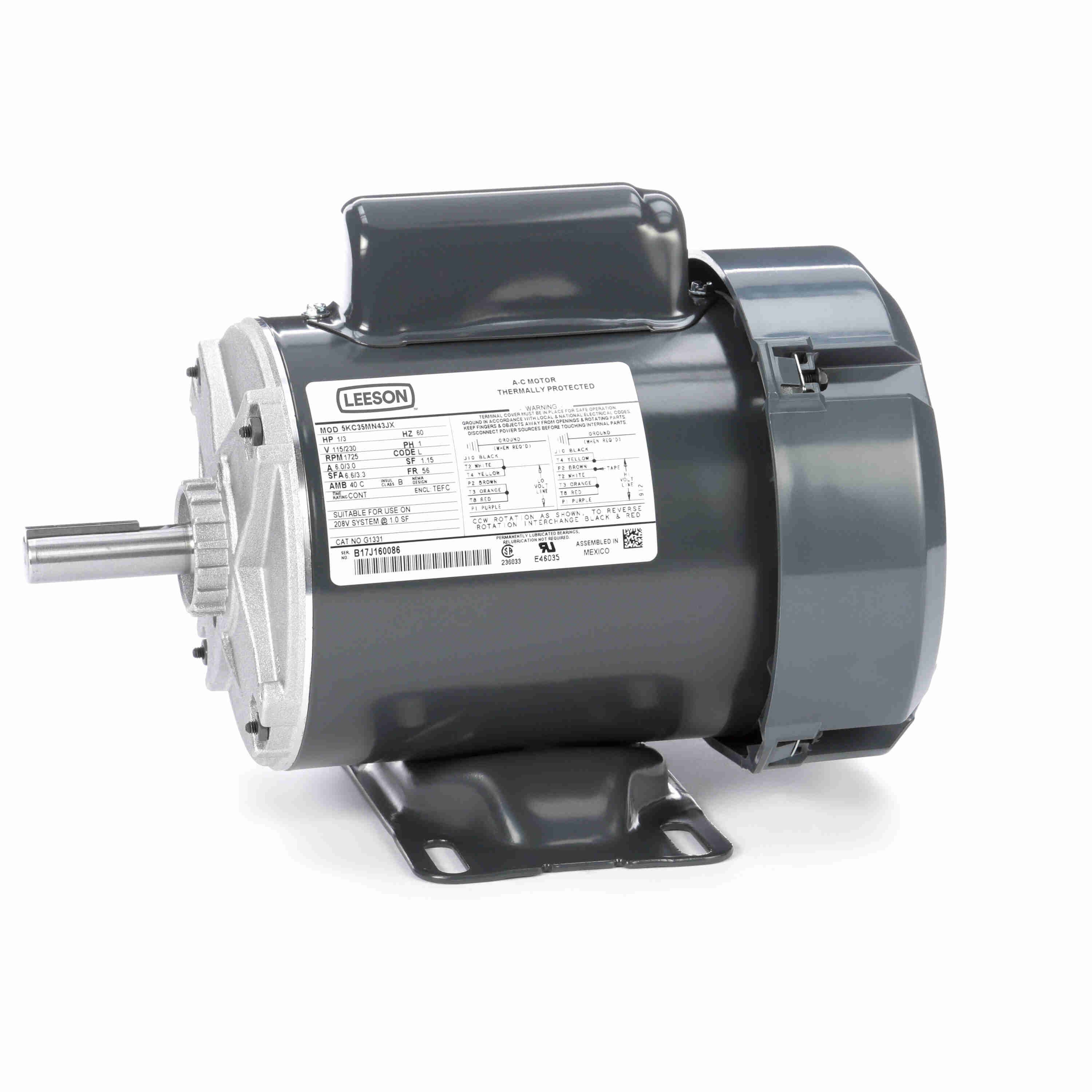

LEESON 5KC35MN43X G1331 / 5KC35MN43JX General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
€443.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 57.7% |
| Efficiency Group | Standard |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 57.7% |
| Number Of Speeds | 1 |
| Overall Length | 10 7/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 1 yr. |
| Weight | 20 lbs. |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 39.22 |
| Ship width (cm) | 25.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Full Load Amps | Motor Type | Service Factor | Hp | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48WN6066 | 115/230V AC | 1140 RPM | 10.6/5.3A | Capacitor Start/Run | 1.0 | 3/4 hp | 56 | 40°C | €985.29 | |
 |
5KC32GN19 | 115/230V AC | 1725 RPM | 5.4/2.7A | Capacitor Start | 1 | 1/4 hp | 56 | 40°C | €424.93 | |
 |
5KC35MN43 | 115/230V AC | 1725 RPM | 6/3A | Capacitor Start | 1.15 | 1/3 hp | 56 | 40°C | €477.93 | |
 |
5KC42GN0014 | 115/208-230V AC | 1725 RPM | 8.6/4.1-4.3A | Capacitor Start | 1.15 | 1/2 hp | 56 | 40°C | €536.75 | |
 |
5KC42GN0014X | 115/230V AC | 1725 RPM | 8.6/4.3A | Capacitor Start | 1.15 | 1/2 hp | 56 | 40°C | €624.60 | |
 |
5KC46PN0015X | 115/230V AC | 1725 RPM | 11/5.5A | Capacitor Start | 1 | 3/4 hp | 56 | 40°C | €734.52 | |
 |
5KC49UN6065 | 115/230V AC | 1140 RPM | 9.4/4.7A | Capacitor Start | 1.15 | 1/2 hp | 56 | 40°C | €826.02 |
