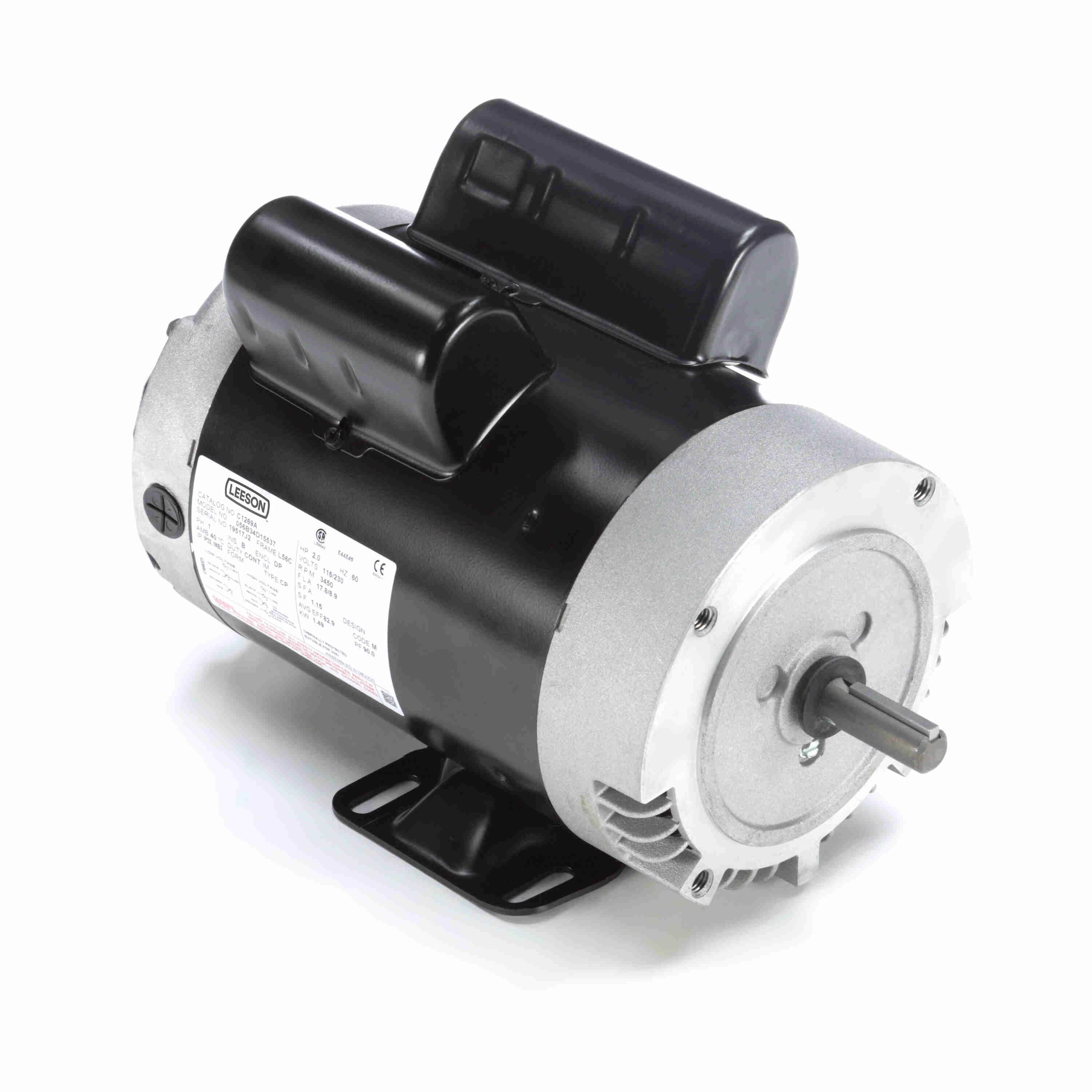

LEESON 056B34D15538 56B34D15538A / C1270A Electric Motor, 3HP, 3600 RPM, 1 Phase, 230V
Get it by Friday, Aug 28
€1,195.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Amps | 12.4A |
| Bearing Type | Deep Groove Ball |
| Dimension S | 13 3/4" x 6 1/2" |
| Enclosure | DP |
| Enclosure Type | IP22 Dp |
| Extension Shaft Dia. | 5/8" x 2.06" |
| Frame | 56 H |
| Frequency | 60 Hz |
| Height | 10" |
| Hp | 3 hp |
| Insulation Class | Class F |
| Length | 13" |
| Material | Rolled Steel |
| Mounting Type | Rigid Base |
| Product Datasheet | leeson-c1270a.pdf |
| Rotation | Selective CCW |
| Service Factor | 1.15 |
| Speed | 3400-3600 RPM , 3450 RPM |
| Temp. Rating | 40°C |
| Type | 2 Pole Continuous Duty Low Voltage |
| Voltage | 230V , 230V AC |
| Width | 9" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
