SCHNEIDER ELECTRIC General Purpose Relays
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1| Style | Model | Contact Form | Dc Contact Rating | Coil Voltage | Number Of Pins | Relay Mounting Style | Push-to-test Button | Number Of Pins/terminals | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

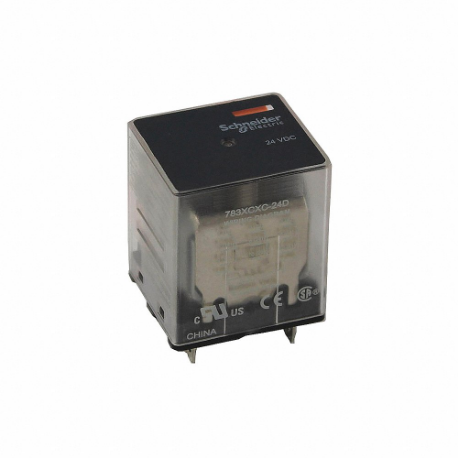

| A | 783XCXC-120A | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 120V AC | 11 | Socket | Lockable Push Test Button | 11 | E | - | RFQ
|
| B | 783XCXM4L-120A | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 120V AC | 11 | Socket | Lockable Push Test Button | 11 | E | €38.55 | |
| C | 783XCXC-24A | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | - | 11 | Socket | Lockable Push Test Button | 11 | E | €26.30 | |
| D | 8501KFR13V14 | 3PDT | 5A @ 30V | 24V AC | 11 | Surface Side Flange | No Test Button | 11 | - | - | RFQ
|
| E | 783XCXM4L-240A | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 240V AC | 11 | Socket | Lockable Push Test Button | 11 | E | €31.35 | |
| F | 783XCXC-24D | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V DC | 11 | Socket | Lockable Push Test Button | 11 | E | €30.40 | |
| G | 8501KUR13V20 | 3PDT | 5A @ 30V | 120V AC | 11 | Socket | No Test Button | - | C | €63.92 | |
| H | 783XCXM4L-12D | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 12V DC | 11 | Socket | Lockable Push Test Button | 11 | E | €27.58 | |
| I | 783XCXC-12D | 3PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 12V DC | 11 | Socket | Lockable Push Test Button | 11 | E | €30.40 | |
| J | 8501KPR13V24 | 3PDT | 5A @ 30V | - | 11 | Socket | No Test Button | 11 | - | €183.81 | |
| K | 783XCXM4L-24D | 3PDT | 12A @ 28V | 24V DC | 11 | Socket | Lockable Push Test Button | 11 | E | €38.55 | |
| L | 784XDXC-24A | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V AC | 14 | Socket | No Test Button | 14 | F | €32.91 | |
| M | 784XDXM4L-24A | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V AC | 14 | Socket | Lockable Push Test Button | 14 | F | €47.38 | |
| N | 784XDXC-12D | 4PDT | 12A @ 28V | 12V DC | 14 | Socket | No Test Button | 14 | F | €35.60 | |
| O | 784XDXM4L-24D | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V DC | 14 | Socket | Lockable Push Test Button | 14 | F | €47.38 | |
| P | 784XDXC-24D | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V DC | 14 | Socket | No Test Button | 14 | F | €38.01 | |
| Q | 784XDXC-240A | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | - | 14 | Socket | No Test Button | 14 | F | €31.61 | |
| R | 784XDXM4L-12D | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 12V DC | 14 | Socket | Lockable Push Test Button | 14 | F | €47.38 | |
| S | 784XDXM4L-240A | 4PDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 240V AC | 14 | Socket | Lockable Push Test Button | 14 | F | €38.51 | |
| T | 8501KPR12P14V14 | DPDT | 5A @ 30V | 24V AC | 8 | Socket | No Test Button | 8 | A | €116.58 | |
| U | 8501KPDR12P14V51 | DPDT | 5A @ 30V | 12V DC | 8 | Socket | No Test Button | 8 | A | €119.79 | |
| V | 782XBXC-24D | DPDT | 12A @ 28V | 24V DC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
| W | 782XBXM4L-120A | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 120V AC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
| X | 782XBXC-12D | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 12V DC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
| Y | 8501KPR12V36 | DPDT | 5A @ 30V | 12V AC | 8 | Socket | No Test Button | 8 | A | - | RFQ
|
| Z | 788XBXC-240A | DPDT | 16A @ 28V | - | 8 | Socket | Manual Push Test Button | 8 | C | €25.30 | |
| A1 | 782XBXC-240A | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 240V AC | 8 | Socket | No Test Button | 8 | D | €18.85 | |
| B1 | 782XBXM4L-24A | DPDT | 15A @ 28V | 24V AC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
| C1 | 782XBXM4L-24D | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V DC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
| D1 | 782XBXC-24A | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 24V AC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
| E1 | 782XBXM4L-12D | DPDT | 7.55A @ 28V (Nc), 15A @ 28V (No) | 12V DC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 | |
| V | 782XBXC-120A | DPDT | 12A @ 28V | 120V AC | 8 | Socket | No Test Button | 8 | D | €22.87 | |
| F1 | 782XBXM4L-240A | DPDT | - | 240V AC | 8 | Socket | Lockable Push Test Button | 8 | D | €31.25 |
