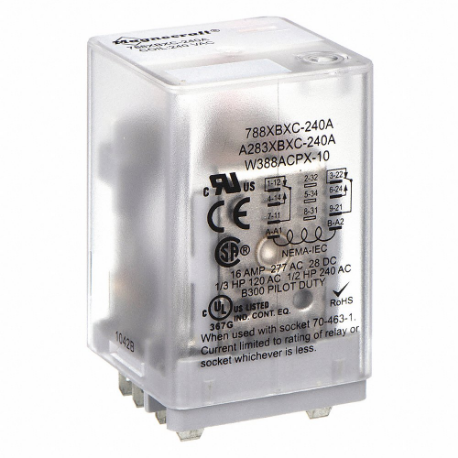

SCHNEIDER ELECTRIC 788XBXC-240A General Purpose Relay, Socket Mounted, 240 VAC, 8 Pins/Terminals, DPDT
240V AC
16A @ 277V
16A @ 28V
Get it by Tuesday, Jul 14
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Relay |
| Ac Contact Rating | 16A @ 277V |
| Contact Form | DPDT |
| Dc Contact Rating | 16A @ 28V |
| Hp @ 120v | 1/3 hp , 333/1000 hp |
| Hp @ 240v | 1/2 hp |
| Mfr. Series | 788R Series |
| Motor Rating | Yes |
| No. Of Pins | 8 |
| No. Of Pins/terminals | 8 |
| Push-to-test Button | Manual Push Test Button |
| Relay Mounting Style | Socket |
| Socket Code | C |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.48 |
| Country of Origin | CN |
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Electrical Connection Type | Coil Voltage | Socket Code | Electrical Operating Durability | Mechanical Operating Durability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2AF7 | - | - | - | - | 120V AC | - | - | - | €19.88 | |
| RPF2AP7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 230V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2BJD | DPDT | No Test Button | DIN Rail, Surface | Tab | 12V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BBD | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BB7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.59 | |
| RPF2BF7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 120V AC | - | 100000 | 5000000 | €19.59 |
