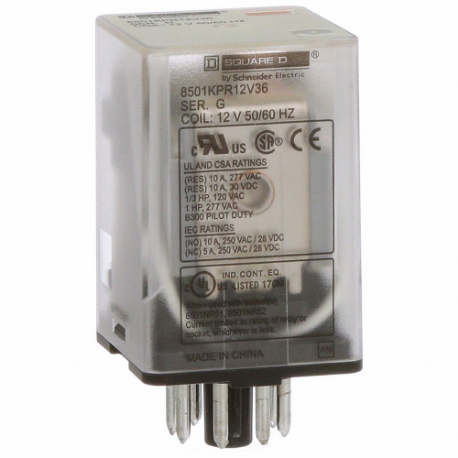

SCHNEIDER ELECTRIC 8501KPR12V36 General Purpose Relay, Socket Mounted, 10 A Current Rating, 12 VAC, 8 Pins/Terminals, DPDT
12V AC
10A @ 300V
5A @ 30V
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Relay |
| Ac Contact Rating | 10A @ 300V |
| Amps | 10A |
| Coil Voltage | 12V AC |
| Contact Form | DPDT |
| Dc Contact Rating | 5A @ 30V |
| Electrical Connection | Pin |
| Electrical Connection Type | Pin |
| Hp @ 120v | 1/3 hp , 333/1000 hp |
| Hp @ 240v | Not Rated |
| Mfr. Series | Square D 8501K Series |
| Motor Rating | Yes |
| No. Of Pins | 8 |
| No. Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-8501kpr12v36.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.76 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.56 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
