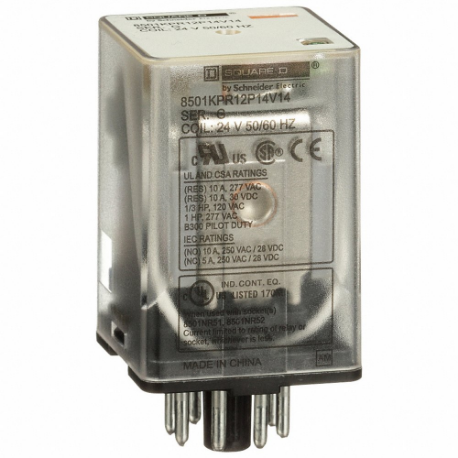

SCHNEIDER ELECTRIC 8501KPR12P14V14 General Purpose Relay, Socket Mounted, 10 A Current Rating, 24 VAC, 8 Pins/Terminals, DPDT
Item: CU2BHYModel: 8501KPR12P14V14Cross Ref: 335HV0
7 In Stock
24V AC
10A @ 300V
5A @ 30V
Ships within 2 days via
10.00% off
€104.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | General Purpose Relay |
| Ac Contact Rating | 10A @ 300V |
| Amps Rating | 10A |
| Coil Voltage | 24V AC |
| Contact Form | DPDT |
| Current Rating | 10A |
| Dc Contact Rating | 5A @ 30V |
| Electrical Connection | Pin |
| Electrical Connection Type | Pin |
| Hp @ 120v | 333/1000 hp |
| Hp @ 120v Ac | 1/3 hp |
| Hp @ 240v | Not Rated |
| Mfr. Series | Square D 8501K Series |
| Motor Rating | Yes |
| Number Of Pins | 8 |
| Number Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-8501kpr12p14v14.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Socket |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | LED Indicatormechanical Flag |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.78 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 3.48 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
